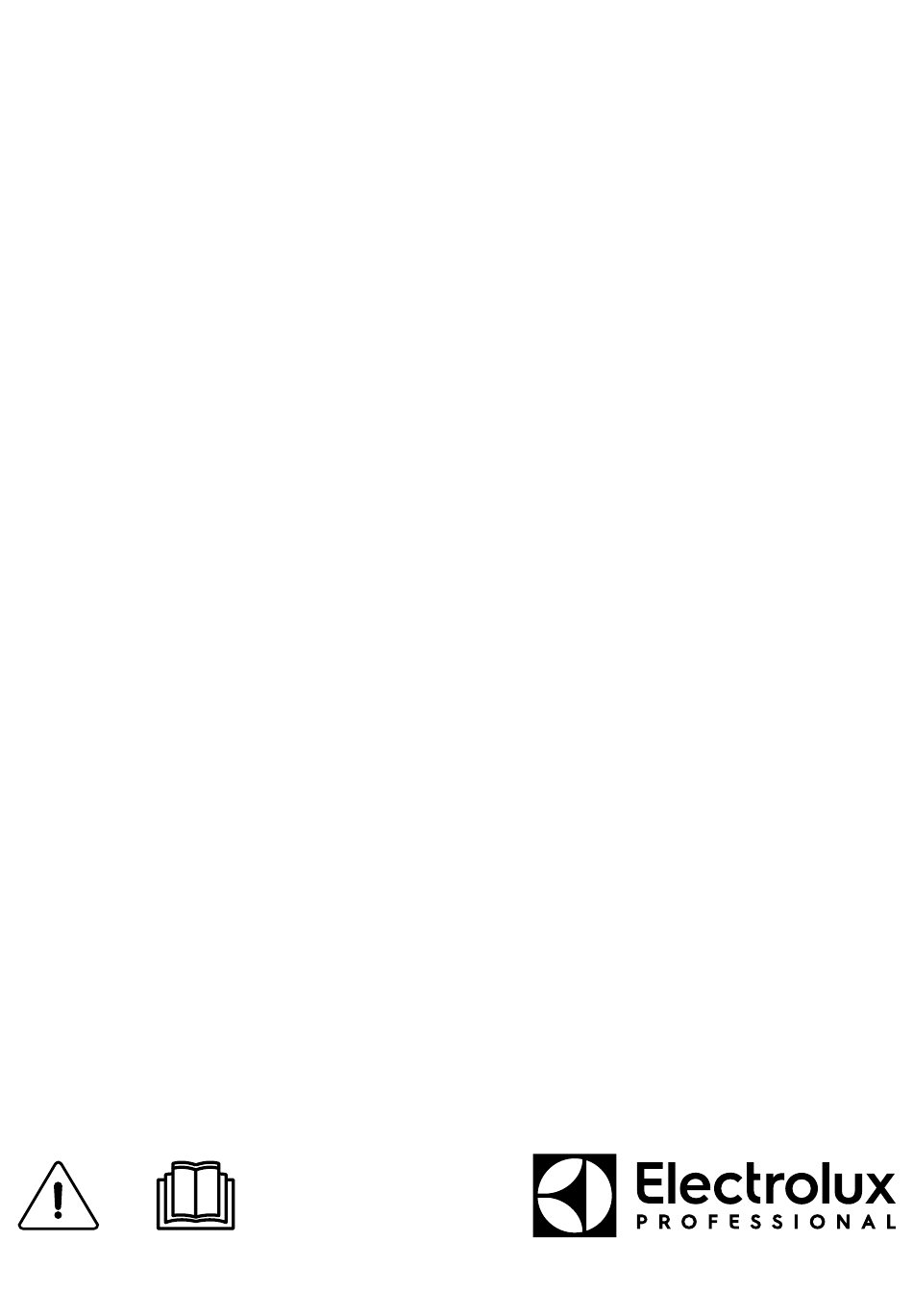

- Page 1 Installation manual Tumble dryer DE-635 Compass Pro Type N2... 438917567/US 2024.03.01...
-
Page 3: Fire Or Explosion Hazard
Safety WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance. - Page 4 Safety WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
- Page 5 Safety WARNING: The dryer is intended for use only with fabrics that have been washed with water. WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similarly textured rubberlike materials. WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE.
- Page 6 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
-
Page 7: Notice To Installer
Refer to complete installation instructions provided in manuals accompanying the machine. Contact Electrolux Professional Technical Support with any questions BEFORE installing this machine. Damage resulting from inadequate installation materials or improper installation... -
Page 8: Electrical Information
Safety Electrical Information It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the NATIONAL ELECTRIC CODE ANSI/NFPA NO. -
Page 9: Gas Information
Safety Gas Information It is your responsibility to have ALL plumbing connections made by a qualified professional to insure that the installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1 - both the latest edition. - Page 10 Safety Natural Gas If the pressure is too low, ignition failure and/or slow drying times may result. Excessively high supply pressure will result in erratic operation of the gas valves internal pressure regulator. Further information in section: Gas connection. Propane Gas Dryers made for use with propane gas have the gas valve pressure regulator blocked open, so that the gas pressure must be regulated upstream of the dryer.
-
Page 11: Table Of Contents
Contents Contents 1 Safety Precautions ..........................13 Additional safety precautions for gas heated tumble dryer ............15 General safety information......................15 Commercial use only........................15 Copyright ..........................15 Symbols..........................16 2 Warranty terms and exclusions......................17 3 Technical data...........................18 Drawing ..........................18 Technical data .........................19 Connections ..........................19 4 Setup ...............................20 General...........................20 Unpacking ..........................20 Recycling instruction for packaging ...................21... - Page 12 Contents The manufacturer reserves the right to make changes to design and component specifications.
-
Page 13: Safety Precautions
Installation manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 14 Installation manual • A-weighted emission sound pressure level at working stations: 70 dB(A).
-
Page 15: Additional Safety Precautions For Gas Heated Tumble Dryer
The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company. -
Page 16: Symbols
Installation manual 1.5 Symbols Caution Caution, hot surface Caution, high voltage Warning, risk of fire / flammable material Danger, crush hazard Read the instructions before using the machine... -
Page 17: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 18: Technical Data
Installation manual 3 Technical data 3.1 Drawing B(b) B(a) fig.7252 Operating panel Door opening, ⌀ 580 mm / ⌀ 22 13/16 inch Electrical connection Gas connection Exhaust connection Steam: in Steam: out B(a) B(b) 1210 1360 1690 inch 28 1/8 47 5/8 53 9/16 66 9/16... -
Page 19: Technical Data
Installation manual 3.2 Technical data Weight, net Drum volume litres 10.2 Drum diameter inch 26 3/4 Drum depth inch 30 5/16 Drum speed, medium load Rated capacity, filling factor 1:18 (Max. load) 16.1 35.5 Rated capacity, filling factor 1:22 (Recommended load) 13.2 29.1 Heating: Electricity... -
Page 20: Setup
Installation manual 4 Setup 4.1 General The principle work flow to setup or install this machine is as follows: 1. Unpacking 2. Positioning/siting, levelling or/and securing the machine. 3. Correcting the fresh air/air intake's size, exhaust duct's size and pipe(s) connections in considering a stand-alone machine or sharing exhaust duct. -
Page 21: Recycling Instruction For Packaging
Installation manual 4.3 Recycling instruction for packaging fig.X02402 Fig. Description Code Type Wrapping film LDPE 4 Plastics Corner protection PS 6 Plastics Cardboard packaging PAP 20 Paper Pallet FOR 50 Wood Screw FE 40 Steel FE 40 Steel Plastic bag PET 1 Plastics... -
Page 22: Siting
Installation manual 4.4 Siting The figure shows recommended distance to walls and/or other machines. D=C+B 1= Top view 2 = Side view on built in machine Y = For built-in machines it is recommended that the wall section Y is a removable finish piece. If so, E and F can be 0. fig.X00959A 5–500 mm / 3/16–19 11/16 inch (Min. -
Page 23: Securing The Machine
Installation manual Remount the panels. 4.5.1 Securing the machine To ensure steadiness of the machine it is important to fasten the machine to the foundation. Fasten the four fittings (A) to the foundation using four x M10 set screws (B). If the four fittings are not supplied, order kit No. -
Page 24: Evacuation System
Installation manual 5 Evacuation system 5.1 Air principle The fan creates low pressure in the machine, drawing air into the drum via the heating unit. The heated air passes through the garments and the drum holes. The air then flows out through a lint filter positioned below the drum. Then the air is evacuated through the fan and exhaust system. -
Page 25: Fresh Air
Installation manual 5.2 Fresh air For maximum efficiency and the shortest possible drying time, it is important to ensure that fresh air is able to enter the room from the outside in the same volume as that is blown out of the room. To avoid draught in the room it is important to place the air inlet behind the machine. -
Page 26: Shared Exhaust Duct
Installation manual 5.4 Shared exhaust duct It is recommended that each machine is connected to a separate exhaust duct. When several machines shall use the same exhaust duct the exhaust duct must increase after each machine. The recommended diameter increase progression is the one in the table. If several machines are installed on the same exhaust pipe, it is recommended to adjust the airflow on the machines when all machines are started and running a program with no heat. -
Page 27: Exhaust Dimensioning
Installation manual 5.5 Exhaust dimensioning It is important that the machine has correct air volume compared to each machines power. If the air flow is smaller or larger this will result in a longer drying period. The machine is designed to work with the maximum static back pressure according to the table in the technical data section. - Page 28 Installation manual Measure with a pressure measuring instrument (manometer) with an empty drum and with a program without heat. By opening and closing the damper (B) the pressure at the heating sensor (NTC sensor) (A) is either lowered or raised. The optimum drying performances are achieved when the measured static pressure correspond to the value listed in the following table.
-
Page 29: Steam Connection
Installation manual 6 Steam connection 6.1 Connecting the steam The steam supply must be cut off and must not be under pressure. Steam inlet • The branch pipes must be located at the top of the main steam pipe to prevent condensation in the steam. •... -
Page 30: Steam Calorifier
Installation manual Pipe insulation All pipes must be insulated in order to reduce risk of scalding. Insulation also reduces loss of heat to the surroundings. When ready • Leak test the system. • Clean the dirt collectors. 6.2 Steam calorifier Mount the steam calorifier Unpack the steam calorifier. -
Page 31: Gas Connection
Installation manual 7 Gas connection 7.1 Fasten the label Before installing the machine fasten the label “Read the user instructions” on the inside of the door in a suitable place and at the front panel. The label must have the correct country code, choose the correct label from the gas kit. Read the technical instructions before installing the appli-... - Page 32 Installation manual The machine and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2 psi (3.5 kPa). The machine must be isolated from the gas supply piping system by closing its individual manual shut-off valve dur- ing any pressure testing of the gas supply piping system at test pressures equal to or greater than 1/2 psi (3.5 kPa).
-
Page 33: Gas Installation
Installation manual 7.3 Gas installation The default gas appliances are built to run on either GNH (Natural gas) or LPG gas where the machine should be in- stalled at not over than 610 m (2001 ft) high altitude. Otherwise a kit for high altitude must be installed to the machine. For the kit No. -
Page 34: Table Of Pressure And Adjustment
Installation manual 7.4 Table of pressure and adjustment Gas category Heating power Inlet pressure Nozzle pressure Nozzle size (⌀ Air reducing/re- Label number (BTH/h) (WC") (WC") striction plate (mm) Natural 71700 4.00 Default Propane 71700 2.40 490375741 When a machine shall be installed or used on high altitude (2001 feet and higher) a kit for high altitude must be installed. -
Page 35: Test Run
Installation manual 7.5 Test run Note! Before test run the machine, ensure that the air flow/static back pressure has been adjusted accorded to the "Evacuation system" section. Adjust the air flow if necessary. • Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring branch and make sure the connection is tight to prevent air leakage. -
Page 36: Converting Instructions
Installation manual 7.6 Converting instructions • Disconnect the power to the machine. • Demount the back panel. • Demount the air restriction plate (1). • Demount the nozzle (2) and mount the new supplied nozzle. • Re-mount the air restriction plate. fig.X02894 •... -
Page 37: Data Label
ORFICE MM: D (0-200 FT ALTITUDE) MANIFOLD PRESSURE: C ” WC CLOTHES DRYER VOL: II For safety reasons use only genuine spare parts. Made in Sweden Electrolux Professional AB 341 80 Ljungby, Sweden WXXXXX 9868XXXXXX Product no.: 09XXX / 99XXXXX Serial no.:... -
Page 38: Electrical Connection
Installation manual 8 Electrical connection 8.1 Electrical installation The electrical installation may only be carried out by qualified personnel. Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break- er. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers are not necessary but is recommended. -
Page 39: Three-Phase Connection
Installation manual 8.3 Three-phase connection Demount the cover panel from the supply unit. Connect the earth and other wires as shown. 3NAC 3NAC When the installation is completed remount the cover panel and check: • That the drum is empty. •... -
Page 40: Electrical Connections
Installation manual 8.4 Electrical connections Electrical connections Heating alternative Main voltage Heating power Total power Recommended fuse ITCB A Electric heated 208-240V 1~ 9.0/13.5 9.8/14.3 50/80 208-240V 3~ 13.5/18.0 14.3/18.8 50/60 440V 3~ 13.5/18.0 14.3/18.8 25/30 480V 3~ 13.5/18.0 14.3/18.8 25/30 Gas heated/Steam heated 120-480V 1/3~... -
Page 41: Functions For I/O-Cards
Installation manual 8.5 Functions for I/O-cards The electrical schematic can be one of the following: 8.5.1 Central payment (2J) To start the machine from a central payment system, the payment system must transmit a start pulse 300–3000 ms (500 ms is recommended) with a minimum pause of 300 ms (500 ms is recommended) between two pulses. The start pulse can be either 230V or 24V. -
Page 42: Central Payment (2J)
Installation manual 8.5.2 Central payment (2J) The central payment or booking system shall transmit an active (high) signal to the machine once permission has been granted to start the machine. The signal must remain active (high) during drying. When the signal gets inactive (low) the machine will abort ongoing program and enter cooling. -
Page 43: External Coin Meter/Central Payment (2K)
Installation manual 8.5.3 External coin meter/Central payment (2K) The signal received from external coin meters must be a pulse between 300–3000 ms (500 ms is recommended) with a minimum pause of 300 ms (500 ms is recommended) between two pulses. fig.7438... -
Page 44: Price Reduction (2K)
Installation manual 8.5.4 Price reduction (2K) By maintaining an activated (high) signal on connection 5 ("Price red"), the price of the program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day. Whilst the signal re- mains active (high), the price of the program is reduced (or the time is increased on time programs), by the percent- age entered in the price programming menu. -
Page 45: Reversing The Door
Installation manual 9 Reversing the door Disconnect the power to the machine. Demount the hinges and remove the door. • Remove the upper hinge first. • Hold the door properly while removing the upper hinge. This is to avoid the lower hinge being bent by the door's load, which can affect the lower hinge to be broken in the future. - Page 46 Installation manual Move the door switch cable to the opposite side. Note! The plastic plug MUST be placed in the hole where the door switch cable was before. fig.7170 Loosen the nuts and move the two brackets to the opposite side. fig.7171...
- Page 47 Installation manual Move the door switch on the front panel. fig.7172 Move the four metal clips from the opposite side. fig.7174...
- Page 48 Installation manual Connect the door switch cable and push the cable in over the drum and pull it upwards. fig.7549 Remount the front panel. Ensure that the door switch cable does not get damaged when remounting the front panel.
- Page 49 Installation manual Remount the door on the opposite side. • Remount the lower hinge first. • Make sure there is no gap between the hinge and the front panel. • Fasten the hinge's screws with tightening torque 1.85-2.15 Nm / 1.36-1.58 lbf.ft. 1.85-2.15 Nm / 1.36-1.58 lbf.ft fig.X03503...
-
Page 50: At First Power Up
Installation manual 10 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. Follow the instructions on the display. •... -
Page 51: Function Check
Installation manual 11 Function check May only be carried out by qualified personnel. A function check must be made when the installation is finished and before the machine can be ready to be used. Whenever a repair has been made, a function check must be performed before the machine can be used again. Check the automatic stop of the machine •... - Page 52 Installation manual Ready to use If all tests are OK the machine is now ready to be used. If some of the tests failed, or deficiencies or errors are detected, please contact your local service organisation or dealer. The installer shall instruct the user on the operation of the appliance before leaving.
-
Page 53: Disposal Information
Installation manual 12 Disposal information 12.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 56 www.electroluxprofessional.com...
