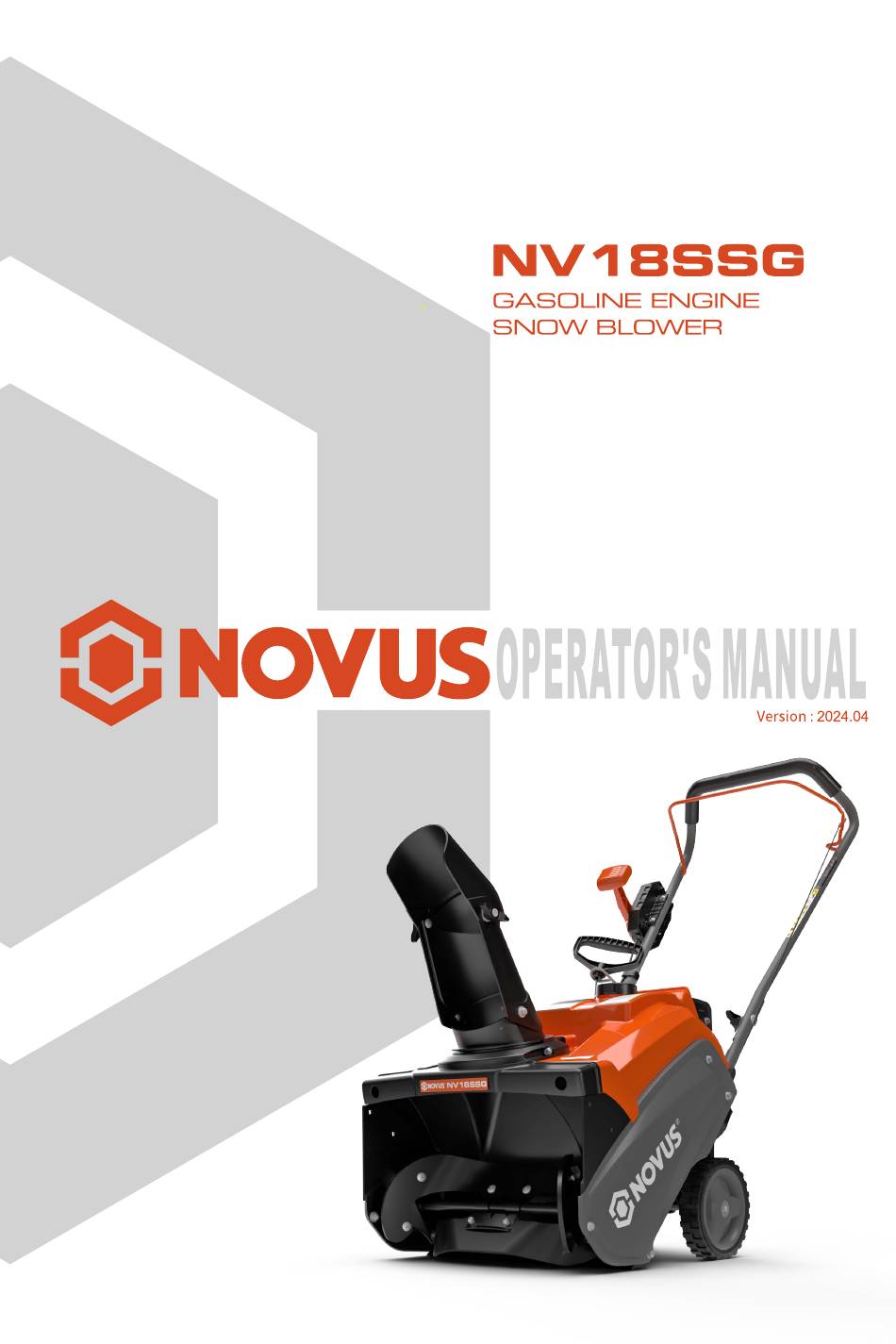

Novus NV18SSG Operator's Manual

Gasoline engine snow blower
Hide thumbs Also See for NV18SSG:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV18SSG and is the answer not in the manual?

Questions and answers

Summary of Contents for Novus NV18SSG

  • Page 2 Any changes made by operators or dealers on their own are forbidden. Any purposes other than snow blowing are not allowed. Please read the operator's manual carefully and ensure you understand the instructions before using the machine. Our company will not be responsible for any damages or injuries resulting from non-compliance with the above terms, and warranty services for this machine will be terminated accordingly.
  • Page 3 THANK YOU FOR PURCHASINGNOVUS SNOW THROWER. ● This manual provides information on operating and maintaining the NV18SSG snow blower, based on the latest product information available at the time of printing approval. ● We reserve the right to make amendments without prior notice and without incurring any obligations for subsequent versions.
  • Page 4: Safety Definitions

    Safety is paramount for both your own well-being and that of others. We have included crucial safety information in both the manual and on the machine itself. Please take the time to read it carefully. The safety information is designed to alert you to potential dangers that could affect you or others.
  • Page 5: Table Of Contents

    S A F E T Y I N S T R U C T I O N S ..........0 3 K N O W I N G Y O U R S N O W B L O W E R .
  • Page 6: S A F E T Y I N S T R U C T I O N

    SAFETY INSTRUCTIONS General Safety Instructions Use the machine correctly. Injury or death may result from incorrect use. Only use the machine for the tasks outlined in this manual. Do not use the machine for other tasks. Follow all the instructions in this manual. Adhere to the safety symbols and instructions.
  • Page 7: Safety Instructions For Operation

    • Make sure that you are at a minimum distance of 15 meters (50 feet) from other persons or animals before using the product, and ensure that people inadjacent areas are aware of your use of the product. • Refer to national or local laws. Under certain conditions, they may prevent or reduce the operation of the product.
  • Page 8 • Disengage power to the augers when transporting the machine or when not in use. • Only use attachments and accessories approved by the manufacturer of the machine, such as wheel weights, counterweights, or cabs. • Never operate the machine without good visibility or light. Always make sure your footing is secure and maintain a firm hold on the handles.
  • Page 9: Safety Devices On The Machine

    • Avoid wearing loose-fitting clothing that can get caught in moving parts. • Use approved protective gloves if necessary, such as when attaching, examining, or cleaning the blades. • Always use approved ear protection while operating the machine. Prolonged exposure to noise can lead to noise-induced hearing loss. Safety Devices on the Machine •...
  • Page 10: Safety Instructions For Maintenance

    • Refrain from refueling the engine in indoor areas where there is insufficient airflow, as it can lead to asphyxiation or carbon monoxide poisoning, resulting in injury or death. • Make sure the fuel tank cap is tightened securely to reduce the risk of fire. •...
  • Page 11: K N O W I N G Y O U R S N O W B L O W E

    KNOWING YOUR SNOW BLOWER Tool Purpose Snow blowers enable you to clear snow quickly and efficiently. Refer to the following diagrams to familiarize yourself with all the parts and controls of your snow blower. These components will be referenced later in the manual for assembly and operation instructions.
  • Page 12 Engine User Controls Close-Up Choke Choke...
  • Page 13 NV18SSG Engine Model Recoil Starting System Oil Capacity Fuel Consumption Rubber Scraper Bar Material Plastic Plastic Remote Turntable 190° Rotation / Right-Side Turntable P LI S I C Plastic Manual Manual Auger Assist...
  • Page 14 Contents Supplied Tools Supplied...
  • Page 15: Installing The Handles

    Do not plug in or turn on the tool until it is fully assembled according to the instructions. Familiarize yourself with the following procedures for handling and adjusting your tool. Failure to follow the safety instructions could result in serious personal injury. 1.Installing the Handles CAUTION: To install the upper handle onto...
  • Page 16: A S S E M B L

    2. Assembling the Chute 1. Remove the M6x16 round head square neck bolts (B), the spacers (C), and the locking nuts (D) from the chute base. 2. Install the chute (A) onto the chute base. 3. Use the M6×16 round head square neck bolts (B), the spacers (C), and the locking nuts (D) to secure the chute.
  • Page 17: O P E R A T I O

    OPERATION Before Operating the Product 1. Keep people and animals away from the work area. 2. Do daily maintenance as outlined in the Maintenance schedule on Page 19. 3. Make sure the ignition lead is correctly attached to the spark plug. 4.
  • Page 18 3. Adjusting the Chute Deflector The direction of the chute deflector is controlled by the chute rotation handle , located on the right side. 1. Rotate the chute rotation handle to adjust the discharge chute direction. 2. Rotate the chute rotation handle clockwise or counterclockwise to the right or left direction.
  • Page 19 3. Put the choke to the OFF position. 4. Press the primer 1-3 times to activate the booster pump. Use the booster pump for cold starts at low temperatures. CAUTION: Do not release the recoil starter handle quickly. Move it back to the start position slowly.
  • Page 20 5. Starting the Engine - Electric Start (if equipped) The product is equipped with a 230 or 120 Volt A.C. electric starter. Make sure that your house has a three-wire grounded system that meets the requirements on the nameplate. If you are uncertain, ask a licensed electrician. CAUTION: Use an extension cord recommended for outdoor use and not exceed 50 feet (15 meters) in length..
  • Page 21 6. Operating the Machine 1. Push the auger lever to engage the auger and throw snow. 7. Stopping the Machine CAUTION: Move the ON/OFF switch to the OFF position. Remove the ON/OFF key. 1. Release the Auger Lever. 2. Pull the engine key out to the STOP position.
  • Page 22: M A I N T E N A N C

    8.To Get a Good Result 1. Always run the engine at full throttle or near full throttle. 2. Always adapt the machine's speed to the snow situations to ensure that the machine throws snow evenly. 3. Remove snow immediately after it falls for easier and more efficient clearing.
  • Page 23 4.Engine Oil Replacement CAUTION: The engine oil is hot. Avoid skin contact with used engine oil. 1. Run the engine briefly to warm the oil for easier draining. 2. Put the machine on level ground. 3. Run the engine until it runs out of fuel. 4.
  • Page 24: T R O U B L E S H O O T I N

    6.To Clear a Clogged Chute Deflector Do not attempt to unclog the chute deflector until you have completed the following steps: 1. Release the auger engagement and the drive engagement at the same time. 2. Wait for 10 seconds to ensure that the augers have stopped completely. 3.
  • Page 25 Problem Possible Cause Solution Carefully review the starting procedures Other causes outlined in this manual. The fuel switch (if equipped) is in Turn the fuel switch to OPEN(ON) position. CLOSE(OFF) position. The spark plug wire is not connected. Connect the wire to the spark plug. Decrease the speed and the width of the The product throws too much snow.
  • Page 26: T R A N S P O R T A T I O N , S T O R A G E A N D D I S P O S A

    Solution Problem Possible Cause The chute deflector is clogged. Clean the chute deflector. Loss of traction drive / slowing of drive speed Remove the debris or the foreign Foreign objects clog the augers. objects from the augers. Loss of snow discharge or slowing of snow discharge Remove snow and ice build up.
  • Page 27: T E C H N I C A L D A T

    Disposal 1. Obey the local recycling requirements and relevant regulations. 2. Dispose of all chemicals, such as engine oil or fuel, at a service center or at an appropriate disposal facility. 3. When the product is no longer in use, discard it at a recycling location. TECHNICAL DATA Product Specifications 1.4L (0.37Gal) Unleaded Regular...
  • Page 28: Part S C A T A L O G U

    PARTS CATALOGUE Complete Assembly Components...
  • Page 29 Complete Assembly Components Ref No Material Code Description ………………… Auger Housing Parts ………………… Chute Parts ………………… Auger Parts ………………… Belt Cover Parts ………………… Engine Support Frame-Wheel Parts ………………… Engine-Belt Pulley Parts ………………… Handle Parts...
  • Page 30 Auger Housing Parts...
  • Page 31 Auger Housing Parts Ref No Material Code Description Remarks 2607100002-0001 Left Cover 3008000001-0001 Lock Nut 3417100002-0001 Washer ∅ 8 3402800002-0001 Bolt M8×50 2607100003-0001 Right Cover 360450032 Bolt ST4.8×6 GB/T845 361150001 Bolt M6×16 GB/T6560 2452500075-0003 Lower Handle 360120009 Nut M8 GB/T889.1-2015 361140001 Reed Nut ST4.8×20A QC/T330...
  • Page 32 1900300019-0001 Heat Insulation Board 1802500010-0001 Shock Absorber 361140002 Nut ST6.3×25B QC/T330 2449500014-0005 Engine Cove...
  • Page 33 Chute...
  • Page 34 Chute Ref No Material Code Description Remarks 2402600005-0001 Chute 3008000001-0005 Lock Nut 360640005 Big Washer8 GB/T96.1-2002 3403000003-0001 Bolt M8×2 2402700005-0001 Chute Deflector...
  • Page 35 Chute Parts...
  • Page 36 Chute Parts Ref No Material Code Description Remarks 2402800002-0001 Chute Base 360120005 Nut M6 GB/T889.1-2015 360640008 Big Washer6 GB/T96.1-2002 360350002 Bolt M6×16 GB/T12-1988 2467700001-0001 Chut...
  • Page 37 Auger Parts...
  • Page 38 Auger Parts Ref No Material Code Description Remarks 360250011 Bolt M6×20 GB/T 5783-2000 360620006 Spring Washer 6 GB/T 93-1987 360590001 Big Washer 6 GB/T 5287-2002 360720029 Bearing 6203-2RS/P6 GB/T 296-1994 2135500003-0002 Bearing Cover 360120005 Nut M6 GB/T889.1-2015 3611300004-0001 Bolt M6×20 2714100004-0001 Auger 2109100004-0006...
  • Page 39 Belt Cover Parts...
  • Page 40 Belt Cover Parts Ref No Material Code Description Remarks 2504200008-0003 Left-Side Plat 2446100005-0001 Belt Guide 360250126 Bolt M8×35 GB/T5783 2104700003-0001 Tension Pulley Bracket 360120005 Nut M6 GB/T889.1 3007800002-0001 Clutch Cable Front Bracket 360220039 Bolt M8×16 GB/T16674.1 3006000001-0001 Cable Pulley 1604200006-0001 Board 3013100001-0001 Cable Pulley Shaft M6×10...
  • Page 41 3400100020-0001 Washer 9×19×1.5 3403000002-0001 Bolt M8×20...
  • Page 42 Engine Support Frame-Wheel Parts Engine Support Frame-Wheel Parts Ref No Material Code Description Remarks 360940013 Retainerφ GB/T896 360640013 Big Washer1 GB/T96.1-2002 2803100008-0005 Wheel 7×1. 2803800008-0004 Bracke 2126200004-0001 Walking Shaft 360220039 Bolt M8×20 GB/T16674.1...
  • Page 43 Engine Belt Pulley Parts...
  • Page 44 Engine Belt Pulley Parts Ref No Material Code Description Remarks T010060001 W156FS/E Engin 360790003 Woodruff Key 4×6.5×1 GB/T1099.1-2003 2152300035-0001 Auger Driving Pulley 360640005 Big Washer8 GB/T96.1-2002 3418100006-0001 Bolt5/16-24×2...
  • Page 45: Handle Parts

    Handle Parts...
  • Page 46 Handle Parts Ref No Material Code Description Remarks 3419100001-0002 Bolt M4×16 360640019 Big Washer 4 GB/T96.1 3019000009-0006 Steering Handl 3021700001-0001 Steering Box Right Housing 3021800001-0001 Steering Driving Gear 3021900001-0002 Steering Driven Gear 3021600001-0001 Steering Box Left Housing 360120024 Nut M4 GB/T889.1 2402300179-0004 Handl...
  • Page 47: Year Limited Warranty

    2-Year Limited Warranty Terms and Conditions Novus products are warranted for two (2) years against defects in materials or workmanship when put to ordinary and normal consumer use; ninety (90) days for any other use. For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial residential use and does not include misuse, accidents or damage due to inadequate maintenance.
  • Page 48: Manufacturer's Warranty Coverage

    Novus recommends that you retain all receipts covering maintenance on your small off-road engine/equipment, but Novus cannot deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
  • Page 49 (b)(2). If any such part fail during the period of warranty coverage, it must be repaired or replaced by Novus or it’s contracted warranty provider according to subsection (4) below. Any such part repaired or replaced under the warranty must be warranted for a time not less than the remaining warranty period.
  • Page 50 (d) A list of all emissions warranty parts must be included with each new engine or equipment subject to this Article. The emissions warranty parts list shall include all parts whose failure would increase exhaust and evaporative emissions, and contains the following parts: EMISSIONS PARTS LIST Exhaust Emission...
  • Page 51 (1) Fuel Tank (2) Fuel Cap (3) Fuel lines(for liquid fuel and fuel vapors) (4) Fuel Line Fittings (5) Clamps (6) Pressure Relief Valves (7) Control Valves (8) Control Solenoids (9) Electronic Controls (10) Vacuum Control Diaphragms (11) Control Cables (12) Control Linkages (13) Purge Valves (14) Gaskets...
