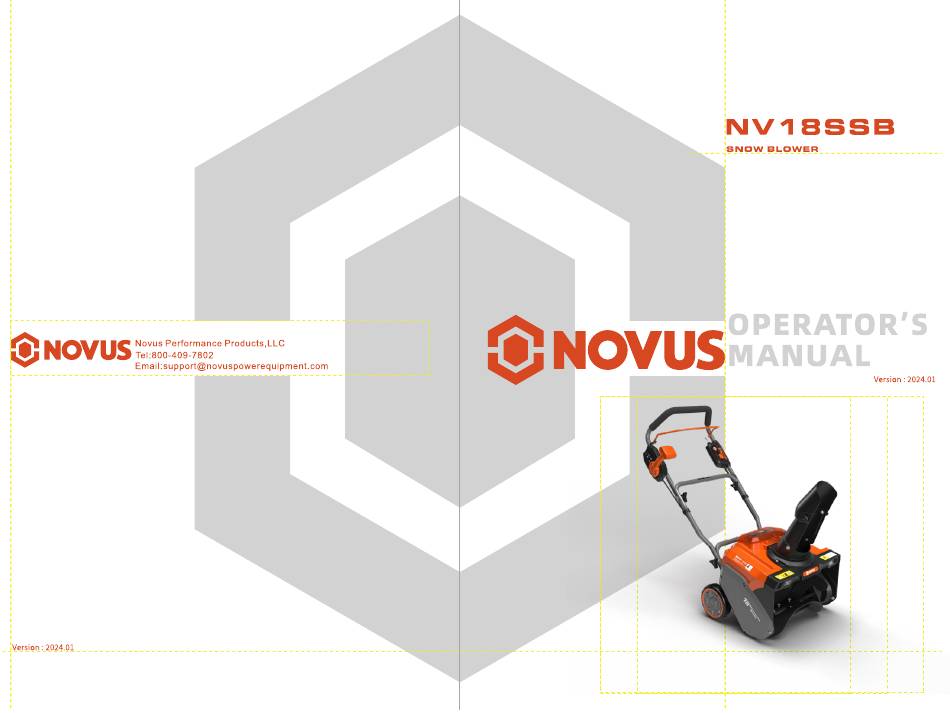

Novus NV18SSB Operator's Manual

Hide thumbs Also See for NV18SSB:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV18SSB and is the answer not in the manual?

Questions and answers

Related Manuals for Novus NV18SSB

Summary of Contents for Novus NV18SSB

  • Page 2 READ ALL INSTRUCTIONS! WARNING! ▲ Any changes by the operators or dealers at their own are forbidden. ▲ Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. ▲ Any damages or injuries caused by disobeying the above terms will absolve our company of any responsibilities, and warranty services for this machine will be terminated accordingly.

  • Page 3: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ................2 SAFETY SYMBOLS ..................8 KNOWING YOUR SNOW BLOWER ............12 ASSEMBLY ....................13 OPERATION ....................16 BATTERY PACK OPERATION AND MAINTENANCE ......19 CHARGER OPERATION AND MAINTENANCE ........21 MAINTAINANCE ..................24 TROUBLESHOOTING ................26 TECHNICAL PARAMETER ................ 27 PARTS CATALOG..................28 WARRANTY CARD...................42...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS This manual contains special messages to bring attention to potential safety concerns, product damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage. Keep this manual in a safe place for future and regular reference. WARNING! Read and understand all instructions on the machine and in the manual, including all safety alert symbols such as “WARNING”...
  • Page 5 machine. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords can increase the risk of electric shock. • When operating a machine outdoors, use an outdoor-rated extension cord. Using an outdoor-rated cord can reduce the risk of electric shock. •...
  • Page 6 facilities can reduce dust-related hazards. • Never leave your running snow blower unattended. Do not leave your snow blower until it has come to a complete stop. • When stepping backwards, be cautious about any obstacles beneath your feet or behind you avoid falling.
  • Page 7 General Safety Instructions • Keep the area of operation clear of all persons, particularly children. • Do not allow children to operate the snow blower. Do not allow adults to operate the snow blower without proper instruction. • Make sure that you always monitor a person, with decreased physical capacity or mental capacity, that uses the snow blower.
  • Page 8 Safety Instructions for Charger WARNING! To reduce the risk of electric shock or short circuit, follow the instructions below: • Before use, ensure the charger is in good condition. • Do not attempt to disassemble the charger. • Avoid connection between metal objects and the charger's output and input terminals.
  • Page 9 • Charge the battery pack before use using the correct charger and following manual instructions. Avoid long-term charging when not in use. • The charging time after the battery is fully discharged is approximately 1.5-2 hours. Avoid prolonged charging, as it may damage the battery. Charge the battery only when one of the LED indicators is on.

  • Page 10: Safety Symbols

    NOVUS power tools. Service • Service the machine with identical replacement parts by a qualified repair person to maintain safety. • Never service damaged battery packs. Service should be performed only by the manufacturer or authorized providers to ensure safety.
  • Page 11 Carefully read and understand all instructions in the operator’s manual before using this product. Wear gloves. Wear hearing protection and eye protection. Thrown objects can ricochet and result in personal injury or property damage. Keep bystanders a safe distance from the machine. Keep children out of work area and under watchful care of a responsible adult.
  • Page 12 Symbols on the Battery Pack and Charger WARNING! Improper or careless use of chargers or batteries can be extremely dangerous and may result in serious accidents or personal injury. Therefore, it is crucial to read and fully understand all the instructions. Do not expose to rain or wet conditions.
  • Page 13 Store the battery pack in a temperature range of 14°F(-10°C) ~ 104°F(+40°C). The temperature of the battery pack is kept at 32°F(0°C)~113°F(45°C ) when charging, and -4°F(-20°C)~167°F(75°C ) when discharging.

  • Page 14: Knowing Your Snow Blower

    KNOWING YOUR SNOW BLOWER ① ⑬ ② ③ ④ ⑫ ⑤ ⑪ ⑥ ⑩ ⑦ ⑨ ⑧ ⑯ ⑮ ⑭ 1.Upper Handle 9.Auger Housing Use the illustrations 2.Bail Lever 10.Auger Assembly 3.Chute-Rotation Handle 11.Chute Base to become familiar 4.Handle Connecting Pipe 12.Battery Compartment Cover with the locations and 5.Lower Handle...

  • Page 15: Assembly

    If any parts are NOVUS products must exclusively utilize damaged or missing, please contact the dealer NOVUS battery packs and can only be charged immediately for assistance. using NOVUS chargers (WMBC54). Each component - battery packs, chargers, and...
  • Page 16 Installing the Handle Connection Pipe Installing the Upper Handle WARNING! Do not put in the • Place the insulating pads in the two holes safety lock or battery pack until corresponding to the handle connecting all parts are assembled. pipe as shown in the picture. •...
  • Page 17 the nuts. Self-Locking Button WARNING! Do not put in the Battery Compartment Cover safety lock or battery pack until all parts have been assembled. Security Lock Discharge Chute Assembly Hex Lock Nut Chute Base Washer Round Head Square Neck Bolt WARNING! Make sure to read, understand and follow all...

  • Page 18: Operation

    pack. Unused battery packs must be kept away from metal objects such as nails, coins, jewelry, etc. Do not attempt to disassemble or smash the battery pack. Bail Lever Taking Out the Battery Pack Start Button • Release the bail lever to stop the snow blower.
  • Page 19 bail lever and other parts to by default. break. • Manually press the shift button to switch between high and low speed gears. Upper Handle Bail Lever Chute Deflector Shift Button LED Light Chute-Rotation Handle Slope Operation Adjusting the Chute •...
  • Page 20 Replacing the Auger Blades remove the left panel. WARNING! • Remove the old V-belt from the driving Wear thick gloves pulley and driven pulley. to protect your hands during • Put one end of the new V-belt on the any maintenance or cleaning of driving pulley.

  • Page 21: Battery Pack Operation And Maintenance

    remove the left panel. the abnormal status of the battery pack. • Remove the V-belt from the driving pulley • When a battery pack is used and the pack and driven pulley. button is pressed, the battery pack • Remove the screw that secures the driven indicator lights up constantly for 5 pulley on the auger shaft, and remove the seconds.
  • Page 22 Please verify if the battery pack Battery Capacity Ah Overvoltage voltage matches protection the voltage indicated on the label. Press the battery The battery Please contact indicator pack is NOVUS customer button, and damaged. service. all four lights go out.

  • Page 23: Charger Operation And Maintenance

    (refer to the manual for Batteries need to be fully charged before first use. instructions). If the different pack The NOVUS battery pack must be charged using also show "defective" , it may the appropriate NOVUS charger only. When...
  • Page 24 charger will stop charging and switch to 32°F(0°C) and 104°F(40°C). standby mode. There is no time limit for • Chargers should only be stored in how long the battery pack can remain on enclosed and dry spaces. the charger. It is recommended to remove •...
  • Page 25 Battery Pack Indicator Charger Model Action Status Status Status Normal charging No further action should be Flashing Chargeable (cooling fan taken until the battery pack is green spinning) fully charged. Charging Equalization on No further action should be Flashing Balanced (cooling fan not taken until the charger is green...

  • Page 26: Maintainance

    Technical Parameters WARNING! Avoid contact between brake fluid, gasoline, Technical Parameters petroleum-based materials, Charger Model WMBC54U Rated Voltage V 110 ～ 130 and plastic components. Frequency Hz Chemicals may damage plastic Electric Current A Fuse A parts, rendering them unusable. Battery Charging Number...
  • Page 27 children. To avoid personal injury, • Do not damage the handle power cord. explosions, electric shock, or environmental pollution: Environmentally-Friendly Disposal of • Cover the battery pack Waste Batteries terminals with tape. The battery pack used in this snow blower •...

  • Page 28: Troubleshooting

    Press the battery pack firmly until starting, or it stops inserted into the snow blower. you hear a "click". during operation. Contact NOVUS customer service Battery pack is damaged. or replace the battery pack. Allow the battery pack to cool Battery pack temperature is naturally before reinserting it into high.

  • Page 29: Technical Parameter

    Remove the battery pack and Auger shaft is bent. inspect the auger shaft for damage. TECHINICAL PARAMETER Technical Parameters Snow Blower Models NV18SSB Voltage (V) No-Load Speed RPM 1900-2200RPM Net Weight (kg) 23kg Handle Fixing Method Quick Tightening Bolt...

  • Page 30: Parts Catalog

    PARTS CATALOG PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 3611200004-0001 Phillips Flanged Self-Tapping Screw ST6.3×25 2301600003-0001 Light Bracket 2300500010-0001 LED Light (Right) 2302500001-0001 LED Light Right Shield 360450039 Phillips Pan Head Self-Tapping Screw ST2.9×9.5 2302400001-0001 LED Light Left Shield 2300500009-0001 LED Light (Left)
  • Page 31 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 3419100001-0002 Non-Standard Phillips Pan Head Self-Tapping Screw M4×16 2615100005-0001 Battery Pack Socket Clamping Plate 2611900005-0001 Battery Pack Socket 3415900008-0001 Compression Spring 2219100001-0001 Spring Cap 2218500001-0003 Battery Compartment 2205100006-0001 Rocker Switch 2207000001-0001 Switch Extension Cable 2215800012-0001 Lithium Battery Pack Assembly 360410060 Phillips Pan Head Screw M3×10...
  • Page 32 PARTS CATALOG Ref. No. Material Cod Description 2218800001-0001 Right Safety Lock Plug 2218700001-0001 Left Safety Lock Plug 360010034 Type 1 Hex Nut M3 2219500001-0001 Safety Lock Insert 3012500005-0001 Lock Buckle 2218900001-0001 Upper Safety Lock Socket 2219000001-0001 Lower Safety Lock Socket 2220000001-0001 Safety Lock Connecting Cable 2209600009-0001 Battery Connection Cable 2216600017-0001 Charger Assembly (US Standard)
  • Page 33 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 3419100001-0002 Non-Standard Phillips Pan Head Self-Tapping Screw M4×16 360640019 Large Washer Class A 4 3021700001-0001 Right Steering Box Housing 3021900001-0002 Steering Driven Gear 3021600001-0001 Left Steering Box Housing 3021800001-0001 Steering Drive Gear 360410061 Phillips Pan Head Screw M4×40 3009100029-0001 Steering Cable L=950...
  • Page 34 PARTS CATALOG Ref. No. Material Cod Description 360120024 Type 1 Non-Metallic Insert Hex Lock Nut M4 3022000001-0001 Steering Damper Block 3019000009-0006 Steering Handle “★” means wear parts.
  • Page 35 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 2466400001-0002 Upper Handle 360120003 Type 1 Non-Metallic Insert Hex Lock Nut M5 2425700012-0001 Limit Plate 360380095 Socket Head Cap Screw M5×30 2466500001-0001 Limit Positioning Pad 1706100001-0003 Bail Lever 3000500027-0001 Shock Absorbing Grip 3022100005-0001 Starting Cable ★8 3419100001-0002 Non-Standard Phillips Pan Head Self-Tapping Screw M4×16...
  • Page 36 PARTS CATALOG Ref. No. Material Cod Description 2220100001-0001 Switch Bus Cable 2219300001-0001 Switch Spacer 2219200001-0002 Start Button Locking 2218200001-0001 Upper Switch Box Housing 3415900009-0001 Compression Spring 2214500004-0003 Start Button 2218300001-0001 Lower Switch Box Housing 2219700001-0001 Switch Pull Handle 2219800001-0001 Power Switch 2212900009-0001 LED Light Board 360450039 Phillips Pan Head Self-Tapping Screw ST2.9×9.5...
  • Page 37 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 360250011 Full Thread Hex Head Bolt M6×20 360620006 Standard Spring Washer 6 360590001 Extra Large Washer Class C 6 360720029 Deep Groove Ball Bearing 6203-2RS 2135500003-0002 Bearing End Cap 2714100004-0001 Auger ★6 3611300004-0001 Phillips Pan Head Screw M6×16 360120005...
  • Page 38 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 360120009 Type 1 Non-Metallic Insert Hex Lock Nut M8 2466300001-0001 Right Support Plate 2601300006-0001 Auger Housing 2206000017-0001 Drive Motor 2466200001-0001 Left Support Plate 360620003 Standard Spring Washer 5 360380092 Socket Head Cap Screw M5×8 2106600079-0001 Drive Pulley 2504200011-0002 Left Side Panel 3611200004-0001 Phillips Flanged Self-Tapping Screw ST6.3×25...
  • Page 39 PARTS CATALOG Ref. No. Material Cod Description 360300007 Hexagon Flanged Bolt, Enlarged Series, Class B, M6×16 360590001 Extra Large Washer Class C 6 360620006 Standard Spring Washer 6 360250011 Full Thread Hex Head Bolt M6×20 2157100001-0001 Poly V-Belt ★15 2109200037-0001 Driven Pulley 361150001 Phillips Pan Head Self-tapping Locking Screw M6×16 361140001...
  • Page 40 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 2402700005-0001 Chute Deflector 3403000003-0001 Square Neck Bolt M8×25 360640005 Large Washer Class A 8 3022200001-0001 Chute Deflector Handle Knob 2402600005-0001 Discharge Chute 2402800002-0001 Chute Base 360120005 Type 1 Non-Metallic Insert Hex Lock Nut M6 360640008 Large Washer Class A 6 360350002...
  • Page 41 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 361140002 Spring Clip Nut ST6.3×25B 2466000001-0003 Upper Housing 360450032 Phillips Pan Head Self-tapping Screw ST4.8×16 3411200013-0001 Positioning Pin 2448600018-0001 Compression Spring 2451800002-0001 Torsion Spring 2218600001-0003 Battery Compartment Cover...
  • Page 42 PARTS ATLAS PARTS CATALOG Ref. No. Material Cod Description 2809500001-0003 Hubcap 2803100016-0003 Walking Wheel 360220163 Hex Flange Bolt,Small Series,M8×45 361140002 Spring Clip Nut ST6.3×25B 3008000003-0001 Handle Knob 3611200004-0001 Phillips Flanged Self-Tapping Screw ST6.3×25 2452500081-0003 Lower Handle 2400600002-0001 Self-Locking Clamp 2402400008-0003 Handle Connecting Pipe 2213800002-0001 Insulating Sheet...
  • Page 43 PARTS CATALOG Ref. No. Material Cod Description 3402800002-0001 Handle Lock Bolt M8×50 360120009 Type 1 Non-Metallic Insert Hex Lock Nut M8 3417100002-0001 Curved Washer φ8 3419100001-0002 Non-Standard Phillips Pan Head Self-Tapping Screw M4×16 2202200009-0001 Cable Clamp 360940013 Open Retaining Ring 8 360640013 Large Washer Class A 10 2126200012-0001 Walking Shaft...

  • Page 44: Warranty Card

    2-Year Limited Warranty Terms and Conditions Novus products are warranted for two (2) years against defects in materials or workmanship when put to ordinary and normal consumer use; ninety (90) days for any other use. For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial residential use and does not include misuse, accidents or damage due to inadequate maintenance.
