NV18SSB SNOW BLOWER
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the NV18SSB and is the answer not in the manual?

Questions and answers

Related Manuals for Novus NV18SSB

Summary of Contents for Novus NV18SSB

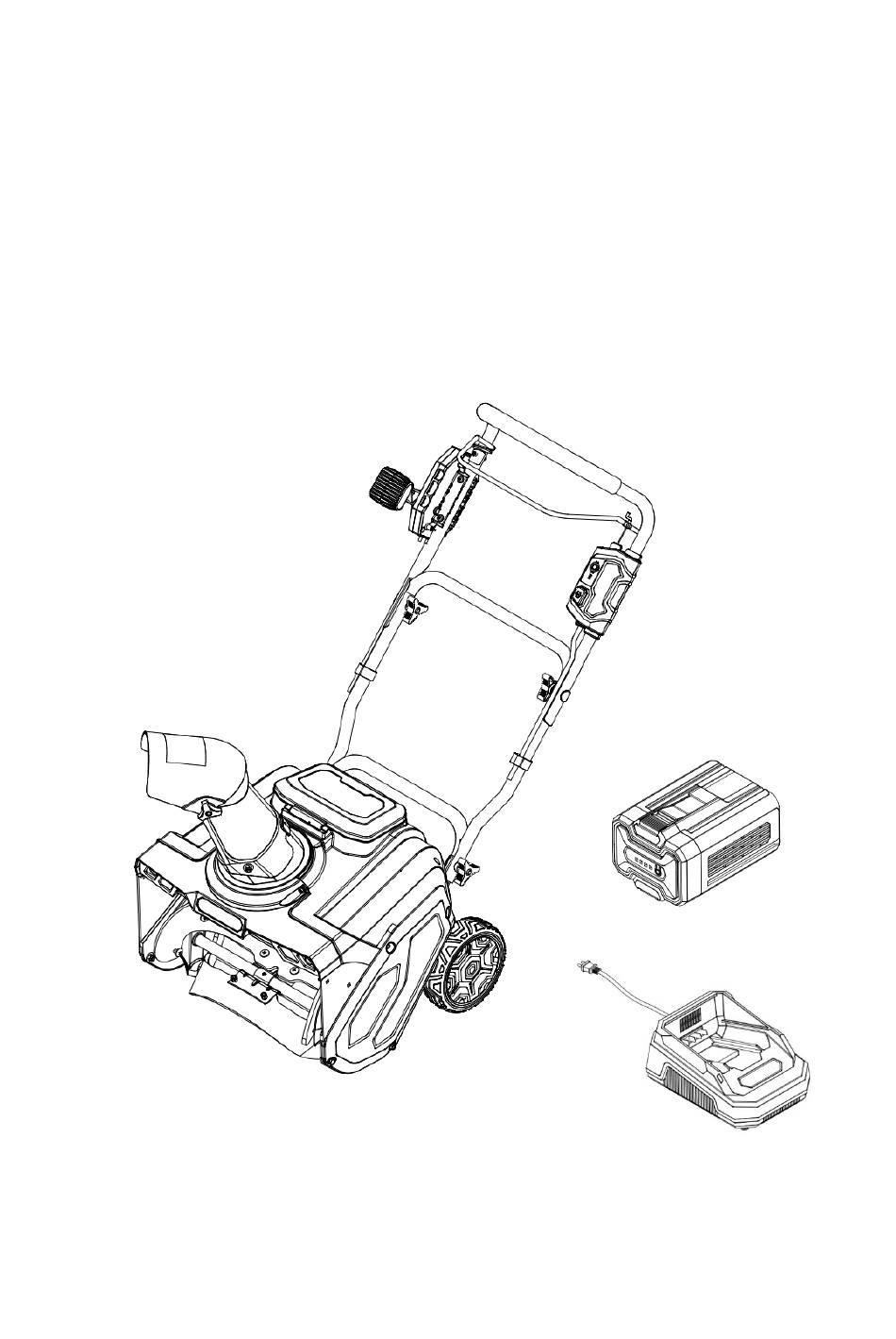

  • Page 1 NV18SSB SNOW BLOWER Quick Start Guide...

  • Page 2: Packing List

    PACKING LIST Component Name Picture Quantity Host Components Steering Components Handle Connecting Pipe Components Upper Handle Components Snow Discharge Chute Components Battery...
  • Page 3 Charger Square Neck Bolt Assembly Phillips Bolt Assembly Operator’s Manual Toolkit...
  • Page 4 ASSEMBLY 1. Curved Washer 2. Handle Knob 3. Handle Connecting Pipe 4. Lower Handle 5. Square Neck Bolt ◆Take out the handle connecting pipe, remove the square neck bolts, handle knobs and curved washers on the pipe. ◆Open the opening at the bottom of the handle connecting pipe, and insert it into the left and right holes of the lower handle frame.
  • Page 5 1. Steering Handle Box Assembly 2. Phillips Pan Head Screw 3. Large Washer Class A 4. Type 1 Non-Metallic Insert Hex Lock Nut 5. Upper Handle ◆Remove the Type 1 non-metallic insert hex lock nut, Class A large washers, and Phillips pan head screws from the instruction manual bag.
  • Page 6 1. Battery Compartment Cover 2. Self-Locking Button 3. Battery Compartment ◆Open the battery compartment cover. ◆Simultaneously press the self-locking buttons on both ends of the battery pack to insert it into the battery compartment, press it in to the end and hear a "click". ◆Close the battery compartment cover.

  • Page 7: Operation

    OPERATION 1. Bail Lever 2. Start Button ◆Press the start button. ◆While pressing the start button, pull back the bail lever. ◆Once the auger starts, release the start button. ◆Release the bail lever to stop the machine. 1. Shift Button 2.
  • Page 8 1. Chute Deflector 2. Chute-Rotation Handle 3. Bail Lever 4. Upper Handle ◆During the working process of the machine, hold the bail lever and the upper handle with your left hand to keep the snow blower in working condition. ◆Use your right hand to turn the chute-rotation handle back and forth in the direction of the arrow in the figure, and observe...
