TP-Link SM5110LSA-10 Installation Manual

Installation Guide

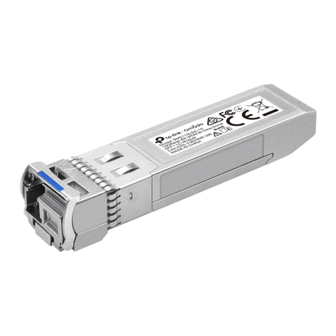

10GBase-BX WDM Bi-Directional SFP+ LC Module

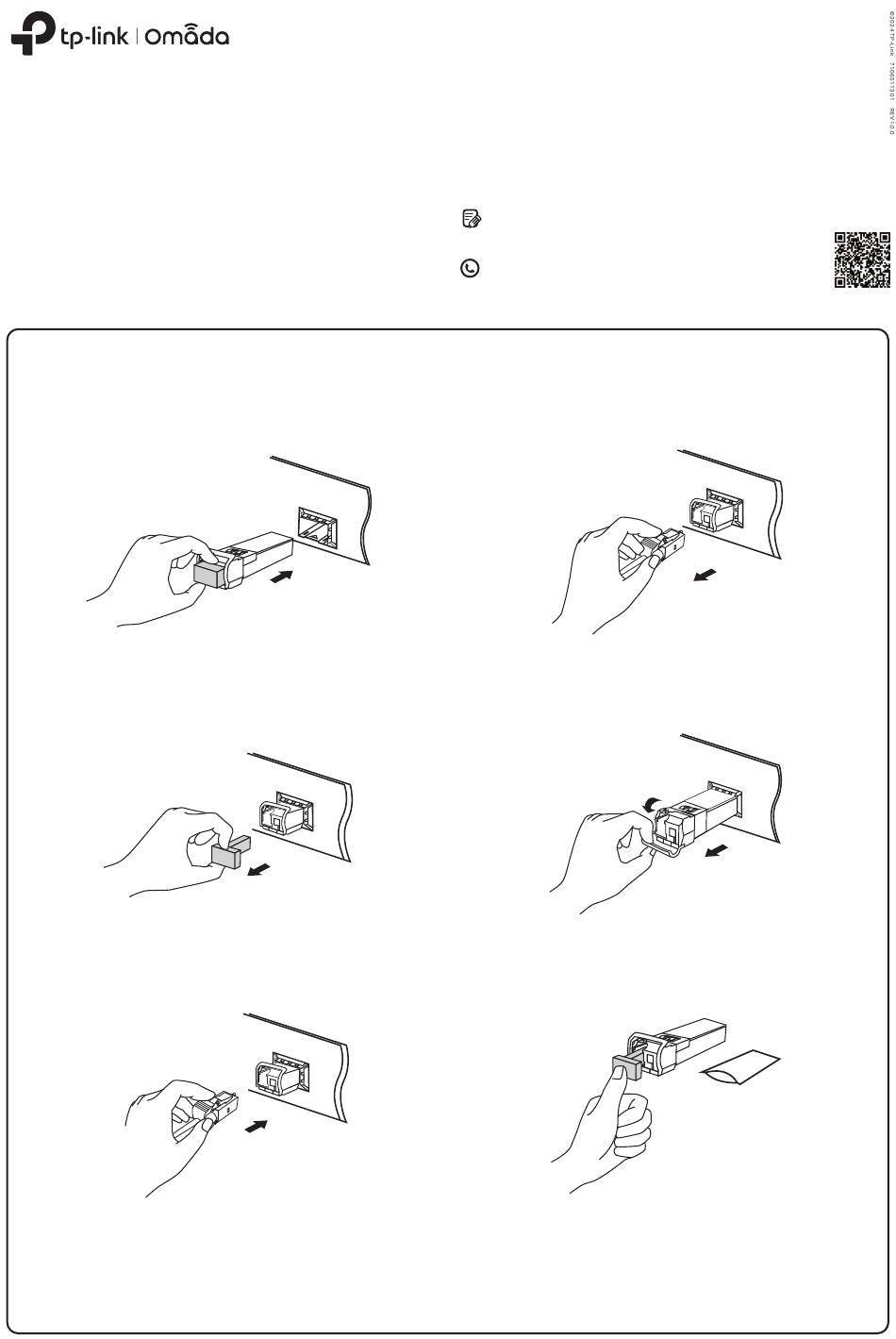

Install the module
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the module into the SFP+ slot and firmly press it into place.
3. Remove the protective dust plug from the module.
4. Plug a fiber-optic cable into the module. Note that the module works
without any additional configuration.
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the module's optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com/business to join
TP-Link Community.
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the
QR code.
Remove the module
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network fiber-optic cable from the module.
3. Pull the safety latch downwards to release the module, and then pull it
out from the slot.
4. Reinstall the protective dust plug in the module's optical bores and
place it on antistatic mat or a static shielding bag.
