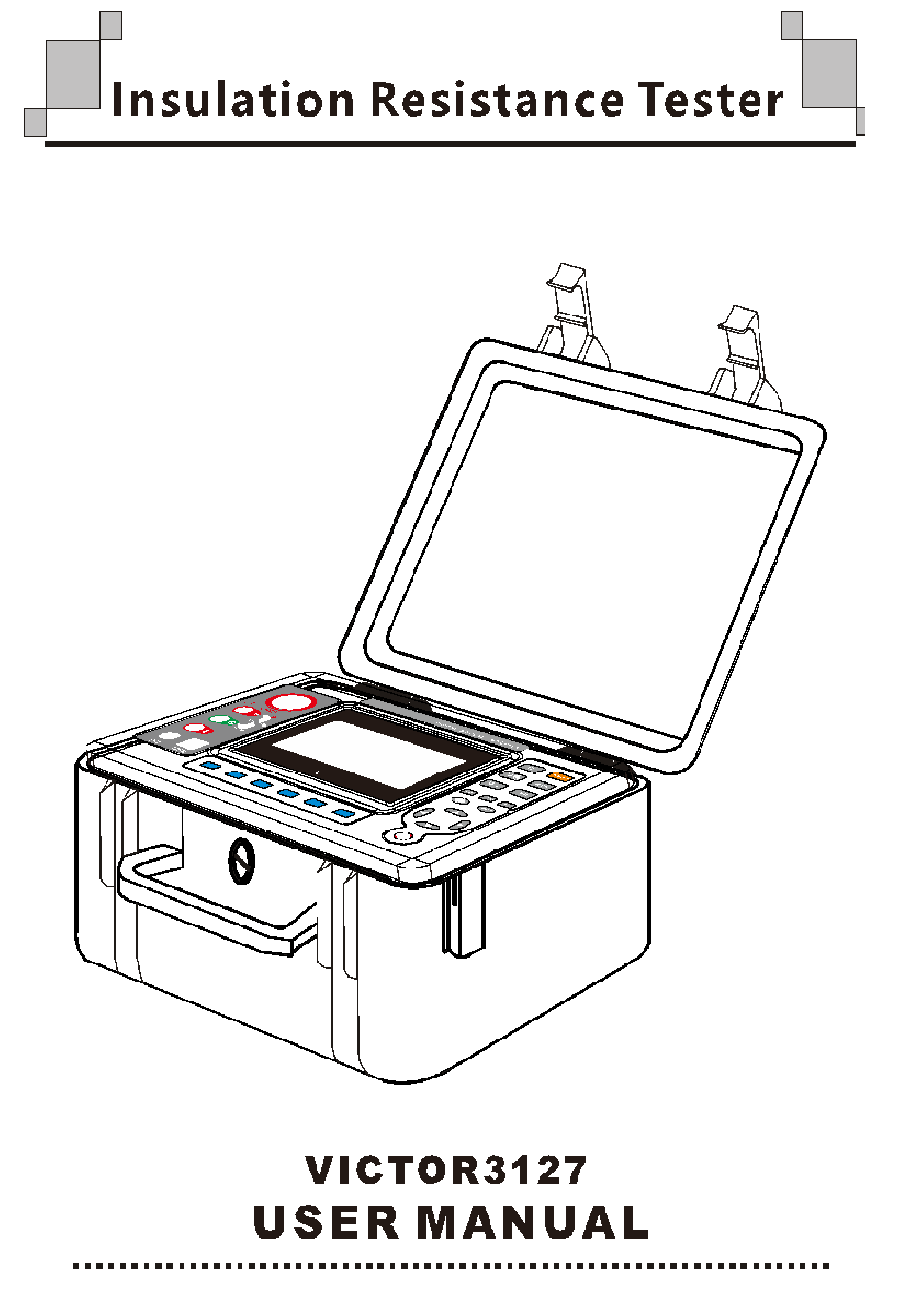

Summary of Contents for Victor 3127
-
Page 2: Table Of Contents
CONTENT I．Safety Precautions and Procedures…………………………………………3 II．Introduction……………………………………………………………………4 III. Rang and Accuracy……………………………………………………………5 IV .Technical Specifications……………………………………………………6 V. Structure …………………………………………………………………………8 VI.Measuring Principle……………………………………………………………9 VII.Operation Method………………………………………………………………9 1． Power On/Off……………………………………………………………………9 2． Battery Voltage Check………………………………………………………9 3． DC Voltage Test………………………………………………………………9 4． AC Voltage Test………………………………………………………………10 5． Insulation Resistance Test…………………………………………………10 6． GUARD Use of Protective Wires……………………………………………12 7．... -
Page 3: Safety Rules And Precautions
I.Safety Rules and Precautions Thank you for purchasing our company's Insulation Resistance Tester. Before you use this instrument for the first time, in order to avoid possible electric shock or personal injury, please be sure to read and strictly observe the safety rules and precautions listed in this manual. In any case, the use of this instrument should pay special attention to safety. -
Page 4: Introduction
daylight radiation for a long time. ◆ When the meter displays battery low voltage symbol“ ”，should charge in time, otherwise it will lead to ground error. ◆ Do not charge or perform data transmission during the measurement process. ◆ Pay attention to measuring range and usage environment stipulated for the Tester. -
Page 5: Measuring Range And Accuracy
insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment. Insulation Resistance Tester consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). Rated insulation test voltage range 250V ~ 10kV, insulation resistance measurement range 0.01MΩ... -
Page 6: Technical Specifications
0 MΩ～50MΩ ±3%rdg±5dgt 0.01MΩ 50 MΩ～500MΩ ±3%rdg±5dgt 0.1MΩ 500 MΩ～5000MΩ ±5%rdg±5dgt 1MΩ 10KV (±10%) 5 GΩ～50GΩ ±10%rdg±5dgt 0.01GΩ 50 GΩ～500GΩ ±20%rdg±5dgt 0.1GΩ 500 GΩ～2000GΩ ±20%rdg±5dgt 1GΩ Remark: Common electrical unit conversion 1 TΩ（Tera ohm）=1000GΩ=10 Ω 1 GΩ（Giga ohm）=1000MΩ=10 Ω 1 MΩ（Mega ohm）=1000KΩ=10 Ω... - Page 7 display Alarm Function Alarm when the measured value smaller than the alarm setting value Standby: 30mA Max(backlight off), turn on backlight: 42mA Power Consumption Max, measure：300mA Max(backlight off) Instrument weight 2750g(including battery) When the battery voltage is low, low battery symbol “ ”will display Battery voltage Automatic shut-down...
-
Page 8: Structure
V. Structure 1. LCD display screen 2. LINE interface 3. V interface 4. GUARD interface 5. EARTH interface 6.changer interface 7.USB interface 8. Voltage select button 9.Test button 10.Power on/off button 11. Security Alligator Clip 12.Test line（green , black each 1PC） 13．High voltage test terminal banana plug into LINE interface 14.Shielded cable... -
Page 9: Vi.measuring Principle
VI.Measuring Principle Insulation resistance measurement uses a voltage generator to generate a voltage, V, applied across the resistor, measuring the current I flowing across the resistor, and calculating the ground resistance value R according to the formula R=V/I. VII.Operation Method 1．Power On/Off Press the POWER button to turn the switch on and off. -
Page 10: 4．Ac Voltage Test
4．AC Voltage Test Input instrument AC voltage cannot exceed 750V。 When measuring, turn the rotary switch to the gear position, connect the green lead to the V terminal, the black lead to the COM, and the LCD displays the real-time AC voltage value. 5．Insulation Resistance Test Insulation resistance test can only be carried out on an uncharged circuit. -
Page 11: Insulation Resistance
Guaranteed temperature humidity of the insulation resistance accuracy Insulation Guaranteed the humidity Guaranteed temperature resistance value of the insulation insulation resistance range resistance accuracy accuracy 0Ω-100MΩ <85% RH(No condensation) 23℃±5℃ 101MΩ-20GΩ <75% RH(No condensation) 21GΩ-1000GΩ <65% RH(No condensation) Insulation resistance test can only be carried out on an uncharged circuit. -
Page 12: 6．Guard Use Of Protective Wires
6．GUARD Use of Protective Wires When the insulation resistance of the cable is measured, the leakage current of the covered surface passes through the interior of the insulator and the current converges, resulting in an error in the insulation resistance value. In order to avoid this phenomenon, as shown in the figure below, use the protection wire (any conductive bare wire) to flow the leakage current through the part. - Page 13 short-term insulation resistance ratio DAR is called the absorption ratio (see the following formula for the specific test time), but for large-capacity long-term absorption process, such transformers, generators, cables, capacitors other electrical equipment, sometimes the absorption ratio (DAR) is not enough to reflect the whole process of absorption, and the insulation resistance ratio can be used for a longer time, that is, the ratio between the insulation resistance (R10min) at 10 minutes and the insulation resistance (R1min)
-
Page 14: 8．Backlight Control
The LCD displays the measured value. After the measured value is fixed, the absorbance or polarization index can be read. After the test is completed, press “ ” to view the divisor of the absorption ratio or polarization index value (such as the value of 60S in “60:15S”... -
Page 15: 9．Alarm Setting
After power on, press “ ” key to turn the backlight on or off, and the backlight function is suitable for dim places. The default backlight turns off every time you turn it on. 9．Alarm Settings After power on, long press “ ”... -
Page 16: 11．Data Review/Delete
11．Data Review/Deletion After booting, if the meter has saved data, press the "MR" button to enter the data lookup, and store the data read interface "MR" symbol display. Press the " "or" "key to select the data corresponding to the array number with a step value of 1, press "... -
Page 17: Accessories
IX． Accessories Instrument High pressure 1PC red High voltage 2PCS（black,green each 1） test line Monitoring Software CD communication line USB charger Manual, 1SET certificate Instrument box 1PC - 16 -...
