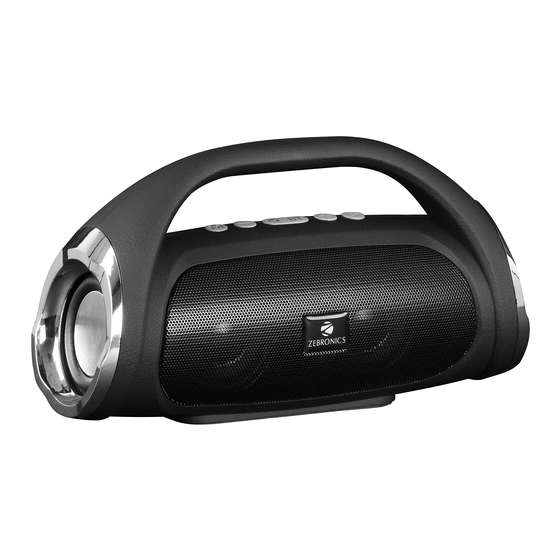

- Page 2 Product Demo ZEB-SPLASH Portable BT Speaker...
- Page 3 ZEB-SPLASH • Compact & Portable Design • Top Handle • Shortcut key for BT Mode • Dual Drive Speaker • Passive Drivers for enhanced bass • Playback Time: 3-4 hrs • Call Function • Rubber Gripped Bottom...
- Page 4 ZEB-SPLASH Connectivity & LED Indications Connectivity • • FM Radio • • • Micro SD Card Different LED Indications • Charging Indication: Red LED glows • Full Charge Indication: Red LED Turns OFF...
- Page 5 Keys & Ports ZEB-SPLASH Mode Change Previous Track & Volume - Key Micro SD card Slot Play/Pause Power Next Track & on/off key Volume + key AUX IN BT Shortcut Charging Port...
- Page 6 • Make sure the speaker is in BT Mode. • Search for nearby BT devices in your mobile. • Tap on BT Name “ZEB-SPLASH” to connect. •Change Mode •Press & Hold: Turn on/off •Press Once: Play/Pause •Press Once: Previous Song •Press Once: Next Song...
- Page 7 Basic Operations & Controls ZEB-SPLASH FM Radio • Switch the Speaker to FM Mode by pressing the Mode button. • Connect the charging cable to the speaker and leave the other end free (This cable will act as an antenna).
- Page 8 Basic Operations & Controls (Contd.) ZEB-SPLASH AUX Mode • Once the speaker is in AUX Mode, connect the AUX cable to the speaker & connect the other end 3.5mm jack to a audio source (Eg. Computer, mobile). • Now the songs played by the audio source can be heard through the speaker.
- Page 9 Basic Operations & Controls (Contd.) ZEB-SPLASH USB/Micro SD Card Mode • When the speaker is on, insert the USB/Micro SD card to the speaker. • The speaker will detect the USB/Micro SD card automatically & play the songs from the USB/Micro SD card.
- Page 10 Basic Operations & Controls (Contd.) ZEB-SPLASH Call Function • When the speaker is connected to a mobile via BT. • Press the play-pause key to answer/hung up a call. • Double Press the Play/Pause key to redial the last number dialed.
-
Page 11: Specifications
Specifications ZEB-SPLASH • Output Power (RMS): 3W x 2 • BT Version: 4.2 • Driver Size: 50mm x 2 • Max Supported USB/Micro SD memory size: 32GB • Playback time: 3-4 hrs • Product Dimension (WxDxH): 198 x 115 x 75 mm •...
