Page 1: Quick Start Guide

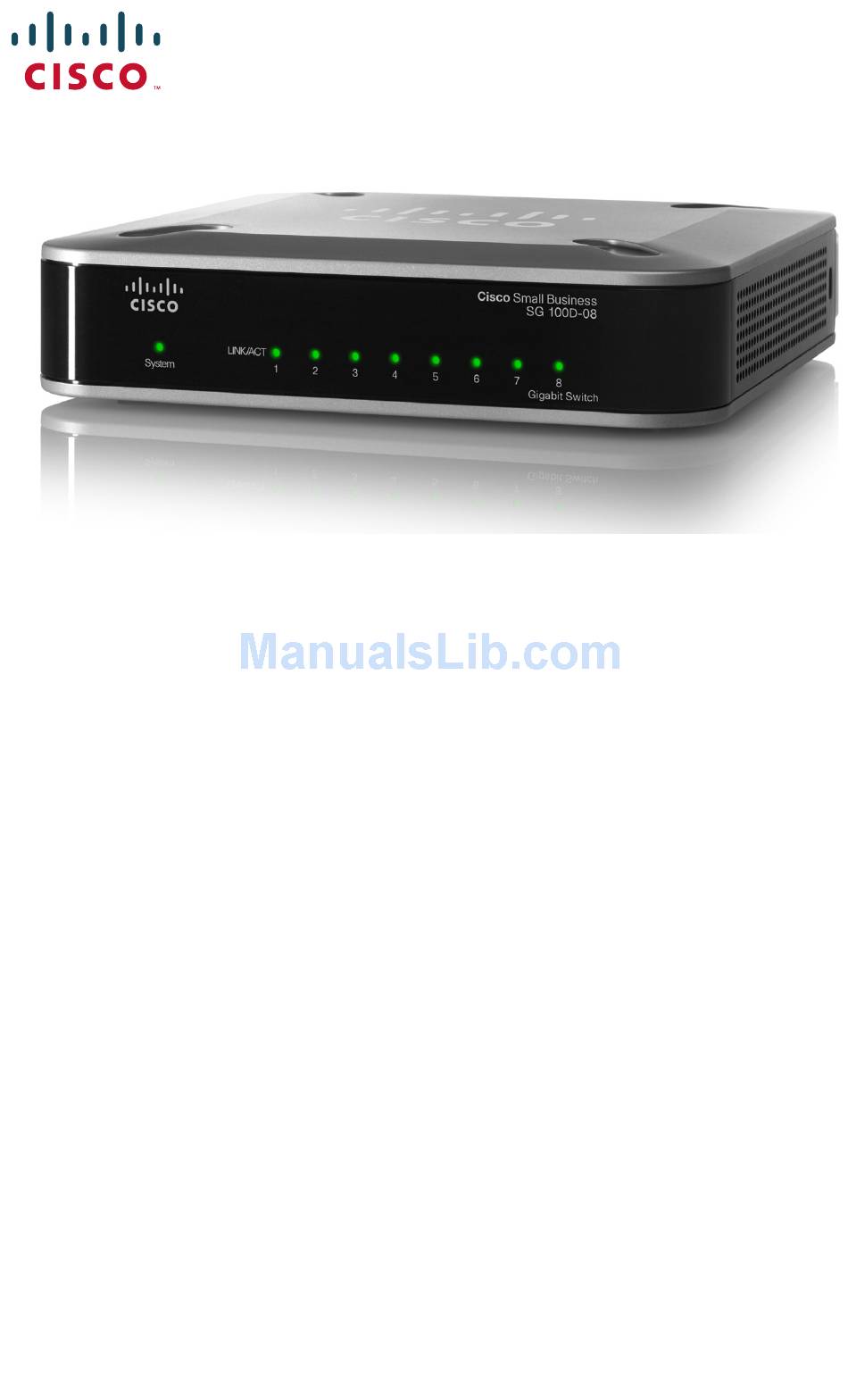

Quick Start Guide Cisco Small Business Unmanaged Desktop Switch Contents • Cisco SF 100D-05, SF 100D-08, SF 100D-16, or SG 100D-08 Unmanaged Desktop Switch • Wallmount Kit • Power Adapter... -
Page 2: Traffic Prioritization
Welcome Thank you for choosing the Cisco SF 100D-05, SF 100D-08, SF 100D-16, or SG 100D-08 Unmanaged Desktop Switch, a Cisco Small Business network communications device. Green Energy—Efficient Technology The Cisco SG 100D-08 switch supports Green Energy-efficient Technology. It can enter sleep mode, turn off unused ports, and adjust power as needed. -
Page 3: Wall Mounting
0.55 inches (14.0 mm) long. Depending on your mounting surface, you might require longer screws or drywall anchors with a minimum of 0.30 inches (7.6 mm) width at the head and at least 0.59 inches (15.0 mm) long. Cisco is not responsible for damages incurred by insecure wall- ARNING mounting. -
Page 4: Connecting Network Devices
Connecting Network Devices. For additional information, see Where to Go From Here. Connecting Network Devices The diagram is an example of a typical network configuration. Cisco Small Business SR2024 Link/Act 11 12 / miniGBIC1 Gigabit (Shared with 12) (Shared with 24) - Page 5 If the uplink from one unmanaged, cascaded switch to another is moved from one port to another port, it can take 30 to 60 seconds for full network operation to resume. This is normal and expected behavior. To connect the unmanaged desktop switch to a network device, such as a printer or workstation: Connect the Ethernet cable (Cat5 or better recommended) to the Ethernet port of a computer, printer, network storage, or other...
- Page 6 Features of the Cisco Unmanaged Desktop Switch This section describes the features of the unmanaged desktop switch. LEDs The LEDs are located on the front panel of the switch. System LED—(Green) This LED lights up and remains lit when the switch is powered on.
-
Page 7: Where To Go From Here
