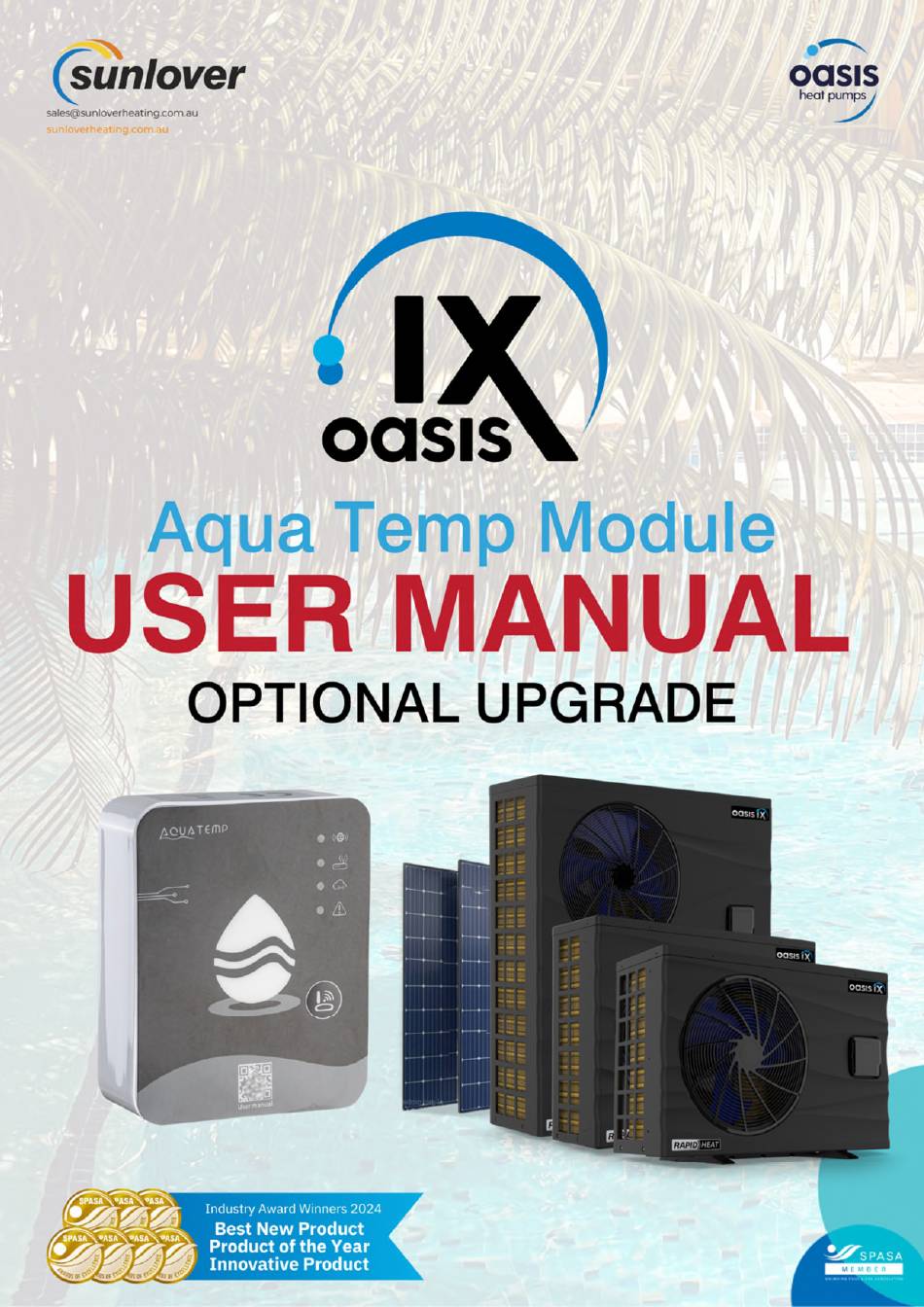

  • Page 1 Page 1 of 26...

  • Page 2: Table Of Contents

    Contents Introduction ..........................1 Overview ..........................1 Specifications........................1 Technical Requirements ....................... 1 Installation ..........................2 Module Installation ........................ 2 App Installation and Setup ....................3 iPhone / iOS Pairing Instructions ..................5 Android Pairing Instructions .................... 11 Operation ..........................17 Key App Functions ......................

  • Page 3: Introduction

    Introduc on Overview The Aqua Temp module is offered as an optional upgrade for your convenience. This generic interface allows connectivity with the heat pump via a third-party smart phone app, compatible with both iOS and Android devices. The Aqua Temp app provides a user-friendly and convenient solution for monitoring and adjusting your pool temperature.

  • Page 4: Installation

    Installa on Module Installation The electricity supply to the heat pump must be disconnected and isolated prior to commencing the installation of the Aqua Temp module. 1. The Aqua Temp module (1) is supplied with a lead and male connector which plugs into a factory cable, ➁...

  • Page 5: App Installation And Setup

    Installa on Module Installation (continued) 4. Route the module lead through the cable grommet in the bottom of the electrical cover and plug this into the 5-pin connector. Fig.4 Cable Routing 5. Reinstall the electrical cover and affix the module to the side of the heat ump as shown.
  • Page 6 Installa on App Installation and Setup (continued) Create an Account To use the app, you must first register an account. 1. To register, select ‘Account Registration’ (1) and complete the required fields with your personal information. 2. Select ‘Send Verification Code’ (2) and a verification code will be emailed to you. If you do not immediately receive this, check you ‘Junk’...

  • Page 7: Iphone / Ios Pairing Instructions

    Installa on App Installation and Setup (continued) IMPORTANT STEP - CHECK AND RECORD YOUR WIFI NETWORK CREDENTIALS Before you add your device, it is advisable that you record your WiFi network details so that you have them on hand during the paring process. Ensure that you record the password using the correct UPPERCASE and lowercase letters, along with any special characters, exactly as shown in your modem or router settings.
  • Page 8 Installa on App Installation and Setup (continued) 5. Select ‘Confirmed’ (1) to allow Bluetooth permission, location and camera. 6. Following the instructions on the page, press and hold the button (2) on the Aqua Temp module for one second until the top and bottom lights illuminate (3), which will activate pairing mode. Once the lights have illuminated, select the ‘Confirm’...
  • Page 9 Installa on App Installation and Setup (continued) 10. Select ‘OK’ to allow Bluetooth permission (1) if requested. Bluetooth will be used during the pairing process to make a temporary connection to the module. 11. Select ‘Settings’ (2) to enter your iOS Bluetooth setting interface and follow the necessary prompts to allow Aqua Temp to use Bluetooth [Fig.16].
  • Page 10 Installa on App Installation and Setup (continued) 13. The Aqua Temp app will now automatically connect to the module via Bluetooth in order to share the WiFi network credentials [Fig.17]. It will then disconnect from Bluetooth and wait for the heat pump module to connect successfully connect to the Aqua Temp server via the WiFi network.
  • Page 11 Installa on App Installation and Setup (continued) 14. Once the module has successfully connected to the internet, it needs to be linked (‘bonded’) to the Oasis heat pump for configuration purposes. Select ‘Next’ (1) to continue. 15. Select ‘Bond Device’ (2). The Aqua Temp app will access the camera to scan the barcode on the side of the heat pump.
  • Page 12 Installa on App Installation and Setup (continued) 17. Select ‘Confirmed’ once both the IOT and MAC codes are displayed [Fig.22]. The module installation and WiFi pairing is now complete and the device will appear on the My Device screen [Fig.23]. 18.

  • Page 13: Android Pairing Instructions

    Installa on App Installation and Setup (continued) IMPORTANT STEP - CHECK AND RECORD YOUR WIFI NETWORK CREDENTIALS Before you add your device, it is advisable that you record your WiFi network details so that you have them on hand during the paring process. Ensure that you record the password using the correct UPPERCASE and lowercase letters, along with any special characters, exactly as shown in your modem or router settings.
  • Page 14 Installa on App Installation and Setup (continued) 5. Select ‘Confirmed’ (1) to allow Bluetooth permission, location and camera. 6. Following the instructions on the page, press and hold the button (2) on the Aqua Temp module for one second until the top and bottom lights illuminate (3), which will activate pairing mode. Once the lights have illuminated, select the ‘Confirm’...
  • Page 15 Installa on App Installation and Setup (continued) 10. Follow any system prompts to enable access to Bluetooth and camera [Fig.30 - 32]. Fig. 30 Fig. 31 Fig. 32 Bluetooth Prompt Bluetooth Permission Bluetooth Settings Tip: Ensure that you have your Bluetooth and Location settings enabled prior to commencing the pairing procedure.
  • Page 16 Installa on App Installation and Setup (continued) If the connection was successful, continue to step 12 on the next page (‘Bond Device’) If the connection timed out, check the following items and then retry the pairing procedure.  The WiFi password entered was not correct Double check the network name and password to ensure they match the modem or router settings.
  • Page 17 Installa on App Installation and Setup (continued) 12. Once the module has successfully connected to the internet, it needs to be linked (‘bonded’) to the Oasis heat pump for configuration purposes. Select ‘Next’ (1) to continue. 13. Select ‘Bond Device’ (2). The Aqua Temp app will access the camera to scan the barcode on the side of the heat pump.
  • Page 18 Installa on App Installation and Setup (continued) 15. Select ‘Confirmed’ once both the IOT and MAC codes are displayed [Fig.38]. The module installation and WiFi pairing is now complete and the device will appear on the My Device screen [Fig.39]. 16.

  • Page 19: Operation

    Opera on User Operation Key App Functions There are several key functions in the main user interface which are tabled below. The level of app functionality will depend on the configuration of your pool heating system*. Consult with your installer for further information. ICON NAME FUNCTIONS...

  • Page 20: Power On / Off

    Opera on User Operation (continued) Power On / Off When the heat pump is switched off, you will see ‘OFF’ (1) displayed on the main user interface. To switch the heat pump on, expand the control menu (2) and select the power icon (3). The ‘OFF’ will be replaced by the current water inlet and outlet temperatures (4).

  • Page 21: Heating Mode

    Opera on User Operation (continued) Mode Setting The current mode setting is displayed on the main user interface (1). ➀ To change the mode, expand the control menu and select the mode key (2). Heating Water will be heated when the current inlet temperature is below the target temperature.

  • Page 22: Clock

    Opera on User Operation (continued) Clock Setting The time clock is built into the display panel on the heat pump and cannot be changed remotely. To set the current time, consult with the applicable user manual for your heat pump model. ➀...

  • Page 23: Malfunction Indicator

    Opera on User Operation (continued) Malfunction Indicator In the event of an error, the failure warning message will appear at the top of the main user interface screen (1). The malfunction indicator icon will also be illuminated (2). Select the malfunction indicator icon to access the error message. Generic troubleshooting information will be available by selecting ‘Solution’...

  • Page 24: Troubleshooting

    Troubleshoo ng Troubleshooting Wi-Fi Pairing If you are having trouble connecting your Aqua Temp module to the Wi-Fi network, refer to the connection checklist on Page 16. Ensure that you are connecting directly to the modem or router and not to a WiFi booster or extender.

  • Page 25: Warranty

    2 Years Parts Warranty Coverage During the Warranty Period, Sunlover warrants that the Product will be free from material defects in materials and workmanship under normal use and maintenance. This Warranty is subject to the terms and conditions set out hereunder.
  • Page 26 Notes Page 24 of 25...
  • Page 27 Notes Page 25 of 25...
  • Page 28 Sunlover is the sole distributor of Oasis Heat Pumps in Australia For enquiries, please contact us. sunloverheating.com.au sales@sunloverheating.com.au 1800 815 913 Head Office New South Wales Queensland New Zealand 6-8 Austral Place Unit 2, 10 Boden Road 11 Andy Court...
