HEWITT Roll-A-Rail 6500 Installation Instructions And Parts List

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
HARDWARE BAG 1
1
Instructions
4
3/4" X 7" Bolts
8
1/2" X 5" Bolts
1
2" Teardrop
4
3/8" X 2" Bolts
12 3/8" X 3" Bolts
8
3/8" X 6-1/2" Carriage Bolts
16 3/8" X 3" Carriage Bolts
4
3/8" X 2-1/2" Carriage Bolts
8
3/4" Washers
2
1/2" Washers
17 3/8" Washers
4
3/4" Lock Nuts
10 1/2" Nuts
56 3/8" Nuts
8
Cradle Side Plates 14"
4
5" Keel Pad Plates
2
1/4" Cable Clamps
4
Rail Wheel Brackets
4
2" X 2" Cradle Blocks
2
3/8" x 1 SS Hex Bolt
4
3/8" x 5-1/2" SS Hex Bolt
4
3/8" x 2-1/2" Alan Cap Screw
2
3/8" x 2-1/2" Chain Bolt
2
1/2" x 3" Chain Bolt
4
Retainer Plates
2
Medium Keel Plates
2
2x2 Rubber Caps
2
8" Plastic Cleats
2
Roll-A-Rail Braided Rope
1
1500 Hex Drive Winch
1
Hex Drive Handle
4
2" x 4" Rubber Cap
HARDWARE BAG 2
1
1/4" Cable (Length X 2)
4
6500 Cast Wheels
32" RAIL SYSTEM PARTS LIST
SHORE-END TRACK 4' X 16' – LRA16S
(2) 6500 CROSS SECTIONS
– LRACS65
WATER-END TRACK 4' X 16' – LRA16W1
"Quality Since 1971"
HEWITT MACHINE & MFG, INC.
www.hewitt-roll-a-dock.com
LRA32-65 Parts List/Installation Instructions
PARTS
LRHDWR165
NAASSYRR65
NB347G
NB125G
LIP2T
NB382G
NB383G
NB38612G
NB383C
NB38212C
NW34FL
NW12FL
NW38FL
NN34L
NN12S
NN38S
LCRSP14
LCRKP
LICC1/4
LRAWB
LCRB2
NB381G
NB38512G
NB38212FHS0C
NB38312CH
NB123CHN
LFLBA4
LCRKPM
D1RC2SQ
D1CN8
LRWR
LRAWINCH
LRAWHANDLE
LRARC
LRCABLE65
L1C1F
LRWHEEL65
SELF BRAKING MOTOR &
WINCH MOUNT – LRMCB
(4) RAIL WHEEL
BRACKETS LRAWB
Box 111
Nicollet, MN 56074
6500 Roll-A-Rail
SPECIFICATIONS
Load Capacity 6500 lbs.
Maximum Incline 10'
(33" rise in 16' ramp) (66" rise in 32' ramp)
Winch Motor 1 hp with brake
AC Power 115V, 60Hz, 15 Amps
TRACK MUST BE SUPPORTED EVERY 4FT

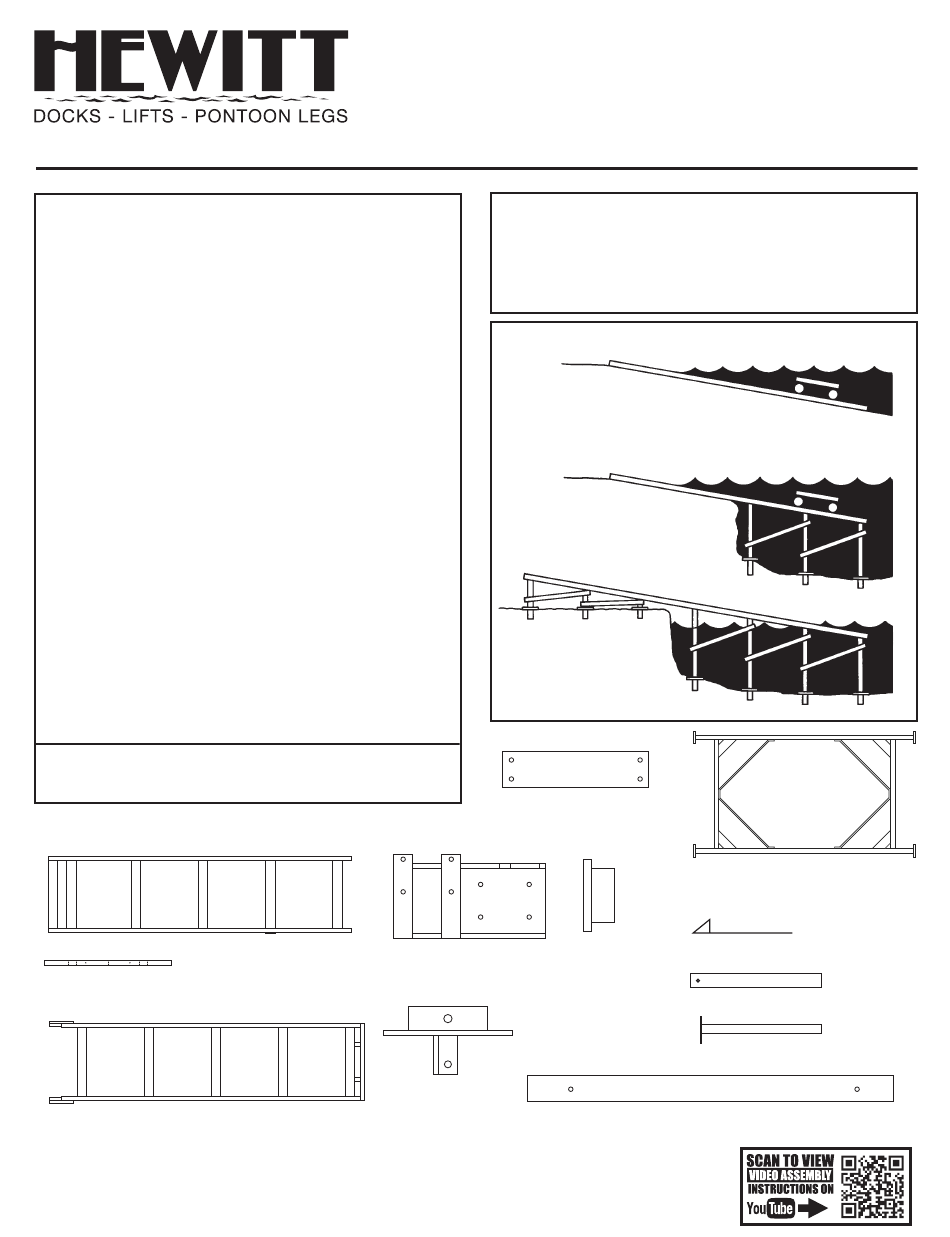

TYPICAL INSTALLATIONS
(2) WOOD KEEL PADS
2" X 6" X 24" – LCRK
(4) 6500lb
CAST WHEELS
LRWHEEL65
(507) 225-3421
NAASSYRR65 | 10-19 | RAR_NAASSYRR65.INDD
CART FRAME ONLY
– LRACART65-F
Whip Flag - LRWF
Whip Mounting
Tube - LRWFT
(2) Cleat
Post - LRACP
(2) CARPETED WOOD BUNKS
2" X 6" X 12" – LFLB121

Advertisement

loading
Need help?

Need help?

Do you have a question about the Roll-A-Rail 6500 and is the answer not in the manual?

Questions and answers

Related Manuals for HEWITT Roll-A-Rail 6500

Summary of Contents for HEWITT Roll-A-Rail 6500

  • Page 1 Post - LRACP (4) RAIL WHEEL BRACKETS LRAWB (2) CARPETED WOOD BUNKS WATER-END TRACK 4’ X 16’ – LRA16W1 2” X 6” X 12” – LFLB121 “Quality Since 1971” HEWITT MACHINE & MFG, INC. Box 111 Nicollet, MN 56074 (507) 225-3421 www.hewitt-roll-a-dock.com...

  • Page 2: Installation Instructions

    INSTALLATION Figure 1 INSTRUCTIONS Water-End Shore-End or Extension Section(s) Track Section 1. a. Prepare soil. Level ground in the area where the Water-End Section rail system is to be placed. Pack loose soil. If soil conditions are poor, place treated wood, concrete blocks or pads to provide stable mounting 1/2”...
  • Page 3 To motor at shore end Figure 4 Attach cable to chain bolts (Cable Clamps) 11. Locate the hex drive winch. Using (2) 3/8” x 1” bolts, mount the winch to the mounting bracket on rear of cart with the hex drive facing out. Be sure to use a 3/8” flat washer on the bolt going into the slotted hole of the winch.
  • Page 4 NOTE: If cart rolls after power is shut off, it may be necessary to equip the cart with a brake. Consult your dealer for more information. The Hewitt Roll-A-Rail has been designed to give you many years of trouble free service. You can extend the life of your parts by checking the following.
  • Page 5 15. To secure the optional crossbar, simply loosen the tabs, slide on and retighten. Slide the pipe through the upright and then attach the mud pad. See figures 7 and 8 for support brace options. Starting at shore end install rail support members where rail is off the ground as terrain requires. 6500 - Install support base every 4’...
  • Page 6 17. Locate the 8” cleat. Using (2) 3/8” x 2-1/2” allen screws and (2) retainer plates with welded nuts, assemble keeping the flat side of retainer plate toward the cleat. Slide cleat onto the cleat post upright and tighten. Slide the 2” x 2” sq. rubber cap over the end of the upright tube.

  • Page 7: Replacement Parts

    6500 Roll-A-Rail Box Complete - LRMB6 Vent/Oil Plug Electric Brake- LRBRKO Motor Only - LRMO Belt - LRBELT 2” Pulley - LRP2 6” Pulley - LRP6 Gear Box - LRGB Chrome Key Fob Key Fob LWHDDKC LWHDDK Replacement Battery Replacement Battery LWHYRBCC LWHYRBC 15’...
