HARDWARE BAG
1
Hewitt Winch Instructions
1
Lift Capacity Sticker
1
2400NP Assembly Instructions
1
1/4" X 24' Cable
1
1/4" Cable Clamp
4
2" Teardrop Pulleys
1
5" Winch Reinforcement Plate
2
3" X 3" Rubber Caps
12 5/8" Locking Nuts
2
1/2" X 3" Bolts with Chain for NP
1
1/2" X 4" Bolts with Chain for NP
1
Spinner Knob Only
1
Moisture bag
1
BOLT BOX
4
3/8" X 3" SS Bolts
3
3/8" X 3-1/2" SS Bolts
2
3/8" X 4" SS Bolts
4
3/8" S.A.E.Washer
10 3/8" Brass Nuts
3
1/2" X 4" SS Bolts
6
1/2" Brass Nuts
2
5/8" X 4-1/2" SS Bolts
2
5/8" X 5" SS Bolts
2
5/8" X 5-1/2" SS Bolts
6
5/8" X 6" SS Bolts
6
5/8" S.A.E. Washers
1
3/16" SS 3-link Chain w/.39 opening
1
3/8" x 2-1/2" SS Bolt
30"
1-1/2"
x
1-1/2"
(4) LEVELING
LEGS LLH30
When using optional leveling
legs it is required to use 4 on
rear of lift.
Optional
2-1/2" Leveling
Legs Pin w/Clips
LLP2/2
Step 1
Separate all bolts, nuts, and other hardware from the supplied bag (part #NANP2450), making
sure all components are accounted for.
NOTE: Use the shortest bolts possible at each assembly point, leave nuts finger tight until as-
sembly is completed.
HEWITT MACHINE & MFG, INC.
PARTS
NANP2450
WHWI
BDL-99591-000.000T
NAASSYNP24
L1C241
L1CC1/4
L1P2T
LCRKP
D1RC3SQ
NN58L
NB123CHN
NB124CHN
LKNOB1
NANP24BB
NB383G
NB38312G
NB384G
NW38FL
NN38S
NB124G
NN12S
NB58412G
NB585G
NB58512G
NB586G
NW58FL
L1PC3/163L
NB38212G
2 – Aluminum tubes – 22' long
NANP3004
Winch 1501
LWHW15
2 – Sides
NANP1605
2400NP ASSEMBLY INSTRUCTIONS
www.hewitt-roll-a-dock.com
Parts List/Installation Instructions
"Quality Since 1971"
Box 111
Nicollet, MN 56074
NAASSYNP24 | 12-15 | LIFT_NP_2400_NAASSYNP24.INDD
NARROW PONTOON LIFT
2400 lb. Capacity

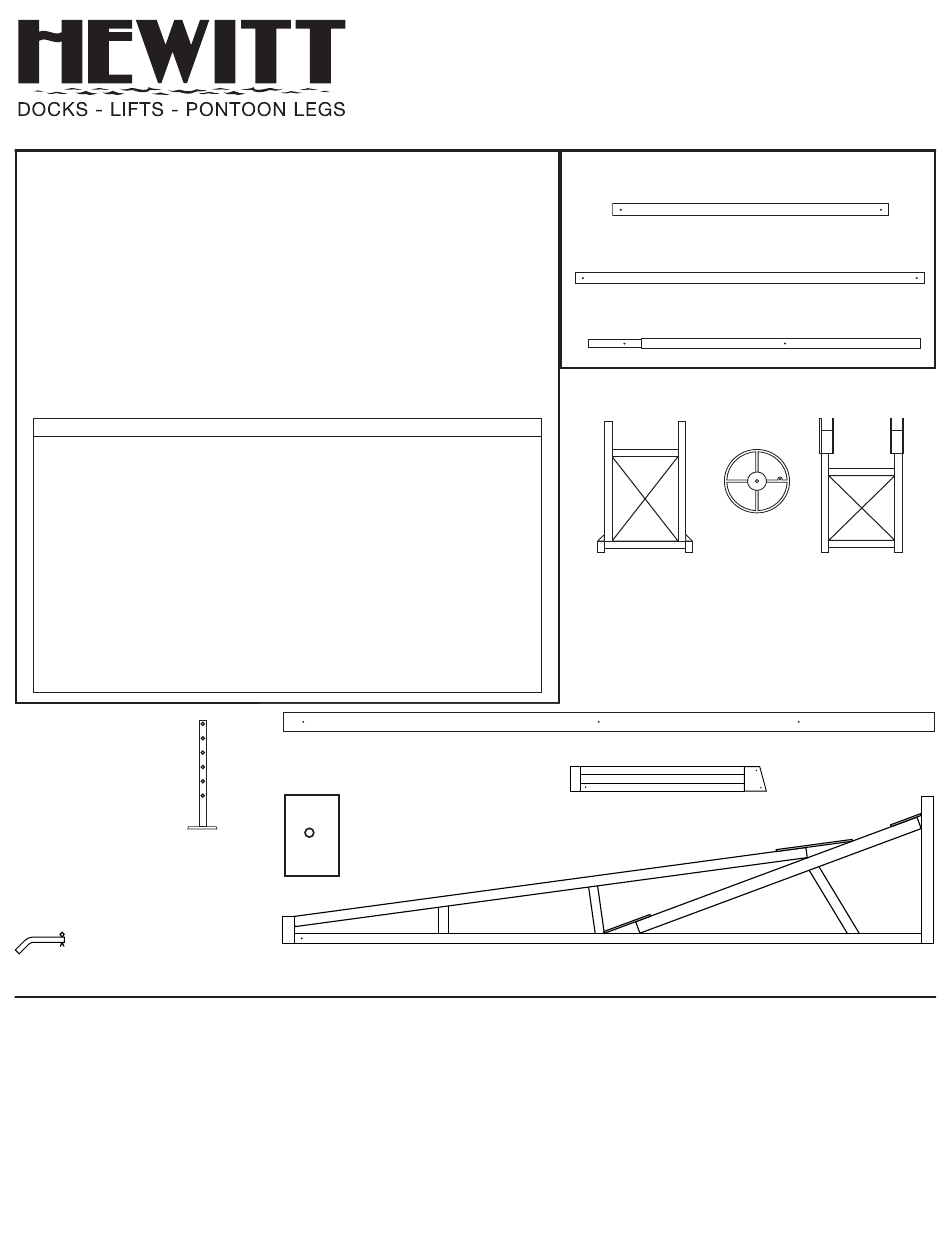

PARTS IN A BUNDLE
1 – Cross Tube 45-1/2" Long NANP1660
44" Between holes
2 – "X" Braces 49" Long
47-1/2" Between holes
1 – Winch Arm
1 – 40" Wheel
LWWL
2 – Front Lift Arms
NANP1607
2 – Side extenders – 6' long
NANP2405
(507) 225-3421
LOAP24
NANP1601
NANP1602
NANP1603
1 – Rear Lift Arm
NANP1608
