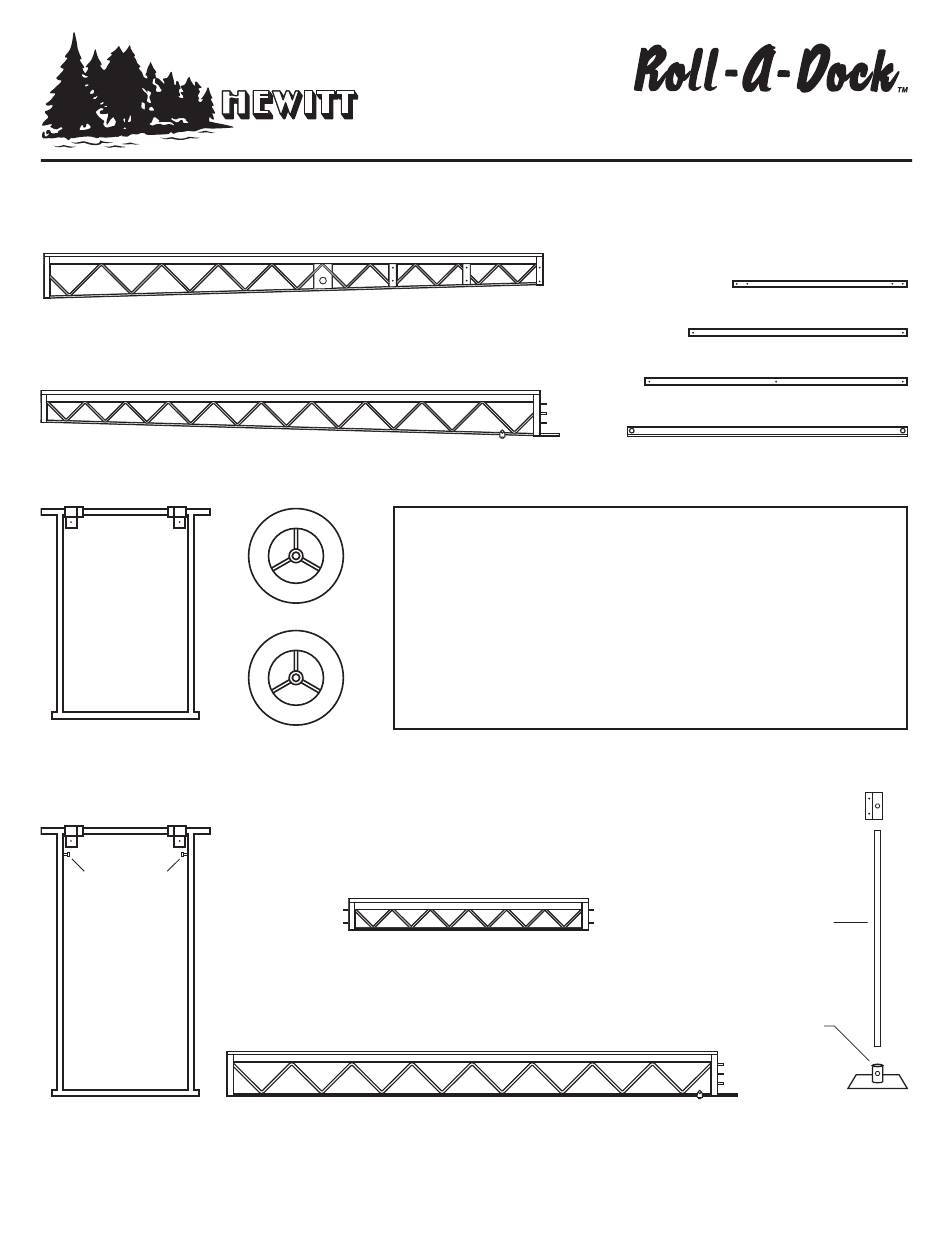

1 DOCK SECTION 16' – WHEEL END
1 DOCK SECTION 16' – SHORE END with 6 bolts and nuts and 2 clamps
1 WHEEL ASSEMBLY
DASSYA
OPTIONAL
DEEP WATER KIT
DDEEPA
SET SCREWS
HEWITT MACHINE & MFG, INC.
TWO TIRES
DWHEEL
1 Winch DL1100 – DWINCH
1 Winch Instruction – WDL11
1 Dock Assembly Instruction – NAASSYD
1 Winch Bolt Bag – DWINCHB
1 1/4" Cable 24' Long – L1C241
1 1/4" Cable Clamp – L1CC1/4
2 2" Sheaves – L1PS2
1 Dock Crank Handle –DHANDLE
1 Crank Handle Hole Plug –DPLUG
"L" SECTION with 8 bolts and nuts
4' or 8' lengths
EXTENSIONS with 6 bolts and nuts and 2 clamps
4', 8' or 16' lengths
"Quality Since 1971"
Box 111
www.hewitt-roll-a-dock.com
4'
AND ACCESSORY PARTS LIST
Substitute "G" for "A" in part numbers for galvanized.
1 HARDWARE BAG & WINCH FOR 4' ROLL-A-DOCK DHDWR
Nicollet, MN 56074
NAASSYDA4 | 10-19 | DOCK_4_RAD_NAASSYDA4.INDD
1 BUNDLE
DBUNDLEA
1 - 4' PIPE NDA3206
1 - 5' AXLE PIPE NDA3207
2 - 2" X 4' FLAT STRIPS NDA3208
2 - ANGLE BRACES NDG3209
2 1/2" x 1-1/2" Bolts – NB12112G
2 1/2" Locking Nuts – NN12L
6 Cotter Pins – NCP
2 3/8" x 1" Bolts – NB381G
2 3/8" Nuts – NN38S
5 5/16" x 1" Bolts –NB5161G
5 5/16" Nuts –NN516B
2 Tire Washers – DTW
SUPPORT
STAND BRACKET
DABRAC
STANDARD 5'
STAND PIPE
DAP5
MUD PAD
DAMUD
(507) 225-3421
Advertisement
Related Manuals for HEWITT Roll-A-Dock
Summary of Contents for HEWITT Roll-A-Dock
- Page 1 2 - ANGLE BRACES NDG3209 1 WHEEL ASSEMBLY TWO TIRES DASSYA DWHEEL 1 HARDWARE BAG & WINCH FOR 4' ROLL-A-DOCK DHDWR 1 Winch DL1100 – DWINCH 2 1/2" x 1-1/2" Bolts – NB12112G 1 Winch Instruction – WDL11 2 1/2" Locking Nuts – NN12L 1 Dock Assembly Instruction –...
- Page 2 8' x 12' end platform. to make 8' x 12' end platform. Recommended for water depth greater than 4' Required on steel dock sections only. “Quality Since 1971” HEWITT MACHINE & MFG, INC. Box 111 Nicollet, MN 56074 (507) 225-3421 www.hewitt-roll-a-dock.com e-mail: info@hewitt-roll-a-dock.com...
- Page 3 Use 5/16” x 1” bolts wheel assembly. and nuts. • Slide angled braces over axle up to the wheel assembly. “Quality Since 1971” HEWITT MACHINE & MFG, INC. Box 111 Nicollet, MN 56074 (507) 225-3421 www.hewitt-roll-a-dock.com e-mail: info@hewitt-roll-a-dock.com...
- Page 4 • Bolt on support stand brackets on corners • Adjust stands after dock is in the water. • Helper wheel for “L” shaped docks “Quality Since 1971” HEWITT MACHINE & MFG, INC. Box 111 Nicollet, MN 56074 (507) 225-3421 www.hewitt-roll-a-dock.com...
