1.
GENERAL INTRODUCTION ................................................... 1
1.1. Document Purpose ............................................................... 1
1.2. Product Purpose ................................................................... 1
1.3. Product Mounting and Location ............................................ 1
2.
PRODUCT DESCRIPTION ....................................................... 2
3.
INSTALLATION ........................................................................ 4
3.1. Inspecting the Product .......................................................... 4
3.2. Following and Using Safety Precautions................................ 4
3.3. Obtaining Tools and Equipment ............................................ 4
3.4. Preparing the Installation Site ............................................... 4
3.5. Lifting the CUBE .................................................................. 5
3.6. Mounting the CUBE ............................................................. 5
3.8. CUBE Wiring and Equipment................................................ 7
3.9. Conduit Seals ....................................................................... 8
3.10. Verifying the Installation ....................................................... 8
4.
PERIODIC MAINTENANCE .................................................... 8
5.
6.
WARRANTY & CUSTOMER SERVICE ................................... 8
7.
SPECIFICATIONS ..................................................................... 9
7.1. Regulatory Specifications ...................................................... 9
7.2. Product Specifications .......................................................... 9

1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the CUBE-PM60012LN3 of the Charles Industries' Universal Broadband Enclosure
(CUBE) product line. Figure 1 shows a closed front view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure CUBE-PM60012LN3 will be referred to as the "CUBE."

1.2. Product Purpose

The CUBE consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and
copper interfaces.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant CUBE is to be mounted on a concrete pad. The installer connects the power, fiber, and copper connections. Detailed mounting and
installation information is covered in Section 3.
©Copyright 2024 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
CUBE-PM60012LN3
General Description and Installation

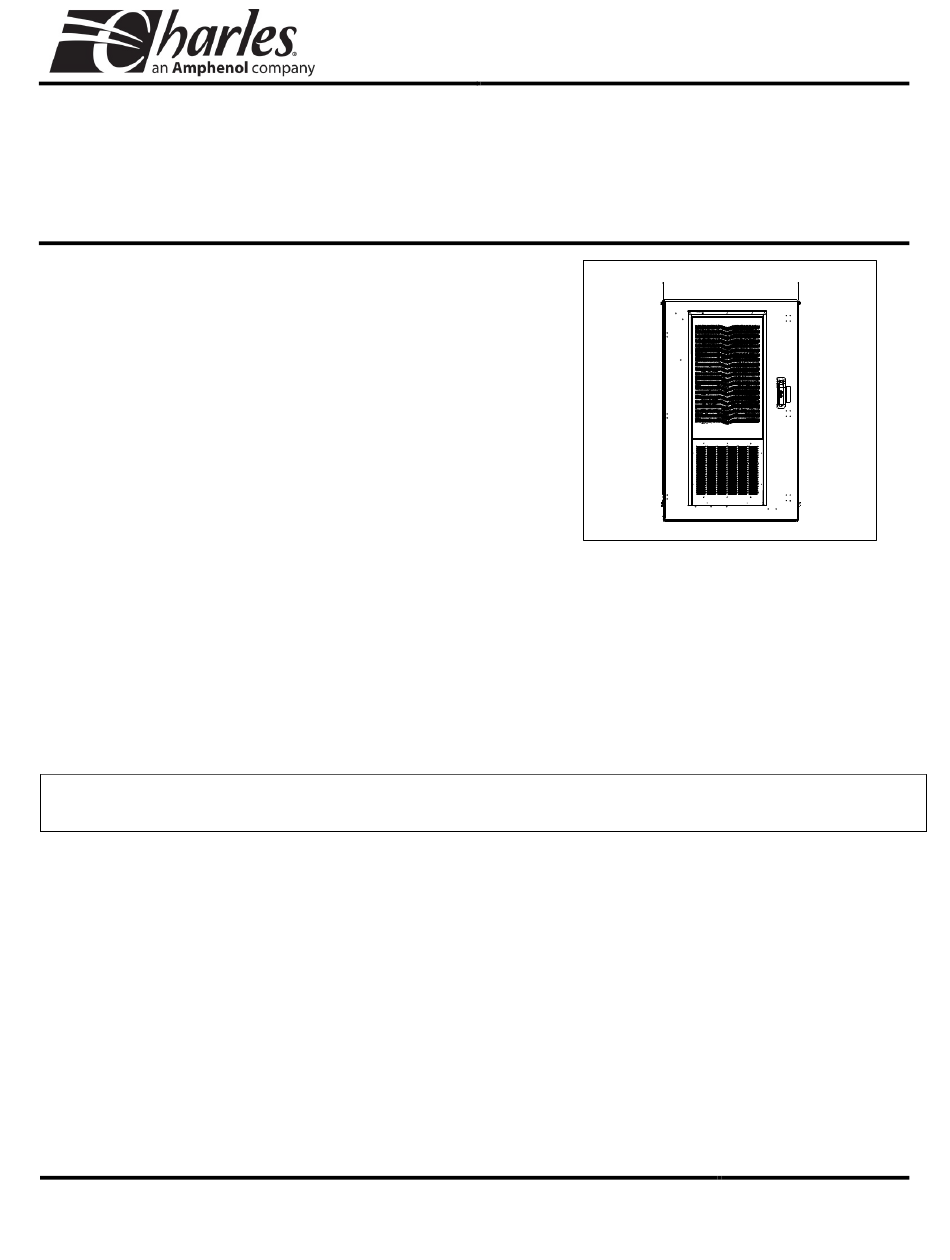

Figure 1
-NOTE-
LT-PM60012LN3
1
st
Printing, February 12, 2024
Front View of the CUBE
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Charles CUBE-PM60012LN3 and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol Charles CUBE-PM60012LN3

Summary of Contents for Amphenol Charles CUBE-PM60012LN3

  • Page 1: Table Of Contents

    LT-PM60012LN3 Printing, February 12, 2024 Charles Universal Broadband Enclosure CUBE-PM60012LN3 General Description and Installation GENERAL INTRODUCTION ........... 1 1.1. Document Purpose ............... 1 1.2. Product Purpose ..............1 1.3. Product Mounting and Location ..........1 PRODUCT DESCRIPTION ............2 INSTALLATION ................ 4 3.1.

  • Page 2: Product Description

    LT-PM60012LN3 2. PRODUCT DESCRIPTION The CUBE is a single compartment with front and rear doors and a 12000BTU AC powered HVAC system. The CUBE is designed to fully house an existing customer supplied equipment bay without any disassembly. The plinth inside the CUBE helps to mount the equipment bay.
  • Page 3 LT-PM60012LN3 (4) LIFTING HOISTS HVAC AC TWIST LOCK ALARM TERMINAL BLOCKS EXTERNAL GROUND (BOTH SIDES) 2X12 POSITION GROUND BAR WIND LATCH 3PT LATCH 216 STYLE DOOR ALARM AND PADLOCKABLE HVAC CUTOFF SWITCHES DOOR LATCH (BOTH DOORS) (BOTH DOORS) OVERHEAT THERMOSTAT HVAC SYSTEM EQUIPMENT RACK RESTRAINING PLATE...

  • Page 4: Installation

    LT-PM60012LN3 3. INSTALLATION 3.1. Inspecting the Product The CUBE is shipped mounted upright on a skid. Remove the bolts, unpack the unit, and dispose of the packaging material. -INSPECTION NOTE- Visually inspect the unit for damages prior to installation. If the equipment was damaged in transit, immediately report the extent of the damage to the transportation company.

  • Page 5: Lifting The Cube

    LT-PM60012LN3 3.5. Lifting the CUBE See Table 1 for CUBE weight. Charles recommends the following procedure for lifting the CUBE. 3.5.1. Required Equipment SPREADER BARS One derrick (crane) capable of lifting the CUBE • Spreader bars • SHORT SLINGS/CHAINS Four lifting slings or chains with each having a 2,500 lbs. capacity •...
  • Page 6 LT-PM60012LN3 3.6.2. Constructing a New Pad Use only concrete for new pad construction. Do not use substitute • (4) Ø 0.63 materials since they lack the rigidity for CUBE placement. MOUNTING • Observe local building practices for pad construction. Charles HOLES recommends that the pad should extend a minimum of 8”...

  • Page 7: Cube Wiring And Equipment

    LT-PM60012LN3 3.8. CUBE Wiring and Equipment After the CUBE is properly mounted in the desired location, apply No-Ox where bus bar and other 2-hole lug connections will be made. Install ground and power connections. Always ground the equipment first, before making any other connections. WARNING Perform all bonding and grounding connections prior to any electrical and communications connections.

  • Page 8: Conduit Seals

    LT-PM60012LN3 3.8.4. Alarm Block Connections Two 10-position, labeled alarm blocks monitor components in the equipment compartment. See the electrical diagram for information about alarm connections. All connections are normally closed and will open upon alarm. 3.8.5. Equipment Bay Restraining Plate The CUBE can accommodate two sizes of customer supplied equipment bays.

  • Page 9: Specifications

    LT-PM60012LN3 7. SPECIFICATIONS 7.1. Regulatory Specifications • Designed to meet GR-487 GFCI: UL-943 Listed • If CUBEs are field-modified, a customer provided ETL field evaluation of the modified components may be required to re-establish ETL certification to UL standards. Consult local jurisdictions for guidance on a site-by-site basis. 7.2.
