1 : M.2 Key-M Socket (M2_M1)
Pin Signal Signal Pin
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NC 6
7 PERp3 NC 8
9 GND 10
11 PETn3 +3.3V 12
13 PETp3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PETp2 NA 26
27 GND NA 28
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 36
37 PETp1 38
39 GND NA 40
41 PERn0 NA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETp0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
2 : M.2 Key-E Socket (M2_E1)
Pin Signal Signal Pin
1 GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7 GND NA 8
9 CNV_WGR_D1- CNV_RF_RESET 10
11 CNV_WGR_D1+ NA 12
13 GND MODEM_CLKREQ 14
15 CNV_WGR_D0- NA 16
17 CNV_WGR_D0+ GND 18
19 GND NA 20
21 CNV_WGR_CLK- CNV_BRI_RSP 22
23 CNV_WGR_CLK+
33 GND CNV_BGI_DT 32
35 PETp CNV_RGI_RSP 34
37 PETn CNV_BRI_DT 36
39 GND NA 38
41 PERp NA 40
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND SUSCLK 50
53 CLKREQ# PERST0# 52
55 WAKE# W_DISABLE1# 54
57 GND W_DISABLE2# 56
59 CNV_WT_D1- NA 58
61 CNV_WT_D1+ NA 60
63 GND NA 62
65 CNV_WT_D0- 64
67 CNV_WT_D0+ NA 66
69 GND NA 68
71 CNV_WT_CLK- NA 70
73 CNV_WT_CLK+ +3.3V 72
75 GND +3.3V 74
3 : USB 2.0 Connector (USB2_7_8)
Pin Signal Name Signal Name Pin
1 USB_PWR USB_PWR 2
3 -A -B 4
5 +A +B 6
7 GND GND 8
9 DUMMY 10

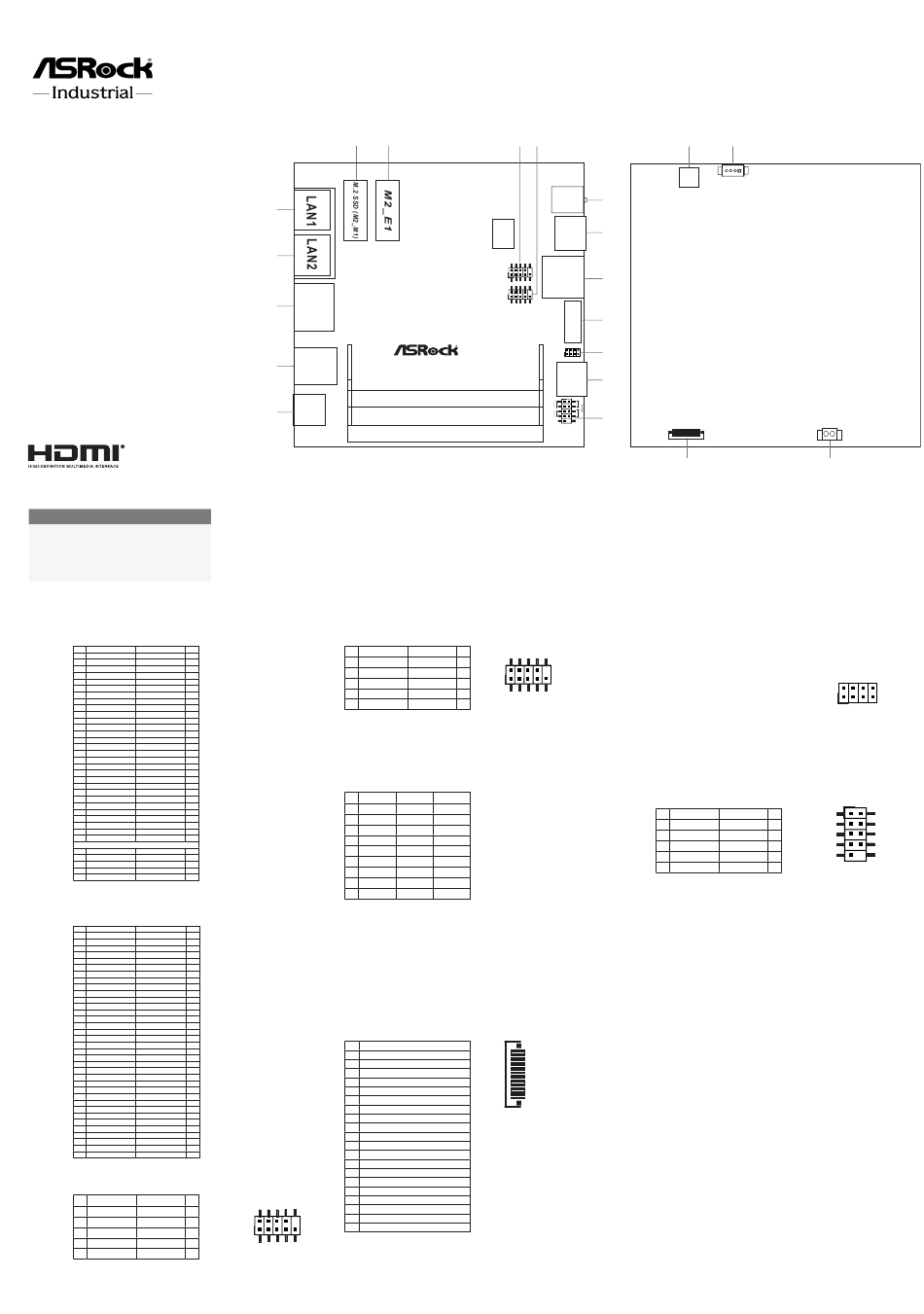

Jumpers and Headers Setting Guide
1 2
75 74 2 1
16
1 2 74 75
15
HDMI_DP_1:
14
Bottom: HDMI
Top: DP
USB3_1_2
13
(USB3.2 Gen2):
Bottom: USB3_1
Top: USB3_2
DDR4_B1 (Support DDR4 Only)
12
DC_JACK1
DDR4_A1 (Support DDR4 Only)
4 : COM Port Header (COM1) (RS-232/422/485)
Pin Signal Name
1 DDCD#1
3 TTXD1
5 GND
7 RRTS#1
9 RRI#1
• This motherboard supports RS232/422/485 on COM1 port. Please refer to the table
below for the pin definition. In addition, COM1 port (RS232/422/485) can be
adjusted in BIOS setup utility > Advanced Screen > Super IO Configuration. You
may refer to our manual for details.
COM1 Port Pin Definition
Pin RS232 RS422
1 DCD
2 RXD RX+
3 TXD TX+
4 DTR
5 GND GND
6 DSR
7 RTS
8 CTS
9 N/A
5 : Audio Jack (AUDIO1)
6 : USB4/Thunderbolt
7 : USB 3.2 Gen2 Ports (USB3_3_4)
8 : SATA3 Port (SATA3_0)
Pin Signal Name
1 GND
2
SATA0_TXP
3 SATA0_TXN
4 GND
5
GND
6 SATA0_RXN
7 SATA0_RXP
8
GND
9 GND
10 GND
11
12
13
14
15
16
17
2 10
18 GND
19 GND
20 GND
1 9
3 4
AUDIO1
TC_T0 (Type C):
BIOS
USB4 /
ROM
Thunderbolt 4 TM
USB3_3_4
(USB3.2 Gen2):
1
Bottom: USB3_3
USB2_7_8
Top: USB3_4
1
COM1
SATA3_0
1
Industrial JP1
TC_UD1 (Type C):
USB3/DP
Signal Name Pin
2 10
RRXD1 2
DDTR#1 4
DDSR#1 6
CCTS#1 8
1 9
10
RS485
TX- RTX-
N/A
RTX+
RX- N/A
GND
N/A N/A
N/A N/A
N/A N/A
N/A N/A
TM
4 Type-C Port (TC_T0)
20
1
NC
+5V
+5V
+5V
+5V
+5V
NC
17 18
1
FAN1
PWR_BTN1
5
6
7
8
9
10
11
ESPI1
1
20
9 : JP1
1-2 : SIO AT Mode
(Default Open: SIO ATX Mode)
4-6 : Clear CMOS
3-4 : Auto Clear CMOS
5-7 : DACC*
* Auto clear CMOS when system boot improperly.
10 : USB3/DP Type-C Port (TC_UD1)
11 : System Panel Header (PANEL1)
Pin Signal Name Signal Name Pin
1 HDLED+ PLED+ 2
3 HDLED- PLED- 4
5 GND PWRBTN# 6
7 RESET# GND 8
9 DUMMY 10
12 : DC-In Jack (DC_IN1)
13 : USB 3.2 Gen2 Ports (USB3_1_2)
14 : Top : DisplayPort (DP1)
Bottom : HDMI Port (HDMI1)
15 : RJ-45 LAN Port (LAN2)
16 : RJ-45 LAN Port (LAN1)
BAT1
1
19
2 8
1 7
1 2
9 10
