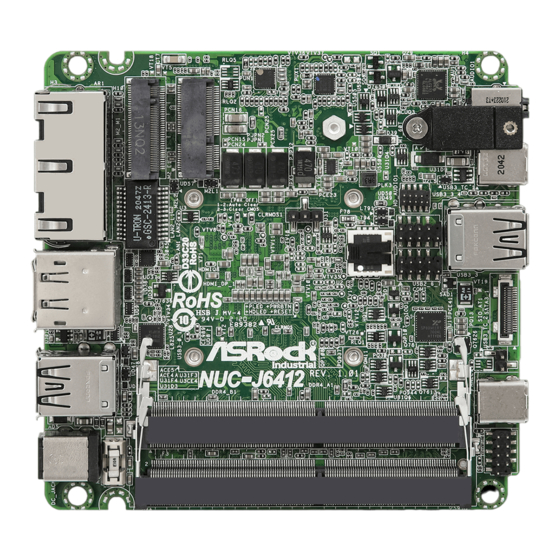

ASROCK Industrial NUC-J6412 Settings Manual

NUC-J6412
The terms HDMI ® and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
Revision History
Date Description
July 20, 2021 First Release
1 : M.2 Key-M Socket (M2_M1)
2 : M.2 Key-E Socket (M2_E1)
3 : Clear CMOS Header (CLRMOS1)
1-2 : Auto Clear (PWR OFF)
2-3 : Clear CMOS
3 2 1
Jumpers and Headers Setting Guide
Top View:
4 : Front Panel Audio Header
Signal
PIN PIN
Name
2 AGND 4
LIN1_R_
1 3
IN
5 : USB 2.0 Connector (USB2_6_7)
6 : COM Port Header (RS232/422/485)
RRXD1
DDTR#1
DDSR#1
CCTS#1
1
RRTS#1
GND
TTXD1
DDCD#1
* This motherboard supports RS232/422/485 on COM1 port. Please
refer to below table for the pin definition. In addition, COM1 port
(RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Configuration. You may refer to our user manual for
details.
PIN
1 DCD, Data Carrier Detect
2
3
4 DTR, Data Terminal Ready
5
6 DSR, Data Set Ready
7 RTS, Request To Send
8
9
7 : Audio Jack (AUDIO1)
8 : USB 3.2 Gen2 Type-C Port (USB3_TC_1)
9 : Top : USB 2.0 Port (USB_4)
Bottom : USB 3.2 Gen2 Port (USB3_3)
10 : SATA3 Port (SATA3_1)
Signal Signal Signal Signal
PIN PIN PIN
Name Name Name
NC 6 LIN1_JD 8 LIN2_JD 10
LIN1_L_ LIN2_R_ LIN2_L_
5 7 AGND 9
IN OUT
NC
DUMMY
N/A
RRI#1
COM1 Port Pin Definition
RS232 RS422 RS485
TX- RTX-
RXD, Receive Data TX+ RTX+
TXD, Transmit Data RX+ N/A
RX- N/A
GND GND GND
N/A N/A
N/A N/A
CTS, Clear To Send N/A N/A
N/A N/A N/A
11 : SIO_AT1
Open : ATX Mode
Short : AT Mode
Name
12 : USB 3.2 Gen2 Type-C Port (USB3_TC_2)
NC
OUT
13 : System Panel Header (PANEL1)
1
HDLED+
PLED+
HDLED-
PLED-
GND PWRBTN#
RESET# GND
DUMMY
14 : DC-In Jack (DC_IN1)
15 : Top : USB 2.0 Port (USB_1)
Bottom : USB 3.2 Gen2 Port (USB3_0)
16 : Top : DisplayPort (DP1)
Bottom : HDMI Port (HDMI1)
17 : RJ-45 LAN Port (LAN2)
18 : RJ-45 LAN Port (LAN1)
1
