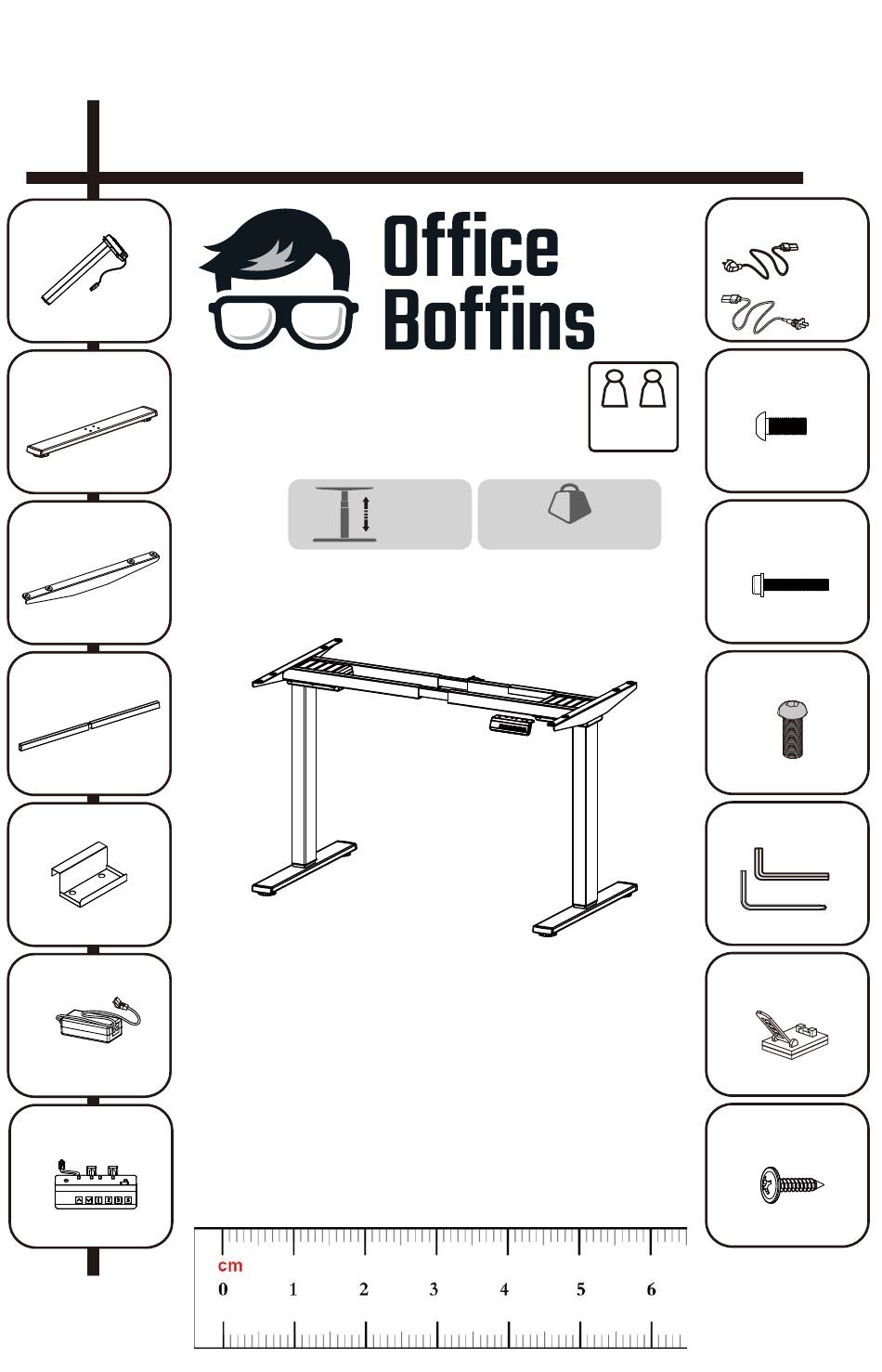

A-2 PCS
Legs
B-2 PCS
Foot
C-2 PCS
Beam end pieces
D-2 PCS
Beam
E-1 PC
Bracket
F-1 PC
Control box
G-1 PC
Control panel
Min 735mm
Max 1205mm
E1-HADJDM125
ASSEMBLY
INSTRUCTIONS
2 PERSON
ASSEMBLY
125kg(275lbs)
H-2 PCS
UK Plug
EU Plug
M-A
8 PCS
M8×20mm
M-B
8 PCS
M6×35mm
M-C
4 PCS
M6×18mm
M-D
2PCS
4mm
5mm
Allen key
M-E
5 PCS
Cable clips
M-F
2 PCS
19mm
19mm
Advertisement
Related Manuals for Office Boffins E1-HADJDM125
Summary of Contents for Office Boffins E1-HADJDM125
- Page 1 C-2 PCS Max 1205mm 8 PCS 125kg(275lbs) M6×35mm Beam end pieces D-2 PCS 4 PCS Beam M6×18mm E-1 PC 2PCS Bracket Allen key F-1 PC 5 PCS Control box Cable clips E1-HADJDM125 G-1 PC 2 PCS 19mm 19mm Control panel...
- Page 3 Attach both parts C to the beam D - by pushing them in the frame. No screws are needed as they will be fitted to the frame in image 5. Loosen the 8× R pre-inserted beam screws with the allen key provided. Extend the frame to line up with the pre-drilled holes in the desktop.
- Page 4 Carefully lift the frame from the desk and insert bracket E under beam D as shown below, you can slide the bracket into position on the beam. Insert 4× M-C screws through the 2× part C into the desktop.
- Page 5 Attach 2× part A to the beam D using 8× M-A screws. Tighten the 8× R pre-inserted beam screws. R×8...
- Page 6 Attach the 2x part B to the legs A using 8x M-B screws. Attach part G to the desktop using 2× M-F screws as shown.
- Page 7 Connect part G, F & H as shown.
- Page 8 Put the control box F into the bracket E, then attach the cable to the desktop using part M-E as shown.
- Page 9 Plug the unit into a power socket. Adjust the feet to suit your requirements...
- Page 10 Plug the Power Cord into a 110v(EU) or 220V(UK) outlet 73.5cm(28.9")-120.5cm(4 4 7. ") 1 5kg(2 75lbs) 3 Memory presets...
