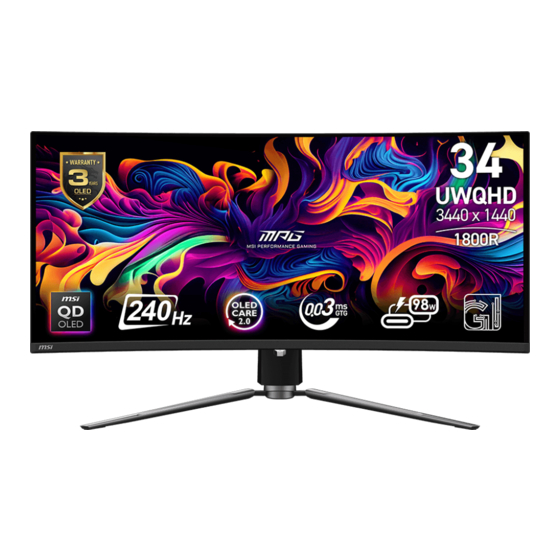

MSI MPG 341CQPX QD-OLED (3DD0) User Manual

Oled monitor

Hide thumbs

Table Of Contents

Quick Links

Download this manual

MPG Series

OLED Monitor

MPG 341CQPX QD-OLED (3DD0)

User Guide

Table of Contents

Need help?

Do you have a question about the MPG 341CQPX QD-OLED (3DD0) and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI MPG 341CQPX QD-OLED (3DD0)

Page 1 MPG Series OLED Monitor MPG 341CQPX QD-OLED (3DD0) User Guide...
Page 2: Table Of Contents
Image ........................15 Input Source ......................15 PIP/PBP ........................ 16 Navi Key ........................ 17 Settings ......................... 17 MSI OLED Care ..................... 18 Specifications ......................21 Preset Display Modes ....................23 Troubleshooting......................25 Safety Instructions ...................... 26 TÜV Rheinland Certification..................28 Regulatory Notices .....................
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor MPG 341CQPX QD-OLED Documentation Quick Start Guide Stand Stand Base with Screw(s) Accessories...
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align the stand to the monitor groove. 2. Push the stand towards the monitor groove until it locks in place. 3. Connect the base to the stand and tighten the base screws to secure the base. 4.
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ -5° 20° 100mm 30° 30°...
Page 6: Monitor Overview
Monitor Overview...
Page 7 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Jack Macro Key To activate OSD Application. Navi Key Power Button HDMI™...
Page 8 Headphone Jack Kensington Lock...
Page 9: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5.
Page 10: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙...
Page 11: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision Color Temperature ∙ ∙ Low Blue Light Optix Scope ∙ ∙ Brightness PIP/PBP ∙ ∙ Contrast AI Vision ∙ ∙...
Page 12 G.I. 1st Level Menu 2nd/3rd Level Menu Description Auto ∙ Auto allows the monitor to automatically switch between USB input sources, such as keyboards, Upstream mice or other USB devices. ∙ Users can also designate Upstream port or USB Type C Type-C as the only USB signal source.
Page 13: Gaming
Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode Premium Color ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply your mode type. Racing Night Vision ∙...
Page 14: Professional
1st Level Menu 2nd/3rd Level Menu Description Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status » PIP/PBP Set to OFF » Optix Scope » Screen Size Set to Auto Professional 1st Level Menu 2nd Level Menu Description Pro Mode...
Page 15: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Color Temperature Cool ∙...
Page 16: Pip/Pbp
PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ∙ PIP (Picture in Picture) allows users to simultaneously display multiple video sources on Source HDMI™ 1 one screen. One program is displayed on the full screen at the same time as one or more other HDMI™...
Page 17: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Smart Crosshair Alarm Clock Input Source PIP/PBP Mode Refresh Rate Info. On Screen Night Vision Optix Scope Settings 1st Level Menu...
Page 18: Msi Oled Care
USB Type-C connector, which can deliver up to 98W (20V/4.9A). Reset ∙ Users can Reset and restore settings to original OSD Default in any mode. MSI OLED Care 1st Level Menu 2nd/3rd Level Menu Description Pixel Shift Slow ∙...
Page 19 1st Level Menu 2nd/3rd Level Menu Description Static Screen ∙ If Static Screen Detection is set to ON: Detection • When detecting static visuals over long periods of time, the monitor reduces brightness to prevent screen burn-in. • Once detecting moving visuals, the monitor restores its previous brightness setting.
Page 20 ∙ Reducing effect depends on Brightness/ DisplayHDR setting. OLED Panel Info. ∙ This field shows the information of MSI OLED Care. * HDMI™ VRR (Variable Refresh Rate) synchronizes with Adaptive-Sync (ON/ OFF). For VRR ON/OFF status, please check Adaptive-Sync.
Page 21: Specifications
Specifications Monitor MPG 341CQPX QD-OLED Size 34.18 inch Curvature 1800R Panel Type QD-OLED Resolution 3440 x 1440 (UWQHD) Aspect Ratio 21:9 Brightness Typical SDR: 250 nits Peak HDR: 1000 nits Contrast Ratio 1500000:1 Refresh Rate 240Hz Response Time 0.03ms (GTG) ∙...
Page 22 Monitor MPG 341CQPX QD-OLED VESA Mounting ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x D x H) 812 x 318 x 427 mm 8.9 kg Weight...
Page 23: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Mode Standard Resolution HDMI™ USB-C 2560x1440 @60Hz @120Hz WQHD 3440x1440 @50Hz @60Hz @100Hz @120Hz @165Hz @240Hz Video 720P Timing 1080P @60Hz Resolution @120Hz 2160P @30Hz @60Hz @120Hz 2560x1080P...
Page 24 PIP Mode (Not Support HDR) Standard Resolution HDMI™ USB-C Full HD 1920x1080 @60Hz 2560x1440 @60Hz @120Hz WQHD 3440x1440 @50Hz @60Hz Video 720P Timing 1080P @60Hz Resolution @120Hz 2160P @30Hz @50Hz @60Hz PBP Mode 1 (Not Support HDR) Standard Resolution HDMI™ USB-C Video 720P...
Page 25: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on.
Page 26: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
Page 27 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
Page 28: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.
Page 29: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
Page 30: Weee Statement
Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
Page 31: Environmental Policy
Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
