Summary of Contents for Livall PikaBoost 2
- Page 1 User Manual Version: V1.2 Revised Date: 18 October 2024...
- Page 2 We want you to get out there and have fun. But, first... please read the manual. If you have any more questions, check out our instructional videos or contact our support team via email. Contact us for help here: Website: www.livall.com Email: user@livall.com...
- Page 3 Instructions for Use This manual is not intended as a detailed user, service repair, or maintenance manual Please consult LIVALL technicians for service, repairs, or maintenance. The Basics of Reading • Whether you're new to cycling or an experienced rider, please take the time to read the Manual before using PikaBoost for your cycling adventures.
- Page 4 PikaBoost provides. *Note that this is a general manual. LIVALL reserves the right to make changes to products and designs. The products you own may not have the same style as the pictures shown in this...
-
Page 5: Pre-Ride Checklist
Pre-ride Check List Before Your Each Ride Before starting your ride, perform a safety check on a flat surface away from traffic. If any part fails the safety check, have it inspected and repaired before using the PikaBoost. Safety Check Steps Involved Seat Post •... -
Page 6: Important Safety Information
If you are not sure or you don't feel comfortable inspecting or repairing your PikaBoost, consult LIVALL technicians. Regular maintenance, frequent inspections, and frequent replacement of parts are necessary for safe use, high-performance PikaBoost. - Page 7 LIVALL technicians. Examples of modifications include this partial list: - Physically altering existing parts (sanding, filing, drilling, etc.) - Purchasing and using lithium batteries that have not been approved by LIVALL - Adding a motor or engine - Installing accessories...
- Page 8 WARNING! In non-riding conditions, be sure to use the APP or brake controller to switch PikaBoost to standby status to avoid triggering the PikaBoost motor and providing assistance to the bicycle while walking, which can result in serious injury or death. New components or accessories could interfere with the operation of your PikaBoost use, includ- ing the power assistance level, brake sensitivity, and the tightness of the bracket.
- Page 9 - During the charging process, if there is any unusual smell or the charger's casing becomes overheated, please immediately stop charging and consult LIVALL technicians for repairs. - During the charging process, always pay attention to the charging status and do not leave it unattended for a long time.
-
Page 10: Basic Information
Basic Information Part Name PikaBoost 2 1 Power Button 4 USB-C Charging Port 7 Locking Screw Power on/off installing/dismantling the PikaBoost. 2 Power Indicator 5 Housing Lid 8 Tire Light up and display battery level after powering on. 3 Tail Light... - Page 11 Compatible Parameter of the Seat Post • Seat Post of the Bicycle Compatible shapes: Round & D Shape Compatible diameter: Φ25.4~34.9mm **Not compatible with carbon seat posts** • The Rear Tire of the Bicycle The tread pattern of the rear tire of a bicycle can affect the friction noise between the PikaBoost tire and the rear wheel of the bicycle.
-
Page 12: Specification
Specification 3kg / 6.6lbs Weight Dimension 436*89*131mm 32km/h Top Speed (can vary between contries) Power 250W Rated capacity 7.2Ah Charging Port Type-C Waterproof Level IPx4 Package Content Check that the package is complete and undamaged. Your PikaBoost package contains the following items: 1. -
Page 13: Preparation Work
PikaBoost device and battery case before using. If the device does not turn on, consult LIVALL technicians for help. Download LIVALL Riding APP Scan the QR code to download the LIVALL Riding APP. You can also search for “LIVALL Riding" in APP Store/Google Play and download it. - Page 14 APP Pairing To use the PikaBoost, open the LIVALL Riding APP, and pair it with the PikaBoost device before the first use. Follow these steps: 1.Turn on the PikaBoost •Long press the power button on PikaBoost until the power indicator light turns on a tone signal sounds.
- Page 15 3.Change the connection password •The default connection password is 000000 after the first APP connection. It is recommended to change the connection password of your PikaBoost to avoid unauthorized connections. 4.Change the device name •It is recommended to rename your PikaBoost device on the APP to easily identify it among others.
-
Page 16: Select Country/Region
6. Lift up the PikaBoost Wheel. Calibration PikaBoost Installation Calibration Lift up Before installing the device , please open the LIVALL Riding APP, enter the PikaBoost page, click "Install Calibration-Lift Up", and lift the PikaBoost wheel until it is automatically completed. - Page 17 First Installation of PikaBoost Install the PikaBoost Check if the seat post is firmly tightened Screw in alternately Make sure the seat post lock is securely To guarantee the uniform forces,alternately tightened for a safe attachment. screw in the clamp and unit into the seat post until they will not drop.
-
Page 18: Checking Method
*Continue tightening the screw until it Re-tighten reaches a solid fit. Note: Before installing the device , please open the LIVALL Riding APP, enter the PikaBoost page, click "Install Calibration-Lift Up", and lift the PikaBoost wheel until it is automatically completed. -
Page 19: Calibration Method
1. Park the bicycle on a level surface and make sure it is standing upright. Do not tilt the bike. Note: Do not tilt the bike during calibration. 2. Open the LIVALL Riding APP, enter the PikaBoost page, click "Install Calibration-Push Down", the wheel and the bicycle rear tire are automatically pressed and calibrated. PikaBoost... - Page 20 Recharging and Power Supply via PikaBoost Recharging the PikaBoost The provided battery case is shipped with only a partial charge. Do remember to chargeyour PikaBoost on your first ride for optimal performance. Plug the provided Type-C cable into the Type-C port on the PikaBoost house/battery case and the charger (self-supplied), then plug the charger into an outlet to start charging.
- Page 21 Power Supply with PikaBoost The PikaBoost serves as a mobile power source to power your other devices. Plug the provided Type-C cable into the Type-C port on the PikaBoost house/battery case and the charging port of the device that needs to be charged. When the power supply starts, the power indicator displays the following states: >75% If the power indicator is blinking or not lighting...
- Page 22 Select and Switch Riding Modes 1. Standby PikaBoost doesn't engage in assisting the bike or creating resistance. WARNING! When in a non-riding state such as walking with the bicycle, it is important to switch the PikaBoost from riding mode to standby mode using the Bling remote controller or APP. This will avoid the risk of serious injury or death if the PikaBoost starts the motor to provide assistance to the bike during walking.
- Page 23 2.Power Assist Mode Assistance is only provided during pedaling. •To speed up, the assistance increases as the pedaling frequency is accelerated. •To slow down, the assistance decreases as the pedaling frequency is reduced.
- Page 24 3. Eco Assist Mode During riding, PikaBoost powers your bike when detecting uphill roads. • No support or resistance on flat roads. • Extra kinetic energy is converted to electrical energy during downhill roads.
- Page 25 4.Cruise Mode When PikaBoost detects a ride, it powers your bike and maintain the current speed, allowing you to enjoy riding at your current speed without pedaling. •When you need to accelerate, you can increase the pedaling frequency or click the acceleration button of the remote control, and the PikaBoost power will increase accord- ingly.
- Page 26 5. Workout Mode PikaBoost doesn't assist your cycling, only adds resistance while converting kinetic energy into electricxqal energy.
- Page 27 Switch the Riding Modes 1. Switch the riding modes via the APP Enter the PikaBoost page on the APP and tap on the Riding Mode to select one. 2. Switch the riding modes via the remote controller If the remote control is installed on the rear wheel brake handle of the bicycle and paired with PikaBoost successfully.
-
Page 28: Installation Of The Remote Controller
Installation and Usage of the Remote Controller Installation of the Remote Controller If your country/region supports auto assist ride type, you can enjoy automatic riding after mounting the remote controller to the bike handlebar and matching it with your PikaBoost. Functioning Principle After successfully mounting the remote controller to the handlebar near the rear brake and the brake is pressed, the brake sensor keeps its distance from the magnet, so the sensor fails... -
Page 29: Matching Method
Matching Method For the first use of the remote controller, you need to match the PikaBoost with the remote controller via the APP to ensure normal use. Connecting to the BR series remote control Connecting for the first time Within 5 m Blink two times Turn on the Bling remote controller, which After successful connection, the indicator... -
Page 30: Mounting Method
Mounting Method Your package contains the following items: Bling Remote Controller Magnet Rubber Band 3M sticky pads Mount the receiver to the handlebar next to the rear brake with the supplied rubber band. handlebar of rear brake Peel off the sticky adhesive Peel off the sticky adhesive pads at the back of the pads at the back of the... - Page 31 Check the Mounting Position It is necessary to check whether the mounting position is the best one after attaching the remote controller to the handlebar. If the position is not sensitive enough to detect the brake signal, you need to adjust the position of the brake sensor and magnet until it reaches the most sensitive position.
-
Page 32: Battery Replacement
Usage After successfully mounting the paired remote controller to the handlebar, you can switch the riding modes by single pressing or double-pressing the button on the remote controller. Beep from Brake Controller: Beep from Brake Controller: Riding Modes Power Button For countries/regions that For countries/regions that do not support Cruise Mode... -
Page 33: Safety Information
Safety Information 1. Keep the product dry. Do not use the product in places with dust, moisture, or dirt to avoid internal circuit malfunctions. 2. Do not use this product during thunderstorms. Thunderstorms may cause equipment malfunctions or motor hazards. 3. -
Page 34: Warranty Policy
Warranty Policy 1. Basic Information • For product malfunctions, please contact LIVALL customer support directly. For more details, visit livall.com or email pikaboost@livall.com. • The warranty period of the product is subject to the warranty period announced by LIVALL on the official website. - Page 35 Safe Operating Tips •In non-riding situations, always switch the PikaBoost from riding mode to standby mode by using the remote controller or APP. This prevents PikaBoost from providing assistance to the bicycle by starting the motor while walking, which could pose a risk of serious injury or death.
- Page 36 Disclaimer: THE MANUFACTURER, SELLER, AND DISTRIBUTORS ARE NOT RESPONSI- BLE FOR ANY ACCIDENTS, INJURIES, OR PROPERTY DAMAGE CAUSED BY IMPROPER USE, OPERATION, OR RIDING. Please note that this statement is intended to remind you to use PikaBoost and the power battery (lithium battery) correctly and safely to reduce potential risks and damages.
- Page 37 Local Laws The regulations regarding the use and operation of E-bike conversion kits may vary depend- ing on the country, state/province, and city of residence. In many cases, the regulations for using E-bike conversion kits are the same as those for regular bicycles. However, each jurisdiction may have laws regarding permits and regulations for E-bike conversion kits, areas where they can be ridden, minimum riding age, or required equipment (such as helmets).
- Page 38 The maximum RF Output Power Bluetooth BLE 2402-2480MHz -3.30dBm Hereby, LIVALL Tech Co., Ltd. declare that the radio equipment type Pikaboost is compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://livall.com/pages/product-documents.
- Page 39 Contact us Website: www.livall.com E-mail: user@livall.com...
Need help?
Do you have a question about the PikaBoost 2 and is the answer not in the manual?
Questions and answers
The picaboost remote controller is not connecting with the picaboost. It has been connected since I had it several weeks ago but when I swapped batteries today it didn’t connect. The app says not paired. I tried swapping the batteries back but no joy.
To troubleshoot the connection issue between the Livall PikaBoost 2 remote controller and the PikaBoost:
1. Ensure the remote controller is within 5 meters of the PikaBoost.
2. Turn on the remote controller; it should automatically connect to the PikaBoost.
3. Check if the indicator blinks twice quickly, confirming successful connection.
4. If connection fails, unbind the remote controller using the app.
5. Rebind the remote controller to the PikaBoost through the app.
6. Make sure the brake sensor and magnet are properly aligned, as this affects signal detection.
7. If the issue continues, check for Bluetooth stability or try restarting the devices.
This answer is automatically generated

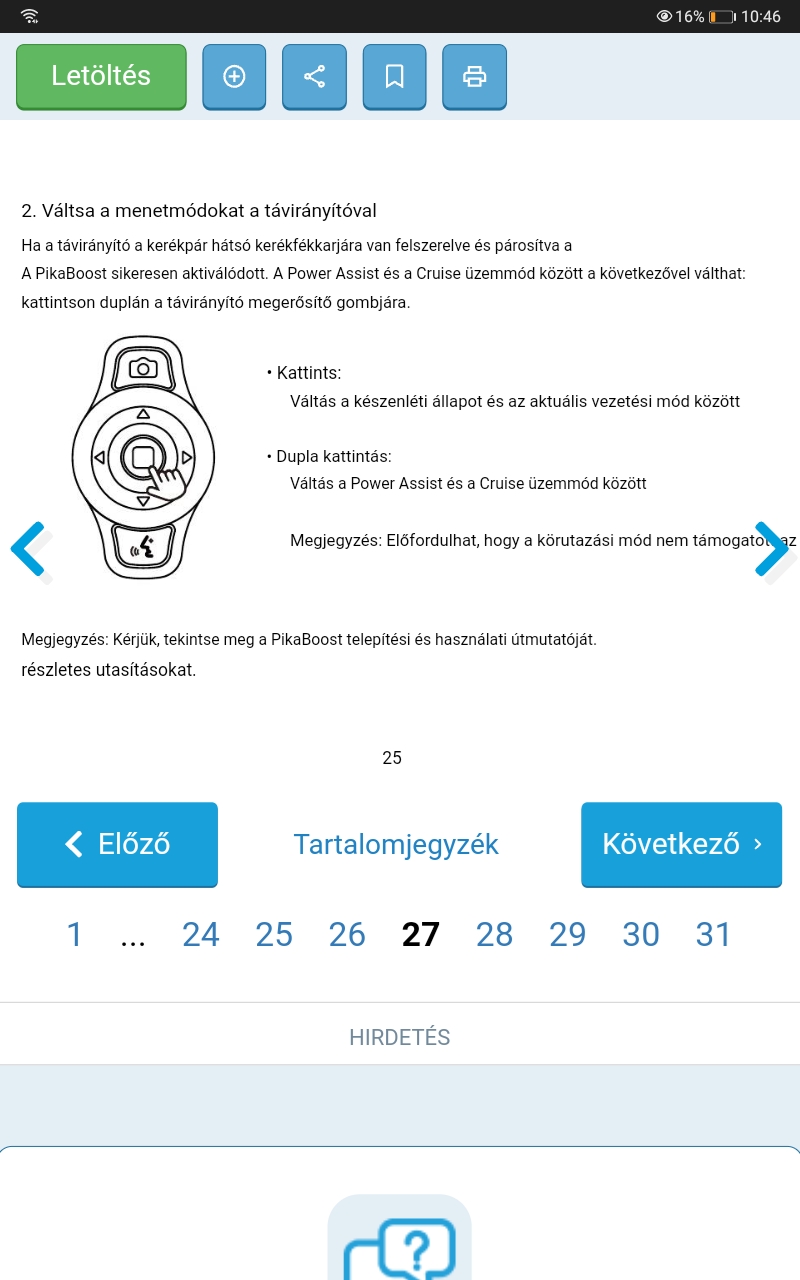

**** nem támogatott a Cruise mód?
