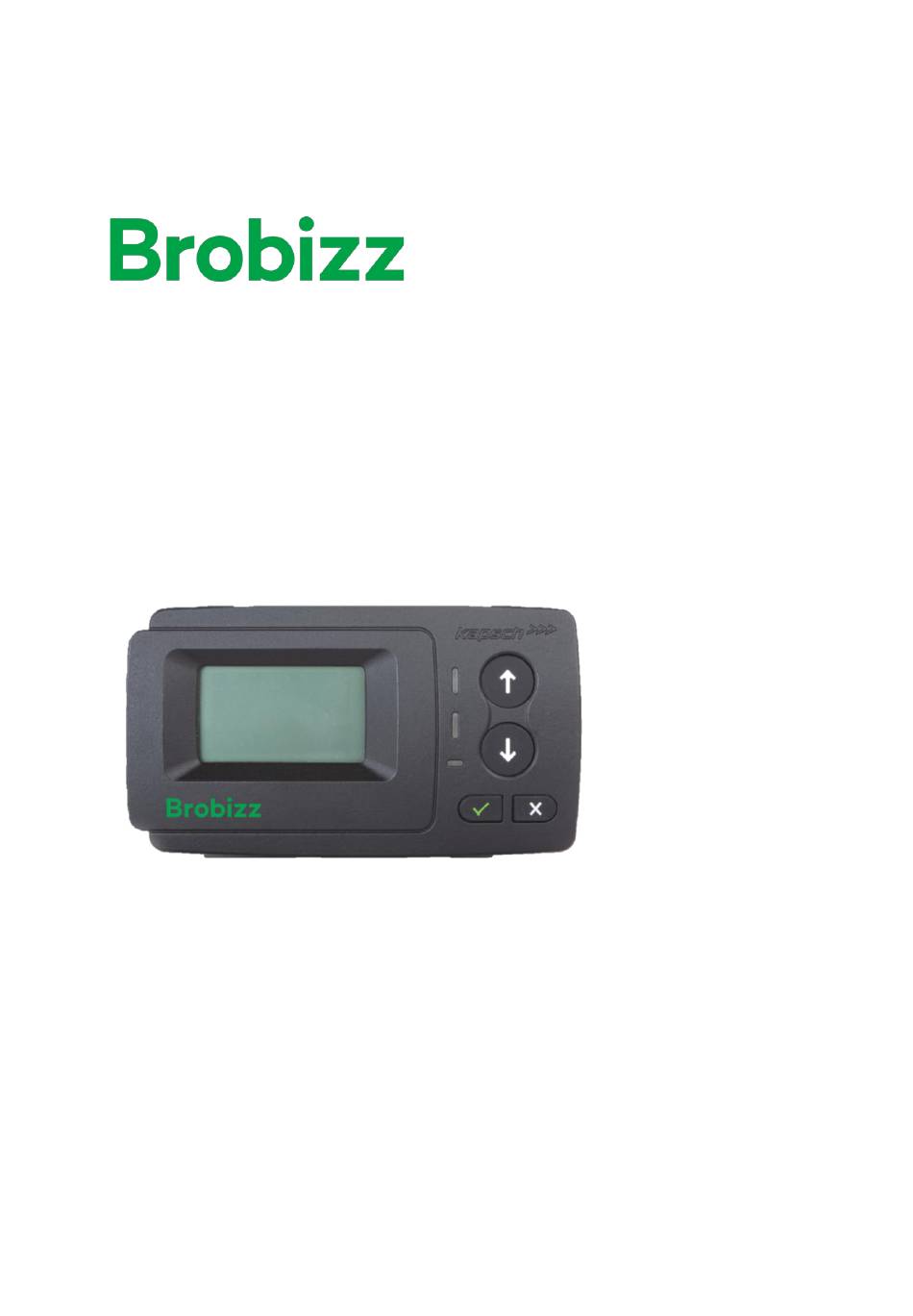

  • Page 1 Public Content 22-10-2024 Operating manual Toll Box GNSS OBU 5310-22A Copyright © Brobizz A/S | The content and information in this document belong to Brobizz A/S and are protected by copyright. All rights, especially rights to communication, distribution, reproduction, reprinting, and translation, remain reserved by Brobizz A/S, even in excerpts.

  • Page 2: Table Of Contents

    Public Content Table of contents Docking Station Installation ................... 3 Getting Started with the Toll Box ................... 3 2.1. The Buttons of the Toll ....................4 2.2. The LED-lights of the Toll Box ..................4 2.3. OBU-5310 LED Illumination ..................5 2.4.

  • Page 3: Docking Station Installation

    Public Content 1. Docking Station Installation Please refer to the installation guide available here: get started with the Toll Box. NOTE: Please check the specifications of your vehicle's windshield in the vehicle documentation. The device cannot be used in vehicles with metallized windshields. The windshield must be non-metallized or have an area without metallization where the device should be placed to ensure normal function.

  • Page 4: The Buttons Of The Toll

    Public Content 2.1. The Buttons of the Toll There are several buttons on the Box that can be used to navigate the Box's function Buttons to scroll up and down in overview Button to cancel or go back to the homepage Button to confirm and select menu options...

  • Page 5: Obu-5310 Led Illumination

    Public Content 2.3. OBU-5310 LED Illumination The LED lights on the Toll Box indicates its status. If the status of the Box changes, the LED light will change colour accordingly: Status Normal operational status. The Box is configured correctly and can be used for Green driving.

  • Page 6: Sound Indications Of The Toll Box

    Public Content 2.4. Sound Indications of the Toll Box The Toll Box can emit various beeps that you should be aware of. Beeps will sound simultaneously with changes or updates to the Box's LED lights. In the overview below, you can see the different sounds and their meanings: OK Beep One long beep...

  • Page 7: Activation Of The Toll Box

    Public Content 3. Activation of the Toll Box Before the Toll Box can be used, it must be activated. This is done by entering the correct vehicle data and payment method in Broizz’ self-service. Additionally, check if the correct vehicle data is configured on the Box by following the steps below the first time the Box is used.

  • Page 8: Operation Of The Toll Box

    Public Content 4. Operation of the Toll Box 4.1. Main Interface The following view is the main screen off the Toll Box, once the vehicle data is added and the Box is active: You can access two submenus, "Settings" and "Info," by scrolling using the Up ...

  • Page 9: Submenus In Information

    Public Content 4.3. Submenus in Information 4.3.1. Message History In the message history, you can view previous messages received on the Box. 4.3.2. Serial Number You can find the Box's unique serial number under the "serial number" menu. 4.3.3. Customer Service Here you can find information on how to contact customer service.

  • Page 10: Power Connection

    The external power indication + sign is displayed on the Box screen NOTE: It is mandatory to follow this installation procedure. The manufacturer (Kapsch) and Brobizz A/S as- sume no responsibility for the proper functioning of the Toll Box in the event of incorrect power con- nection 5.2.

  • Page 11: Troubleshooting

    Public Content 6. Troubleshooting 6.1. Error codes The Toll Box can display various error codes on the display. The table below indicates the error code, de- scription of the problem, how the Box's LED lights and beeps will behave, as well as the cause and solu- tion for the error.
  • Page 12 Public Content • 3016 Red LED light Hardware error Contact Brobizz’ customer service • Not OK beep • 3018 Red LED light Hardware error Contact Brobizz’ customer service • Not OK beep • 4006 Red LED light Configuration error Ensure that the Box is connected to power. •...

  • Page 13: Reasons For Blocking Of The Toll Box

    Public Content • 17002 Red LED light Configuration error Ensure that the Box is connected to power. • Not OK beep The Box will restart when the battery voltage is above 20%, and the error will automatically be resolved. Contact Brobizz customer service if the error is not resolved.
