Instruction Manual

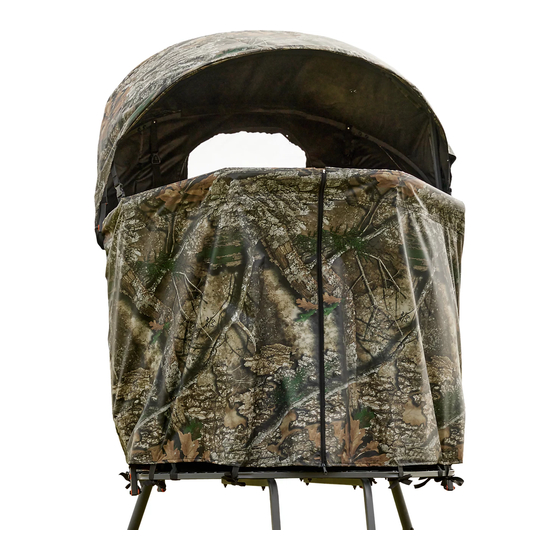

TRIPOD XLR BLIND KIT
ITEM:179554
TRIPOD NOT INCLUDED
Compatible with 178403 and 178404 Tripod Stands, not compatible with other models.
Thank you for your purchase of this quality Game Winner Product! In order to reduce your risk of injury, you
MUST read and thoroughly understand all of the safety warnings, usage instructions and other information
contained within the written and safety video instructions and warnings provided with this product and any
other hunting equipment used. Retain the instructional and warning materials and review them periodically
(at least once a year and always with any new user). Failure to follow all instructions and warnings may lead
to serious injury or death. DO NOT USE THIS PRODUCT UNTIL AND UNLESS YOU HAVE READ AND
THOROUGHLY UNDERSTAND ALL INSTRUCTIONS, SAFETY WARNINGS AND OTHER MATERIALS. If you
have any questions, do not use the product until you have contacted the manufacturer at 949-262-3416 or
email customerservice@innopower.biz.
Business Hours:
Monday through Friday, 8:00 am to 5:00 pm ET. If you are unable to speak with a
representative, please email or leave a voicemail with your contact information
and your email or call will be returned within one (1) business day.
For Customer Service, please:
Email customerservice@innopower.biz or call 949-262-3416
(Made In China)
1
Advertisement
Table of Contents
Related Manuals for Game Winner 179554
Summary of Contents for Game Winner 179554
- Page 1 Compatible with 178403 and 178404 Tripod Stands, not compatible with other models. Thank you for your purchase of this quality Game Winner Product! In order to reduce your risk of injury, you MUST read and thoroughly understand all of the safety warnings, usage instructions and other information contained within the written and safety video instructions and warnings provided with this product and any other hunting equipment used.
-
Page 2: Table Of Contents
Table of Contents Page Warnings ……………………………………………………………….. Parts List …………………………………………………………………….. Hardware / Tools Required ……………………………………....Product Diagram ....……………………………………..6 Assembly & Installation Instructions ………………………………….. 7-13 Care and Maintenance ……………………………………………………. 13 Warranty Information ……………………………………………………… 14 Note: Before beginning assembly of product, make sure all parts are present. -
Page 3: Warnings
WARNING! Thoroughly inspect this or any other Game Winner product(s) prior to use for signs of wear, rot, corrosion, cracks, fraying, deterioration and/or any other type of damage. DO NOT use this or any other Game Winner product(s) if they show evidence of wear, rot, corrosion, cracks, fraying, deterioration and/or any other type of damage. -
Page 4: Parts List
Parts List Camo Roof includes 3 Roof Support Bars preassembled through sleeves inside roof. (Straps(2) are preassembled on Rear Roof Support Bar) Middle Side Tubes Front Side Bars (strap with plastic buckle assembled on bar) Rear Side Bars Camo Skirt... -
Page 5: Hardware / Tools Required
Hardware Step M6X12 (with 2 steel washers and 1 locknut) Step M6X30 (with 2 steel washers and 1 locknut) Step M6X12 (with 2 steel washers and 1 locknut) Step M6X35 (with 4 nylon washers and 1 locknut) Step M8X75 (with 3 nylon washers and 1 locknut) -
Page 6: Product Diagram
Product Diagram Rear Roof Support Bar has straps assembled on support bar Front Side Bars (#3) have straps with plastic buckle assembled on bars TRIPOD NOT INCLUDED Camo roof can be folded down and wrapped up using two Hook & Loop Fasteners. -
Page 7: Assembly & Installation Instructions
Assembly & Installation Instructions Step 1a: REAR/BACK SUPPORT Locate Roof(#1) with three (3) Roof Supports. Spread out roof with camouflage facing down (black up). Position Roof Supports so front support (through camo sleeve), center (middle) and rear (has straps attached) CENTER are shown as in Figure 1a. - Page 8 Assembly & Installation Instructions Step 2: Install two Middle Side Tubes (#2) to the Middle Roof Support (#1) using four (4) M6x30 Bolts, eight (8) Steel Washers and four (4) Nuts as shown in Figure 2. Install bolts so nuts face upward.
- Page 9 Assembly & Installation Instructions Step 4a: Slide camo roof sleeve overtop both sides of Front Side Bar so Front Bar starts to curve as shown in Figure 4a. Figure 4a Curve Front Bar Step 4b: On one side, flex/arc Front &...
- Page 10 Assembly & Installation Instructions Step 5: At ground level , position assembled Camo Roof so camo is on outside. At ground level , remove one side of front shooting rail bolt and install Middle Side Tube to the inside of Tripod Shooting Rail using one (1) M8x75 Bolts, three (3) Nylon Washers and one (1) Nut as shown in Figure...
- Page 11 Assembly & Installation Instructions Step 6: At ground level , secure the Camo Roof . A: Attach two (2) plastic snap buckle webbings (on the Rear Roof Support Bar) to the Tripod Shooting Rail and tighten the webbings as shown in Figure 6. B: Attach two (2) plastic snap buckle webbings (on the Front Roof Support Bar) to the Tripod Platform and tighten the webbings as shown in Figure 6.
- Page 12 Assembly & Installation Instructions Step 7: At ground level , secure the Camo Roof to the Shooing Rail and Middle Roof Support Bar Side Sections Using Velcro secured as shown in Figure 7. Figure 7 Secure Camo Roof...
-
Page 13: Care And Maintenance
Assembly & Installation Instructions Step 8: At ground level , Slip Camo Skirt over and around shooting rail and secure the top to the shooting rail by Velcro ;Then tie all the straps at the bottom to the platform as shown in Figure 8. Zippered Door Note: Zipper must be centered to the Ladder . -
Page 14: Warranty Information
Game Winner product. I have read the warranty information and know that I can call Innopower Inc. at (949) 262-3416 or email Innopower Inc. at customerservice@innopower.biz with any questions or concerns that I may have about this or any other Game Winner product. Email filled out warranty application card to customerservice@innopower.biz or mail to INNOPOWER INC.
