GAS

Instruction Manual

6' X 6' HYBRID BLIND

MODEL #: PL600GW

STYLE #: 165842

For parts call our Customer Service Center at 800-345-6007

Business Hours: 8:00 am to 4:30 pm CST | info@huntriversedge.com

Table of Contents

Need help?

Do you have a question about the PL600GW and is the answer not in the manual?

Questions and answers

Summary of Contents for Game Winner PL600GW

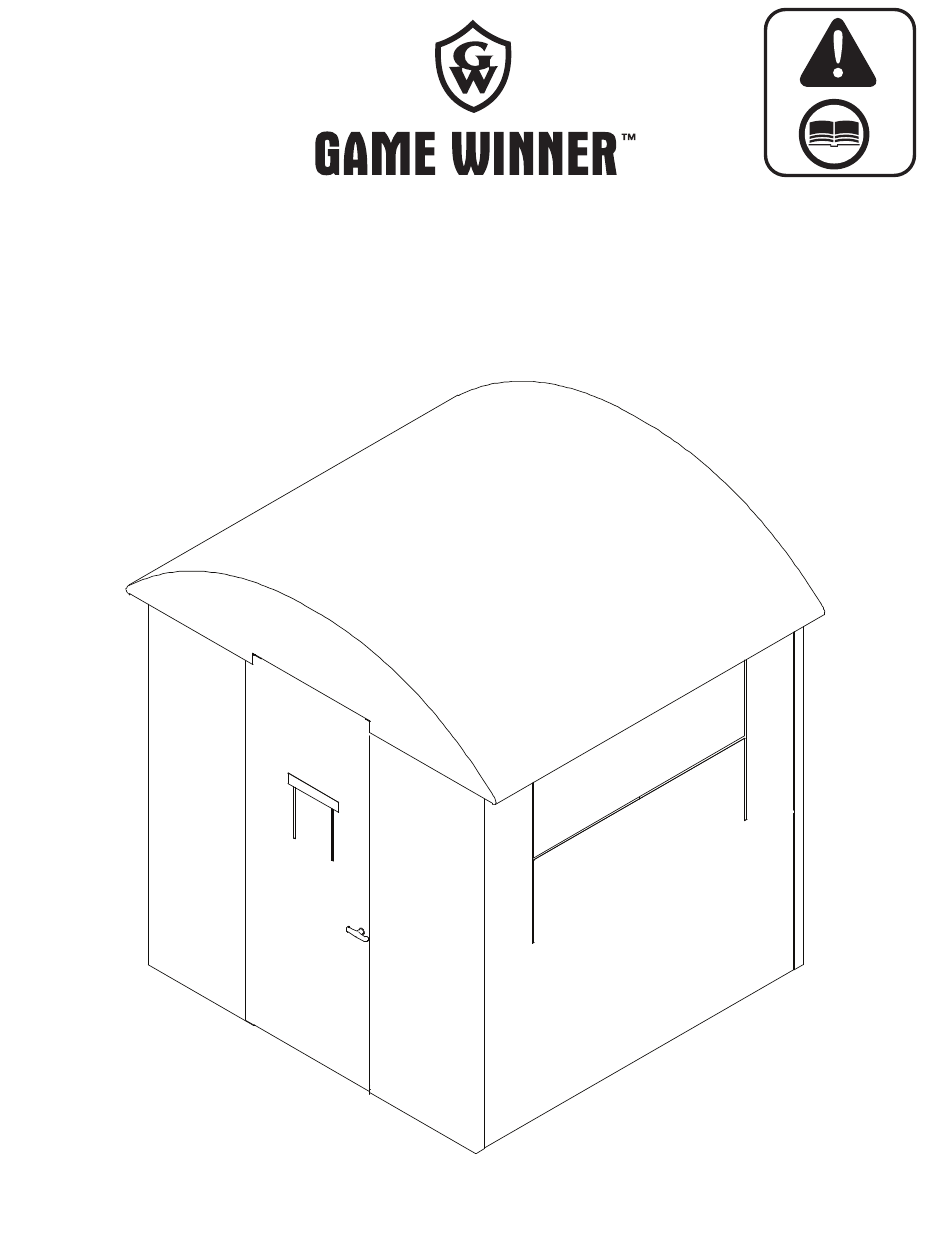

Page 1 Instruction Manual 6’ X 6’ HYBRID BLIND MODEL #: PL600GW STYLE #: 165842 For parts call our Customer Service Center at 800-345-6007 Business Hours: 8:00 am to 4:30 pm CST | info@huntriversedge.com © 2021 RETI All Rights Reserved | 39066 REV1: 06/08/2021...
Page 2: Table Of Contents
Instruction Manual : 6’ X 6’ HYBRID BLIND TABLE OF CONTENTS PAGE Warranty Information ..........................................2 Warnings ..............................................3 Parts List ..............................................4-9 Hardware/Small Parts List.......................................9-10 Tools Required ............................................10 Product Diagrams ........................................... 11-14 Assembly Instructions ........................................15-25 Notes ..............................................26-27 Note: Before beginning assembly of product, make sure all parts are present.
Page 3: Warnings
Instruction Manual : 6’ X 6’ HYBRID BLIND READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP WARNING WARNING Read, understand and follow all assembly, inspection KEEP ALL FLAME AND HEAT SOURCES AWAY FROM and use instructions provided before each use. Failure to THIS TENT FABRIC.
Page 4: Parts List
Instruction Manual : 6’ X 6’ HYBRID BLIND PARTS LIST (NOT TO SCALE) Item Part No. Image Description # 22864 BASE HUB # 22868 MIDDLE HUB # 22873 ROOF HUB ROOF MOUNT # 22876 MALE ROOF MOUNT # 22878 FEMALE HORIZONTAL # 22930 SUPPORT FEMALE...
Page 5 Instruction Manual : 6’ X 6’ HYBRID BLIND Item Part No. Image Description BASE HUB DOOR # 30063 SIDE VERTICAL # 30070 SUPOPRT LONG CORNER # 30094 DOOR TOP DOOR BOTTOM # 30097 RIGHT DOOR BOTTOM # 30098 LEFT TENSION TUBE # 30102 582 MM VERTICAL SUP-...
Page 6 Instruction Manual : 6’ X 6’ HYBRID BLIND Item Part No. Image Description VERTICAL # 30136 SUPPORT LONG DOOR STOP VERTICAL # 30189 SUPPORT SHORT CORNER VERTICAL # 39074 SUPPORT LOWER VERTICAL # 39076 SUPPORT UPPER ANGLED BRACE # 39078 UPPER STRAIGHT ANGLED BRACE # 39079...
Page 7 Instruction Manual : 6’ X 6’ HYBRID BLIND Item Part No. Image Description WINDOW # 39088 VERTICAL BACK WALL HORIZONTAL # 39089 SUPPORT MIDDLE FRONT HORIZONTAL # 39090 SUPPORT LOWER FEMALE FRONT HORIZONTAL # 39092 SUPPORT LOWER MALE FRONT HORIZONTAL # 39094 SUPPORT UPPER FEMALE FRONT...
Page 8 Instruction Manual : 6’ X 6’ HYBRID BLIND Item Part No. Image Description PLATE LATCH # 39174 DOOR HANDLE DOOR HANDLE # 39175 PLASTIC SEWN ROOF # 39038 PANEL BROWN SEWN SIDE PANEL # 39039 ZIPPER WINDOWS BROWN SEWN BACK PANEL # 39040 ZIPPER WINDOWS BROWN...
Page 9: Hardware/Small Parts List
Instruction Manual : 6’ X 6’ HYBRID BLIND Item Part No. Image Description SEWN FRONT # 39041 PANEL LEFT BROWN SEWN FRONT # 39042 PANEL RIGHT BROWN SEWN WINDOW # 39043 PANEL VERTICAL BROWN SEWN DOOR # 39044 PANEL BROWN HARDWARE LIST Item Part No.
Page 10: Tools Required
Instruction Manual : 6’ X 6’ HYBRID BLIND Item Part No. Image Description BOLT # 48153B 1/4 X 2 IN BOLT # 48271B 1/4 X 2-1/4 IN BOLT # 63282 1/4 X 1 IN SPACER PLASTIC # 15909 6 MM SPACER PLASTIC # 15908 2.5 MM...
Page 11: Product Diagrams
Instruction Manual : 6’ X 6’ HYBRID BLIND PRODUCT DIAGRAM - BASE...
Page 12 Instruction Manual : 6’ X 6’ HYBRID BLIND PRODUCT DIAGRAM - CENTER...
Page 13 Instruction Manual : 6’ X 6’ HYBRID BLIND PRODUCT DIAGRAM - ROOF...
Page 14 Instruction Manual : 6’ X 6’ HYBRID BLIND PRODUCT DIAGRAM - PANELS...
Page 15: Assembly Instructions
Instruction Manual : 6’ X 6’ HYBRID BLIND ASSEMBLY INSTRUCTIONS Do not tighten any nut and bolt combinations completely until instructions indicate to. Finger tighten plus one turn of a wrench only! This will temporarily hold the locknut on the bolt while helping alignment of all parts! STEP 1 1.
Page 16 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 3 3. Attach the four middle hubs (2) to the (18) poles so that the snap buttons secure the parts together. SEE FIGURE 3. Attach the two (30) parts to the middle hubs (2) and the (15) and (17) poles as shown.
Page 17 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 5 5. Slide the four (19) poles into the middle hubs (2) so that the snap buttons secure the parts together. Pay attention to the orientation of the snap buttons. The snap buttons must face each other as shown and each through-hole must be located closer to the top.
Page 18 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 6B 6. Assemble the top tier frame of the blind to the rest of the frame by lifting it up and sliding the roof hubs (3) onto the rear (19) poles, the right and left front roof hubs (35, 36) onto the front (19) poles, and the door hubs (9) onto poles (10) and (16).
Page 19 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 8 8. Attach each set of angled braces (20, 21) to the four (19) poles using a 1/4-20 X 1-1/2 IN bolt (49) and 1/4-20 nut (56) for each set. SEE FIGURE 8. FIGURE 8 STEP 9 9.
Page 20 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 10 10. Attach the assembled roof to the rest of the blind frame using eight 1/4-20 X 1-1/2 IN bolts (49) and 1/4-20 nuts (56). SEE FIGURE 10. Pay attention to DETAIL B the orientation of the roof! The roof attaches on the inside of the roof hub (3, 35, 36) tabs.
Page 21 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 12 12. Attach the two side wall panels (42) to the blind DETAIL D DETAIL E frame by first hanging the panels from the top tier of the frame using the two D-ring straps and hook D-Ring and loop straps along the top edge of the panel.
Page 22 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 13 DETAIL G 13. Repeat similar process for back wall panel, slide the two (29) window poles into the sewn sleeves on the back wall panel (43). SEE FIGURE 11. Attach the back wall panel (43) to the blind frame by first hanging the panels from the top tier of the frame using the two D-ring straps and hook and loop straps along the top edge of the panel.
Page 23 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 15 15. Drape the roof panel (41) over the assembled roof DETAIL I frame. Secure the hook and loop attachment strips on the front and the back of the roof panel to the strips on the front and back wall panels and top tier of blind frame.
Page 24 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 17 17. With the door panel (47) laid out flat, flip the assembled door frame over onto the panel. Then, flip pole (14), top edge of panel and the two long Hook ends of cam straps over the frame.
Page 25 Instruction Manual : 6’ X 6’ HYBRID BLIND STEP 19 19. Attach the six vertical window panels (46) on the interior of the blind by clipping two panels onto the top and middle tiers of the frame on each wall as shown.
Page 26: Notes
Instruction Manual : 6’ X 6’ HYBRID BLIND NOTES...
Page 27 Instruction Manual : 6’ X 6’ HYBRID BLIND NOTES...
Page 28 *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images may have been removed for photography purposes only. Props shown in photos not included. Some assembly may be required.
