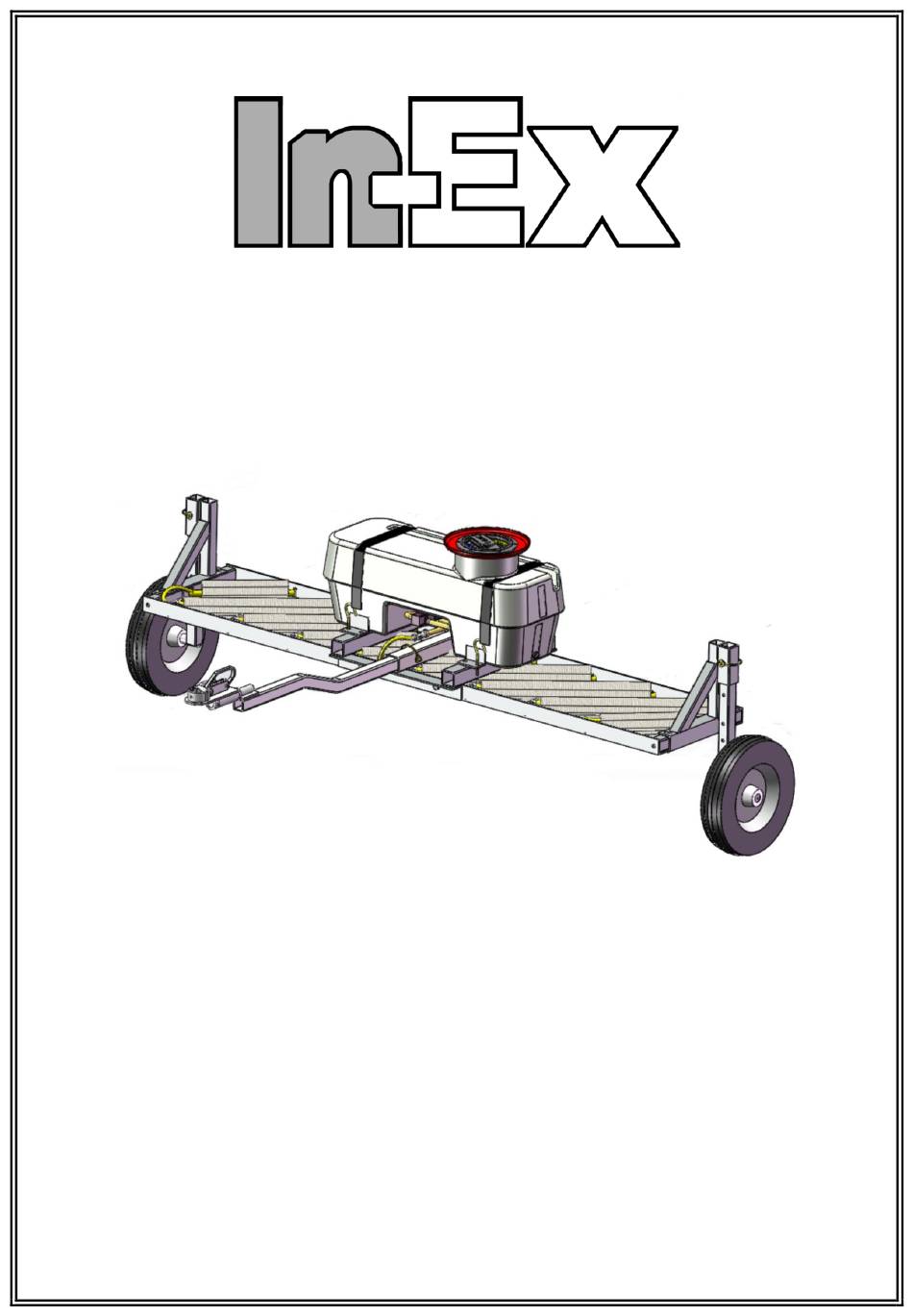

- Page 1 OWNER’S MANUAL FOR THE Weedwiper In-Ex™ P O Box 1010, 145 Harts Road Palmerston North Ph: 06 354 6060 Fax: 06 355 3199 E-Mail: sales@cdax.co.nz www.c-dax.co.nz...
-
Page 2: Safety Precautions
Weedwiper AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF IN-EX ATTACHMENTS/ACCESSORIES Be warned of the dangers of loading your ATV or other vehicle in excess of its carrying capacity. It is important to understand that any loads or attachments whether fastened to or placed on a vehicle or ATV will alter the stability or handling characteristics of that vehicle or ATV. -
Page 3: Table Of Contents
In-Ex Weedwiper OWNER’S MANUAL (Pt.No.2400-5810 Issue 11, April 2024) TABLE OF CONTENTS Safety Precautions Contents Warranty Liability Description Order Information Assembly Hose Assembly Testing Wiping Chemical Application Chemical Advice Herbicide Rates Adjuvants Calibration Height Adjustment Application Rates Maximum Speeds Setting the Flow Rate... -
Page 4: Warranty
WARRANTY WARRANTY AND LIABILITY Use of the equipment You must satisfy yourself as to the suitability of the equipment for your intended use(s) of the equipment. Your relationship with the retailer Where you consider you have a warranty claim (or any other claim) in relation to the equipment, you must contact the retailer who sold you the equipment, not C-Dax directly. -
Page 5: Description
DESCRIPTION The In-Ex Weedwiper is the latest model in the popular In-Ex range of products. It is a trailed wiper with a 1.95m effective width and has been designed for maximum strength with minimum weight. All wiping loads are taken on the vehicle tow bar. -
Page 6: Assembly
ASSEMBLY NOTE To aid assembly, exploded parts diagram of the Weedwiper is shown at the end of this document. Unpack the Weedwiper and check the contents. Each Weedwiper is shipped assembled in kit form. Each kit contains the wiper frame, draw bar, left and right hand wheel assemblies, and parts kit. The Weedwiper parts kit contains the following parts: Part Description... -
Page 7: Hose Assembly
Standard Weedwiper Frame Attach the left and right wheel assemblies to the frame using the lock pins provided. There is a left hand and right hand height adjuster. Fit the centre tank / drawbar frame to the wiper frame with the bolts and nuts provided. Insert the drawbar into the centre tank / drawbar frame with the appropriate orientation to match the height of the ATV tow ball. -
Page 8: Testing
CHEMICAL APPLICATION Chemical Advice In-Ex or their agents cannot make recommendations or give advice as to the use of chemicals and cannot accept responsibility for any damage, injury or other consequence for disregarding this warning notice. Contact your chemical supplier for advice. -
Page 9: Herbicide Rates
Purchasers must ensure that operators of these machines are fully aware of the dangers of spraying chemicals. Herbicide Rates The following mixing ratios (chemical : water plus adjuvant) have been found more than adequate by Eliminator users: • 24-D (annual thistles) 1 : 10 •... - Page 10 HEIGHT DIAGRAM Highest Setting Approximately 350mm from wipers to ground Approximately 250mm from wipers to ground Approximately 150mm from wipers to ground Lowest Setting Approximately 50mm from wipers to ground - 10 -...
-
Page 11: Application Rates
Application Rates – Weedwiper The Weedwiper can be set up for medium or high application rates. For medium rates, a flow plate marked M (#37) is fitted in the delivery line to the wiper. This is the standard configuration. If a high application rate is required, a large flow plate marked L (#55) can be fitted. -
Page 12: Maintenance
MAINTENANCE Flushing Flush the tank and wiping system before storing. Set the controller to 7, or couple the pump direct to the battery lead so that the pump runs continuously. Flush once with clean fresh water and detergent, then twice with clean water. Allow at least 4 minutes each time. -
Page 13: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSE ACTION Insufficient flow from 1. Faulty pump Return to supplier for service ALL carpets 2. Blocked suction filter Clean 3. Blocked flow plate or filter at Clean check valve on hose to wiper 4. Kinked hose Straighten Insufficient flow... -
Page 14: Exploded Parts Diagram - Weedwiper
EXPLODED PARTS DIAGRAM – WEEDWIPER (after April 2024) - 14 -... - Page 15 Item No. QTY. e9 part no e9 description 1018-3930 Adjuster-height-InEx-Wiper-LH-ZP 1018-3931 Adjuster-height-InEx-Wiper-RH-ZP 1082-2420 Axle-Wiper-InEx-ZP 1500-3600 Cable-Electrical-Loom-Battery Feed-0.5M 1500-4300 Cable-Electrical-Loom-Eliminator-Control Box 1700-1530 Carpet-Wiper Assembly-Eliminator-530mm 1700-2300 Carpet-Wiper Assembly-Eliminator-Outer-300mm 2000-2014 Clamp-Hose-Oetiker-Single Ear Stepless-14.5<>7.0mm-S/S 2000-2015 Clamp-Hose-Oetiker-Single Ear Stepless-15.3<>18.5mm-S/S 2000-4008 Clamp-Hose-Worm Drive-Jubilee-8mm-Stainless 2550-2300 Drawbar-Eliminator-ZP 2840-1265 Fastener-Bolt&Nut-Hex-8.8 Grade-M12x65-ZP 3070-0300 Fastener-Machine-Screw-CSK-8Gx3/4-Pozi-Stainless...
- Page 16 6800-4000 Pump-Flojet-LF12-12 Volt-3.8LPM-10mm Hose Shanks 7500-1760 Rota-Flange-50L-Red-MDPE 7500-3550 Rota-Tank-50L-In-Ex-Natural-MDPE 8410-9067 Strap-Web Sling-670Long-38mm-900KG-Reduced and Reversed-KS1 Material-Black 8427-6000 Sub-Lid & Ring Assembly-D150-In-Ex Vented-Nylon-Black 8800-3800 Tow-Coupling-Handle-Double Ended-1 78 x 50mm-ZP 8840-8410 Tube-Transluscent-10MM-100PSI (0.08m) 9200-7500 Wheel-Ribbed-350x8-4 Ply-3 Ribs-BW Series 6200-8280 Pipe-Fitting-Straight-10 Shankx11/16UNFM-Plastic 4100-0008 Hose-Spray-Delivery-40 Bar-8.5mm ID-Yellow (0.055m) 4100-0008 Hose-Spray-Delivery-40 Bar-8.5mm ID-Yellow (0.065m)
- Page 17 EXPLODED PARTS DIAGRAM – WEEDWIPER (before April 2024) - 17 -...
- Page 18 Item QTY. e9 part no e9 description 1018-3930 Adjuster-height-InEx-Wiper-LH-ZP 1018-3931 Adjuster-height-InEx-Wiper-RH-ZP 1082-2420 Axle-Wiper-InEx-ZP 1500-3600 Cable-Electrical-Loom-Battery Feed-0.5M 1500-4300 Cable-Electrical-Loom-Eliminator-Control Box 1700-1530 Carpet-Wiper Assembly-Eliminator-530mm 1700-2300 Carpet-Wiper Assembly-Eliminator-Outer-300mm 2000-2013 Clamp-Hose-Oetiker-Single Ear Stepless-13.2<>15.7mm-S/S 2000-2014 Clamp-Hose-Oetiker-Single Ear Stepless-14.5<>7.0mm-S/S 2000-4008 Clamp-Hose-Worm Drive-Jubilee-8mm-Stainless 2550-2300 Drawbar-Eliminator-ZP 2840-1265 Fastener-Bolt&Nut-Hex-8.8 Grade-M12x65-ZP 3070-0300 Fastener-Machine-Screw-CSK-8Gx3/4-Pozi-Stainless 3110-0520...
- Page 19 Pipe-Fitting-Thru Tank-Elbow-10 Shankx11/16UNFM-Nylon 6800-4000 Pump-Flojet-LF12-12 Volt-3.8LPM-10mm Hose Shanks 7500-1760 Rota-Flange-50L-Red-MDPE 7500-3550 Rota-Tank-50L-In-Ex-Natural-MDPE Strap-Web Sling-670Long-38mm-900KG-Reduced and 8410-9067 Reversed-KS1 Material-Black 8427-6000 Sub-Lid & Ring Assembly-D150-In-Ex Vented-Nylon-Black 8800-3800 Tow-Coupling-Handle-Double Ended-1 78 x 50mm-ZP 8840-8410 Tube-Transluscent-10MM-100PSI (0.08m) 9200-7500 Wheel-Ribbed-350x8-4 Ply-3 Ribs-BW Series - 19 -...
-
Page 20: Flojet Lf12 Replacement Parts
FLOJET LF12 REPLACEMENT PARTS The following are the C-Dax replacement parts available for the 12V Flojet 3.8 L/Min pump: These parts may be ordered through any C-Dax dealer. - 20 -...
