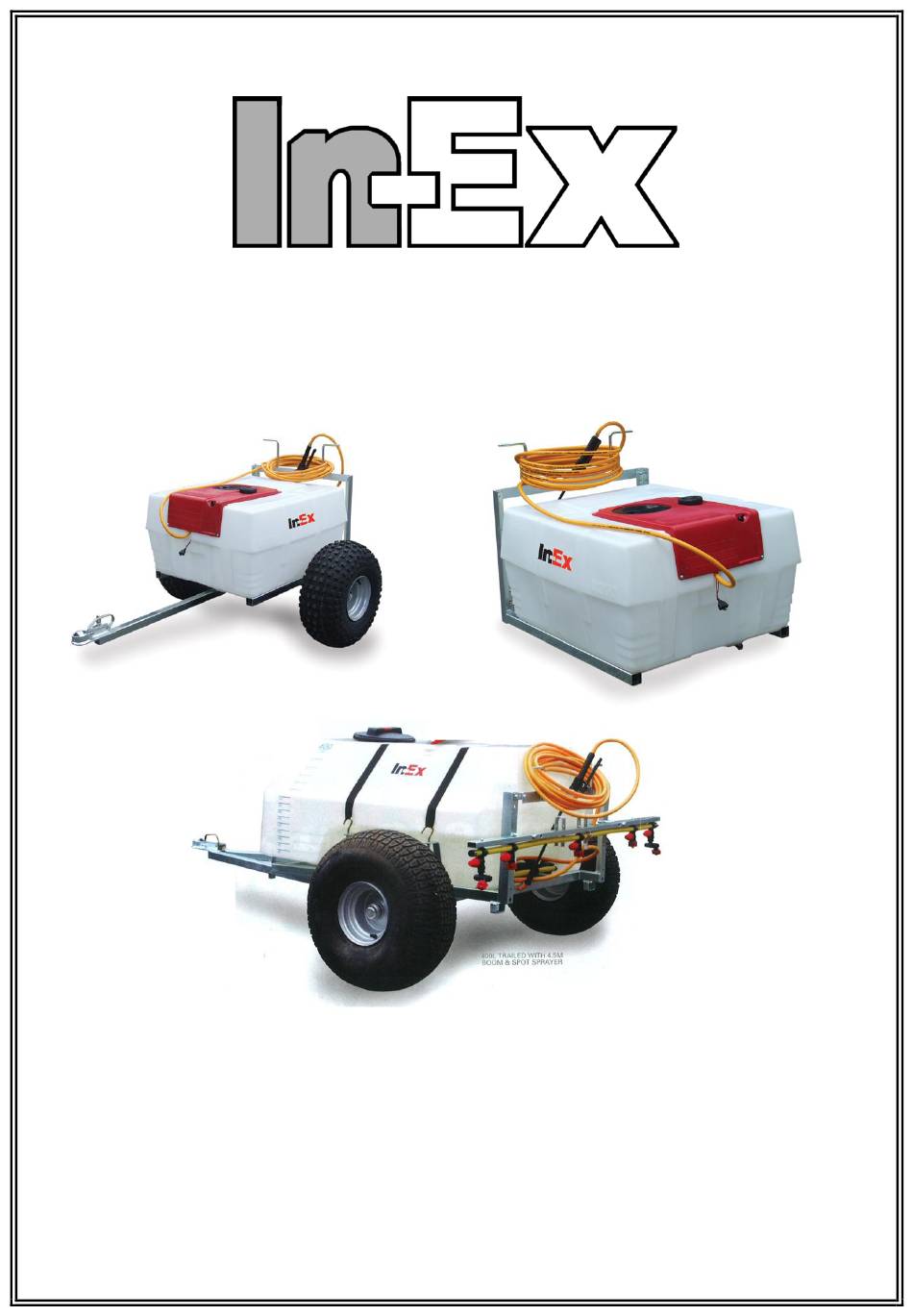

- Page 1 OWNER’S MANUAL FOR THE Sprayer 200/400 range In-Ex™ P O Box 1010, 145 Harts Road Palmerston North Ph: 06 354 6060 Fax: 06 355 3199 E-Mail: sales@c-dax.co.nz www.c-dax.co.nz...
-
Page 2: Table Of Contents
Pressure Switch Adjustment Troubleshooting Parts Diagrams CAUTION The Sprayer 200/400T utilizes floatation tyres to dampen bumps. It is essential that these tyres are not over-inflated otherwise the unit will be exposed to excessive shock. The recommended tyre pressure is 5-7 psi. -
Page 3: Description
DESCRIPTION The In-Ex Sprayer 200 & 400 litre amenity/boom sprayers are a series of high strength spray tanks manufactured of non-corrosive polyethylene that either come complete as a trailed unit or as a stand alone tank and frame assembly for deck mounting. -
Page 4: Warranty
WARRANTY WARRANTY AND LIABILITY Use of the equipment You must satisfy yourself as to the suitability of the equipment for your intended use(s) of the equipment. Your relationship with the retailer Where you consider you have a warranty claim (or any other claim) in relation to the equipment, you must contact the retailer who sold you the equipment, not C-Dax directly. - Page 5 for any loss of profit or revenue, or for any special, indirect, incidental or consequential damage, loss or injury of any kind suffered by you. Where C-Dax elects to repair or replace the equipment it will use reasonable endeavours to do so as soon as practicable but will not be liable for any delay in doing so.
-
Page 6: Operating Hints
In-Ex and their distributors have a comprehensive parts inventory and capable staff. Because of the complications of the pump it may be best to get your In-Ex agent to post it back to the authorised service centre. -
Page 7: Troubleshooting
TROUBLESHOOTING In-Ex and their distributors have a comprehensive parts inventory and capable service staff. Repairs should only be undertaken by In-Ex, or an authorised In-Ex service centre. Switch on but pump does not 1. Blown fuse Check wiring and replace... - Page 8 PARTS DIAGRAM (200 litre flat deck)
- Page 9 6800-5500 Pump-Flojet-High Flow-10.9LPM-Quad Ports 7500-4200 Rota-Tank & Pump Cover-200L-Spray-Natural/Red-MDPE-In-Ex Strap-Web Sling-1320 Long-38mm-900KG-Reduced and Reversed-KS1 Material- 8410-9106 Black 8427-3500 Sub-Filter Assembly-C-Dax U Filter 8427-6000 Sub-Lid & Ring Assembly-D150-In-Ex Vented-Nylon-Black 8450-2410 Switch-Electrical-Toggle-SPST-250V-16Amp 8790-4400 Terminal-Joiner-Crimp-Insulated Blue 8790-8020 Terminal-Spade-Female-6.3mm-Blue 8840-8413 Tube-Transluscent-13MM-100PSI(0.26m) 8900-4600 Valve-Lid Vent-D150 Item 33*: Units manufactured prior to Jan 2015 fitted with pump 6800-5000, Pump-Flojet-Triplex-12 Volt-7.6LPM-Quad Ports.
- Page 10 PARTS DIAGRAM (200 litre trailed)
- Page 11 Pump-Flojet-Triplex-12 Volt-7.6LPM-Quad Ports 7500-4200 Rota-Tank & Pump Cover-200L-Spray-Natural/Red-MDPE-In-Ex Strap-Web Sling-1320 Long-38mm-900KG-Reduced and Reversed- 8410-9106 KS1 Material-Black 8427-3500 Sub-Filter Assembly-C-Dax U Filter 8427-6000 Sub-Lid & Ring Assembly-D150-In-Ex Vented-Nylon-Black 8450-2410 Switch-Electrical-Toggle-SPST-250V-16Amp 8800-3800 Tow-Coupling-Handle-Double Ended-1 78 x 50mm-ZP 8840-8413 Tube-Transluscent-13MM-100PSI(0.26m) 8900-4600 Valve-Lid Vent-D150...
- Page 12 PARTS DIAGRAM (400 litre trailed)
- Page 13 PARTS LIST (400 litre Trailed) Item QTY. e9 part no e9 description 1082-4384 Axle-In-Ex 400T-GL 2000-2014 Clamp-Hose-Oetiker-Single Ear Stepless-14.5<>7.0mm-S/S 2000-2017 Clamp-Hose-Oetiker-Single Ear Stepless-16.6<>19.8mm-S/S 3070-0300 Fastener-Machine-Screw-CSK-8Gx3/4-Pozi-Stainless 3110-0520 Fastener-Machine-Screw-Pan-M5x20-Pozi-ZP 3170-0005 Fastener-Nut-Nyloc-M5-ZP 3170-0008 Fastener-Nut-Nyloc-M8-ZP 3170-0010 Fastener-Nut-Nyloc-M10-ZP 3290-1030 Fastener-Set Screw-Hex-8.8 Grade-M10x30-ZP 3310-6005 Fastener-Washer-Flat-M5-ZP 3310-6008...
- Page 14 PARTS DIAGRAM (400 litre Flat Deck)
- Page 15 6200-5400 Pipe-Fitting-Nut-Back-1/2BSP-Plastic 6250-3001 Plug-Electrical-2 Pin-Male-20 Amp-With Cover 6250-8620 Plug-Tube End-Square-1 1/2"x1 1/2"-Black-Plastic 6200-1300 Pipe-Fitting-Cap-3/4BSPF-Plastic 4085-4050 Hook-Hose-In-Ex 200/400-ZP 4000-6020 Hand Gun-Teejet-Trigger Jet X18-Shank 10mm 3290-1030 Fastener-Set Screw-Hex-8.8 Grade-M10x30-ZP 3170-0010 Fastener-Nut-Nyloc-M10-ZP 6800-5150 Pump-Flojet-Triplex-Filter-In Line-Quad Ports Item 29*: Units manufactured prior to Jan 2015 fitted with pump 6800-5000,...
- Page 16 FLOJET SPRAY PUMP RELACEMENT PARTS The following replacement parts for the 12V Flojet 7.6 L/Min pump are available from any C-Dax dealer: This diagram is for 7.6L/min pump only, units manufactured prior to Jan 2015. PLEASE NOTE THAT NO REPLACEMENT PARTS ARE AVAILABLE FOR 10.9L PUMP NOTE Please select the correct hose connection type for your pump The below pictures show the quadport type (Left hand photo) and threaded type (Right hand...
Need help?
Do you have a question about the Sprayer 200 and is the answer not in the manual?
Questions and answers
Pump running but not building pressure
The In-Ex Sprayer 200 pump may be running but not building pressure due to the following reasons:
1. Spray gun trigger open – Ensure the spray gun trigger is closed to allow pressure to build.
2. Air lock in pump – Operate the spray gun trigger until all air is expelled from the system.
These issues can prevent the pump from reaching the required pressure.
