Boat Centric Keypad Control—Manual Operation

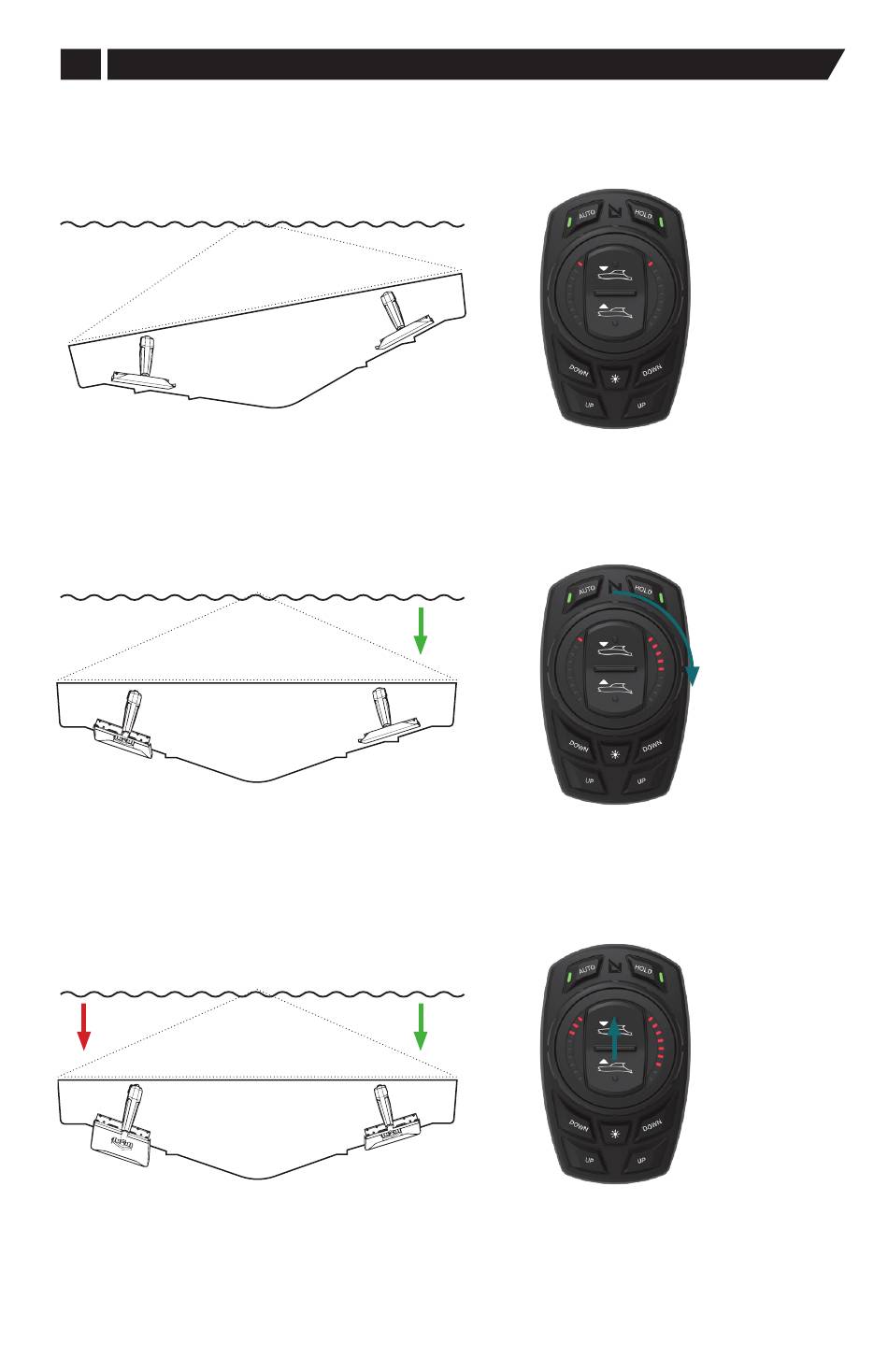

Starting
Condition
Starting
Condition
Starboard is too high.
Roll correction is needed.
*Keypad is in Manual Mode.
Roll Corrected
Roll control dial is rotated to starboard.
Starboard lowers to operator's desired
roll position.
LED's illustrate actuator extension of
port and starboard actuators.
Pitch Corrected
Level roll is achieved but pitch of bow
is too high.
All down button is pressed.
Bow lowers evenly into water.
LED's illustrate actuator extension of
port and starboard actuators.
