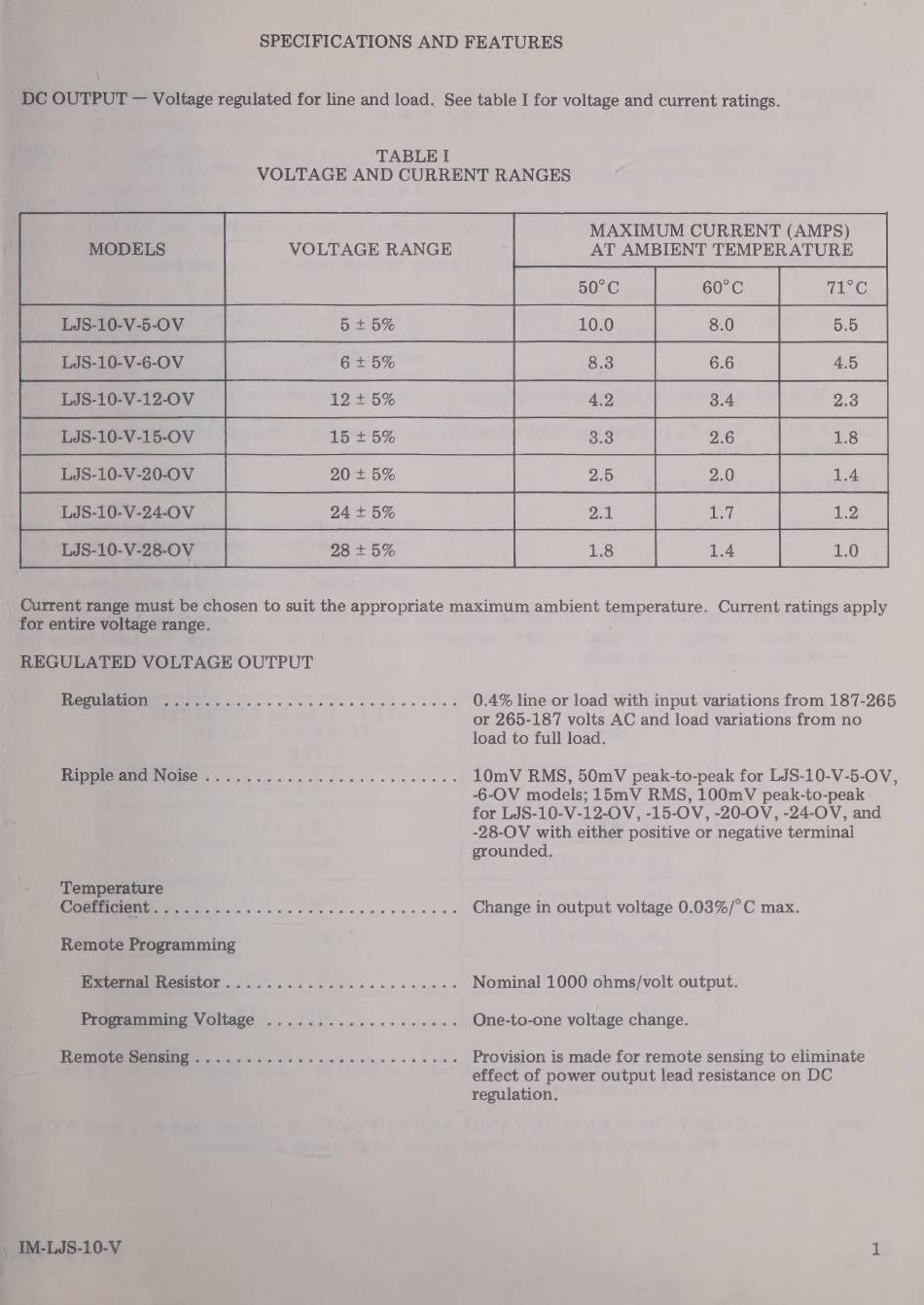

SPECIFICATIONS AND FEATURES
DC OUTPUT — Voltage regulated for line and load. See table I for voltage and current ratings.
TABLE I
VOLTAGE AND CURRENT RANGES
MAXIMUM CURRENT (AMPS)
MODELS VOLTAGE RANGE AT AMBIENT TEMPERATURE
LJS-10-V-12-0V 12 + 5%
LJS-10-V-20-0V 20 + 5%
LJS-10-V-24-OV 24 + 5%
LJS-10-V-28-OV 28 + 5%
Current range must be chosen to suit the appropriate maximum ambient temperature. Current ratings apply
for entire voltage range.
LJS-10-V-15-OV 15 + 5%
REGULATED VOLTAGE OUTPUT
CU c 00! o e o a 0.4% line or load with input variations from 187-265
or 265-187 volts AC and load variations from no
load to full load.
Se ns 10mV RMS, 50mV peak-to-peak for LJS-10-V-5-OV,
-6-OV models; 15mV RMS, 100mV peak-to-peak
for LJS-10-V-12-OV, -15-OV, -20-OV, -24-OV, and
-28-OV with either positive or negative terminal
grounded.
Temperature
ae e e Change in output voltage 0.03%/"C max.
Remote Programming
ee ................ Nominal 1000 ohms/volt output.
Programming Voltage ................... One-to-one voltage change.
ЕТ CL —————A Provision is made for remote sensing to eliminate
effect of power output lead resistance on DC
regulation.
| IM-LJS-10-V 1
