BLEND DRAWER UNIT
60cm Matt White:
Art No N18DU60MWH
60cm Sherwood Oak:
Art No N18DU60SWO
MAR /
60cm Terrazzo Paper:
80cm Matt White:
Art No N18DU80MWH
80cm Sherwood Oak:
Art No N18DU80SWO
MAR /
80cm Terrazzo Paper:

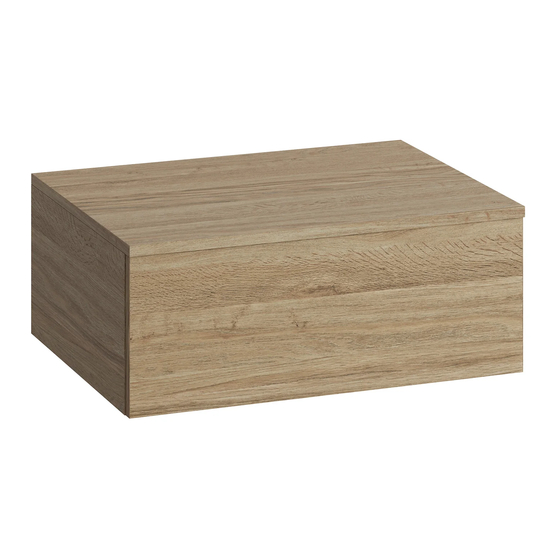

Blend 60cm Drawer Unit
Blend 80cm Drawer Unit
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to
them during installation to ensure that your product is fitted safely
and that it retains its high quality finish.
/
60cm Greystone:
/
60cm Black Marble:
Art No N18DU60TPAP
80cm Greystone:
/
80cm Black Marble:
Art No N18DU80TPAP
FI#03 015 R240626
Art No N18DU60GST
Art No N18DU60B-
Art No N18DU80GST
/
Art No N18DU80B-
Ver
2.0 Jan 2021
Advertisement
Related Manuals for HiB Novum N18DU60TPAP
Summary of Contents for HiB Novum N18DU60TPAP

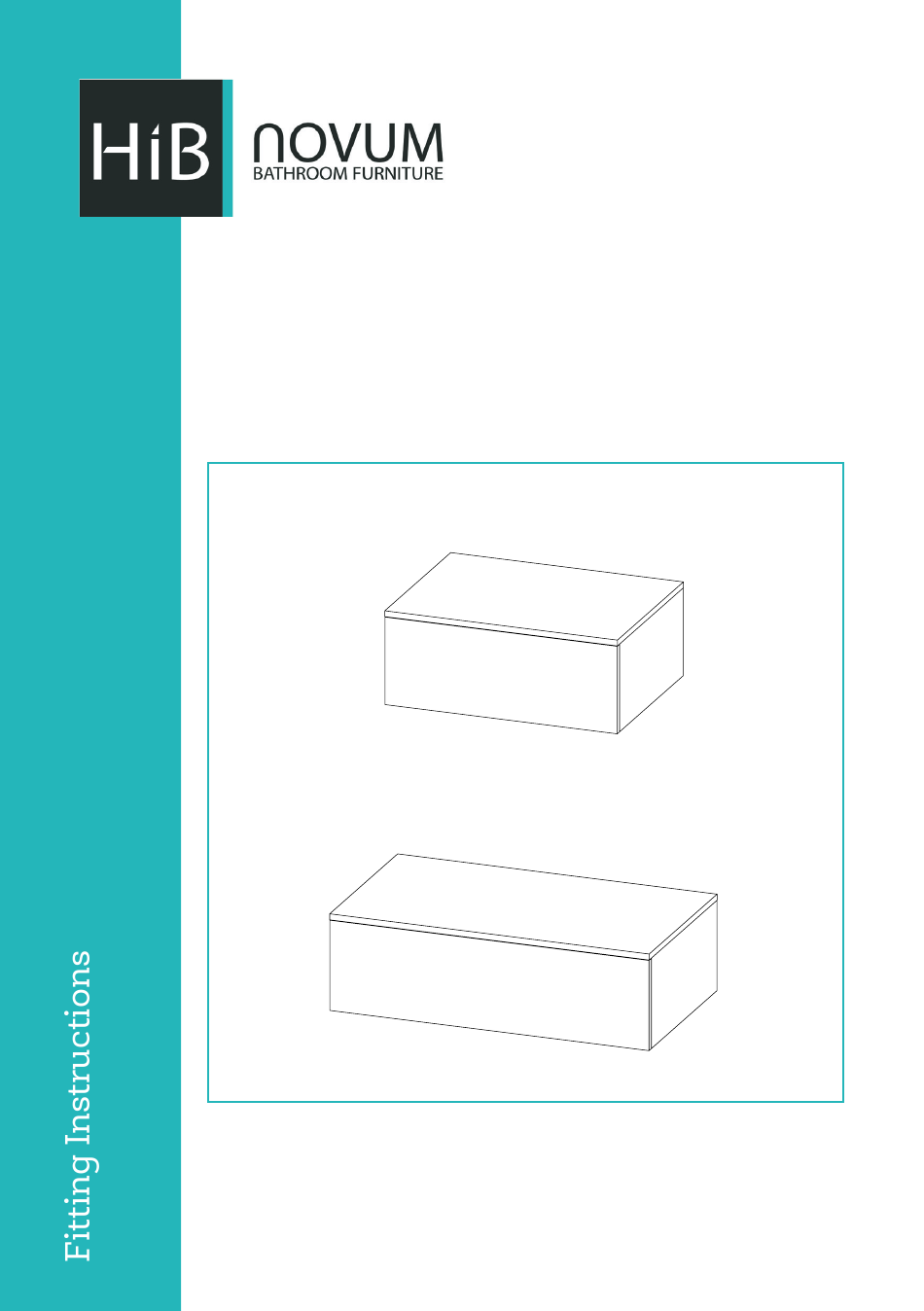

- Page 1 Art No N18DU80TPAP Blend 60cm Drawer Unit Blend 80cm Drawer Unit Thank you for purchasing this HiB product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
- Page 2 Warnings for Safe Use • Please read the instructions and warnings carefully before installing the product and ensure this document is kept with the product for future reference to ensure product longevity and in the interest of safety. • This product is intended for domestic use only. •...
- Page 3 What’s in the Box? • Drawer Unit • Fitting pack • Connecting bolts Tools Required Pencil Tape Spirit Level Screwdriver Silicone Measure Drillbit Drill hib.co.uk...
- Page 4 Figures Fig. 1 Fig. 2 Fig. 3...
-
Page 5: Installation
1. HiB recommends removing the drawer(s) prior to installation. See Fig. 4, overleaf. 2. Plan the unit position on the wall, ensuring there is sufficient space between the unit and other items of furniture in the room. - Page 6 Adjustment & Removal Fig. 5 - Adjustment Fig. 4 - Removal Fig. 6...
- Page 7 Care To preserve the high quality finish of your HiB product, please ensure you regard the following care and cleaning recommendations: • Use only a soft damp cloth. • Wipe off all water spillages as soon as possible. • Do not use any abrasives or solvents.
- Page 8 Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary.
