Trantec S5000 Quick Start Manual

Trantec S5000 eng receiver
Press button under battery door functions:
Bank – change bank 1 to 4 using the encoder on the top of the pack
Freq – change the frequency using the encoder on the top of the pack
Gain – change the audio level gain using the encoder on the top of the pack
Rf cue – change the squelch level
Always return to the Freq menu then power down to save settings – then reboot.
The following 6 frequency are uk license free channel 70
All 6 will operate together
863.100
863.400
863.750
864.225
864.550
864.975
These are the first 6 frequencies of bank 1
Audio output is on a 5 pin lemo connector fgg series Ob

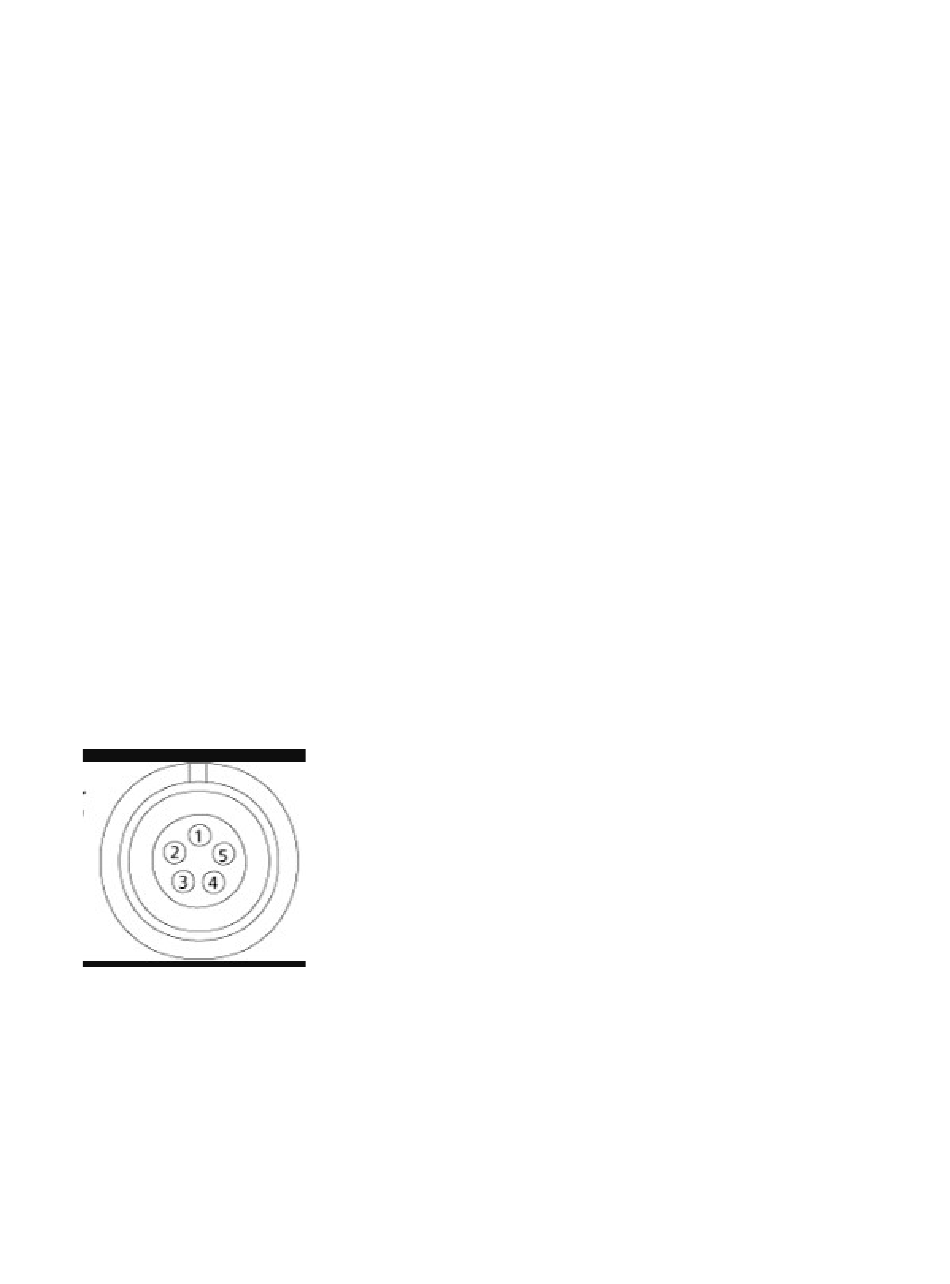

Image is of the solder view of the male connector which plugs into the s5000 eng receiver pack
PIN 1 – Ground
Pin 2 audio + output
Pin 3 Ground
Pin 4 power from camera external battery 10 v to 18v
Pin 5 audio – output
