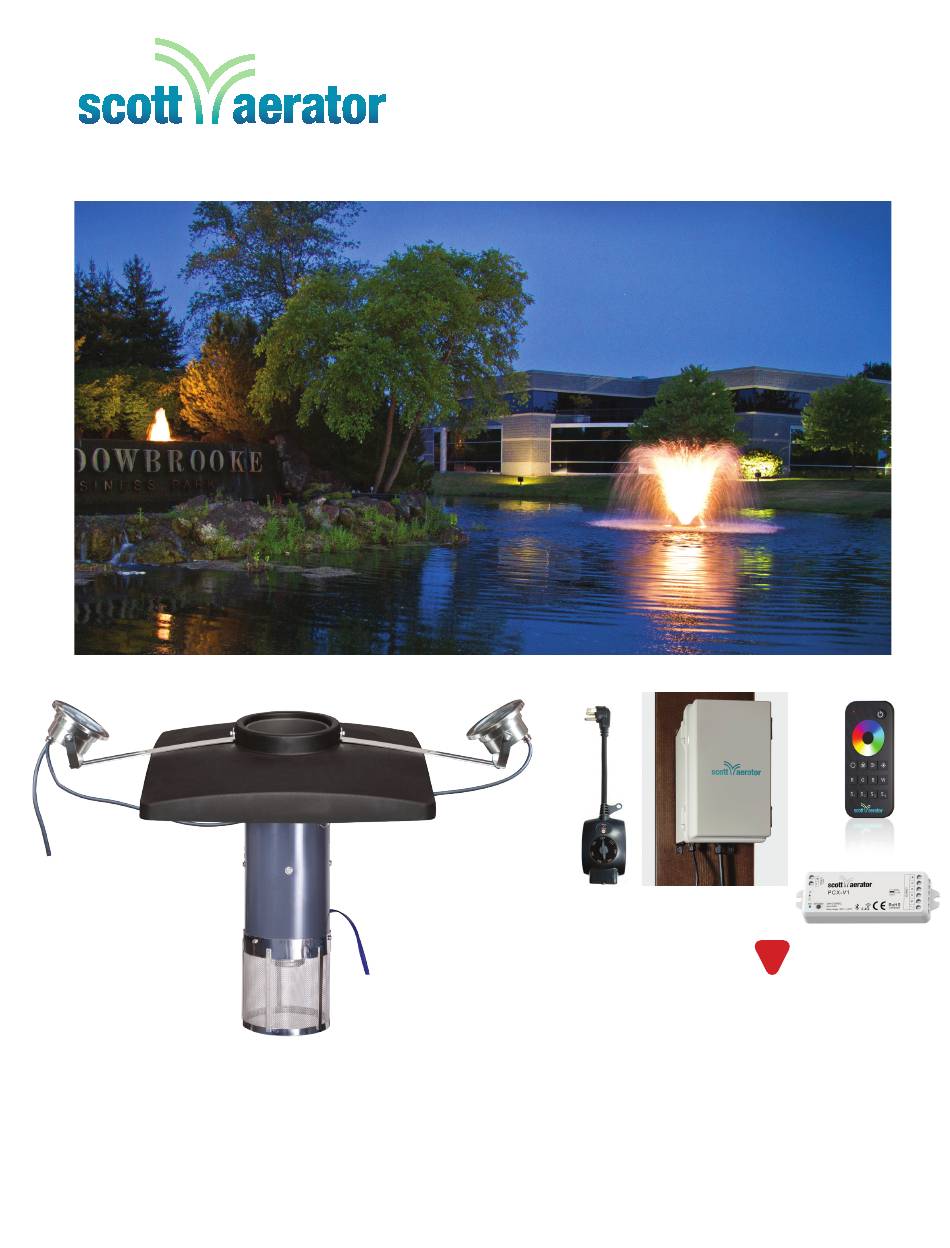

Celebrating 60 years of Beautiful, Healthy Water

RGB II

LED 2 or 4 Light Set

This Kit Includes

(2-4) LIGHTS WITH POWER CABLE

(2-4) 1/2" BOLTS AND NUTS

(2-4) STAINLESS STEEL ARMS

TRANSFORMER CONTROL UNIT:

- TIMER

- LED CONTROL BOX

REMOTE CONTROL

Tools Needed

SMALL FLAT HEAD SCREWDRIVER

PHILLIPS HEAD SCREWDRIVER

7/16" AND 1/2" WRENCHES AND PLIERS

WARNING: Bypassing

the transformer will

cause the fixtures to

fail. The transformer is

an integral and required

part of the system.

Need help?

Do you have a question about the 13650 and is the answer not in the manual?

Page 1 RGB II LED 2 or 4 Light Set Celebrating 60 years of Beautiful, Healthy Water This Kit Includes (2-4) LIGHTS WITH POWER CABLE (2-4) 1/2" BOLTS AND NUTS (2-4) STAINLESS STEEL ARMS WARNING: Bypassing the transformer will TRANSFORMER CONTROL UNIT: cause the fixtures to - TIMER fail.
Page 2 RGB II LED 2 or 4 Light Set Assembly Instructions 1. Attach each arm assembly to the water feature. Be sure to orient the arms with “L” facing upward. Remove one of the 2" bolts attaching the float to your Scott water feature and align the holes with the stainless steel arm. Reinsert the bolt with washer, outward through the housing, float and stainless steel arm.
Page 3 : Short press to cycle through the Dynamic Color Changing PRX-V1 Remote Controller modes (see mode list below), long press for 2 seconds to • When turning on your lights, the LED indicator light will turn on the Dynamic Color Changing mode-cycle. display blue.
Page 4 The unit must be returned to the factory prior to shipment of replacement parts. All parts replaced under this warranty will be returned with shipping prepaid. Scott Aerator will not be liable for consequential damage nor for any costs associated with removal or attempts to repair components in the field.
