Enerlites DWTOS Installation Instructions

INSTALLATION INSTRUCTIONS
PIR Occupancy Sensor and Air Circulator
SPECIFICATIONS
Voltage............................................................................................120VAC, 60Hz
Electronic Ballast/LED.......................................................................400VA/400W
Resistive/Tungsten..................................................................................3A/500W
Light Time Delay.................................................Test mode 15s, 5 to 30 minutes
PIR Coverage............................................................................................600sq.ft
Maximum Fan Load..................................................................1/4th hp or 3 Amps
Fan Time Delay..............................................................................5 to 60 minutes
Minutes per Hour (MPH................................................................10 to 60 minutes
DESCRIPTION
The DWTOS is a 3 amp, single pole PIR Occupancy Sensor with
dual timer fan control to helps conserve energy and maintain good indoor
air quality. The sensor will automatically
Occupancy and Vacancy. The fan control offers a countdown timer and a
minutes per hour (MPH) timer. Best of all, the two timers work together.
The MPH timer sees when you've used the countdown timer and knows not to
run the fan for a while if you've already done it. If you want to manually shut
the fan off when the MPH timer is running, you can do that too, just
press the fan on/off button. The countdown timer can be set anywhere
from 5 to 60 minutes, and it activates any time you manually turn the fan on.
The MPH timer can be set to anywhere from 10 to 60 minutes and it
automatically runs your fan for a set time every hour to expel stale air and
help you maintain good indoor air quality (just the thing for complying
with local indoor air quality standards, such as ASHRAE 62.2).
FEATURES
• Occupancy/Vacancy with 180° field of view
• Dual timer fan control includes adjustable countdown timer and
adjustable minutes per hour timer
• Countdown timer allows you to choose how long fan will run
• Minutes per hour timer automatically turns the fan on every hour
• Includes manual bath fan control for immediate ventilation
• Blue LED indicator light activates to let you know fan is turned on
1
DWTOS
WARNING
Turn OFF circuit breaker or remove fuse(s) and test that power is OFF
before wiring. Wiring the fan switch live can cause serious risk of electrical
shock and/or damage the switch, voiding the warranty. FOR SAFETY,
THIS PRODUCT MUST BE INSTALLED IN A GROUNDED SWITCH BOX.
If you are unfamiliar with methods of installing electrical wiring, secure
the services of a qualified licensed electrician. USE ONLY COPPER WIRE,
DO NOT use aluminum wire with this device.
Use copper wires only. NEUTRAL WIRE IS REQUIRED.

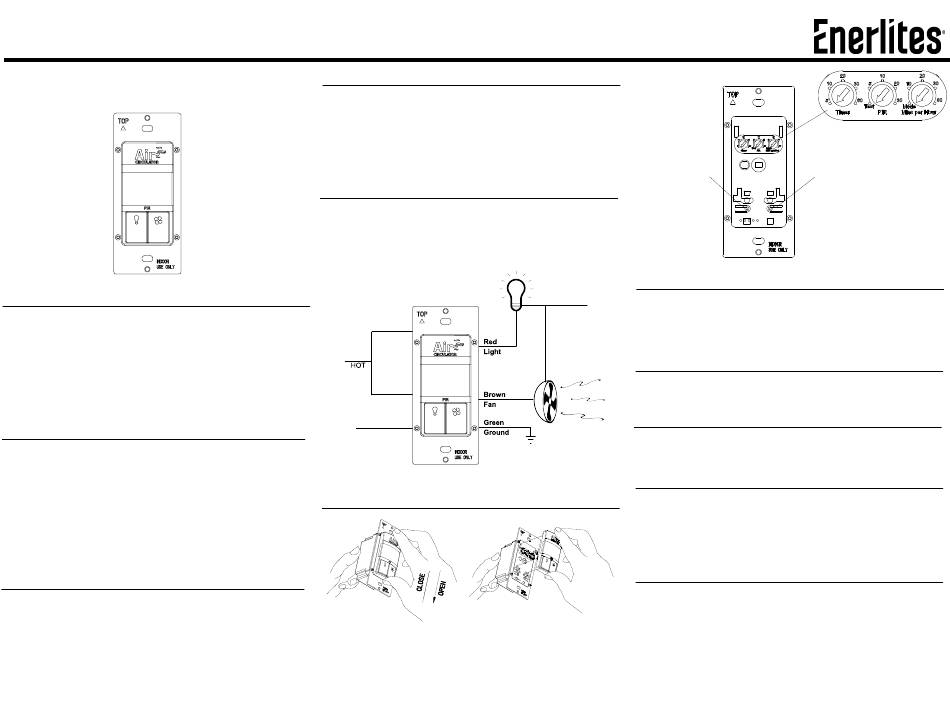

WIRING DIRECTIONS
Connect RED wire from sensor to the LIGHT wire.
1.
Connect BROWN wire from sensor to the FAN wire.
2.
Connect BLACK AND BLUE wires from sensor to the HOT wire.
3.
Connect WHITE wire from sensor to the NEUTRAL wire.
4.
Connect GREEN wire from sensor to the GROUND wire.
5.
Black
White
Neutral
turn on/off depending on
Face Cover Removal and Switch Settings
REMOVAL
Push down on the cover/ push
button to release, then pull away
from main body.
White
Neutral
Blue
Line 2
HOT
Black
Line 1
HOT
REATTACH
Align the latch pins to the unit, push the
cover/ button against the main body,
then slide up until it's locked into place
2
PIR Motion
LED Indicator
PIR Time Delay Settings
• Test-15 seconds
• 5 minutes
• 10 minutes
• 20 minutes
• 30 minutes
Occupancy Mode
Press and hold both light and fan buttons for 8 seconds, the green LED
indicator will flash twice to confirm Occupancy mode.
Vacancy Mode
Press and hold both light and fan buttons for 8 seconds, the green
LED indicator will flash once to confirm Vacancy mode.
Countdown Timer
Pressing "Fan ON/OFF" switches the fan (and the Blue LED light) ON and
OFF. When the fan is turned ON manually, the countdown timer will run your
fan for your selected period of time, then automatically shut your fan OFF for
you. For optimal use, we recommend adding together the time it takes you to
shower with the time it takes your bathroom to dry off after you shower, then
using that total as your setting for this timer.
Minutes Per Hour (MPH) Timer
This timer runs your fan for a selected amount of time every hour, to help
ensure good indoor air quality (it's also designed to help you more easily
comply with indoor air quality standards). For example, set to "Mode", the
MPH timer will never turn on. Set to "10" the Blue LED indicator will flash
twice, the MPH timer will turn your fan on 10 minutes every hour. Set to "30"
the Blue LED indicator will flash twice, the MPH timer will turn your fan on 30
minutes every hour. Set to "60" the Blue LED indicator will flash twice, the
MPH timer will run your fan for 60 minutes every other hour.
3
Fan LED Indicator
Blue LED Light: Lets you know
when your fan is on
(especially useful for fans with
low sound levels).
