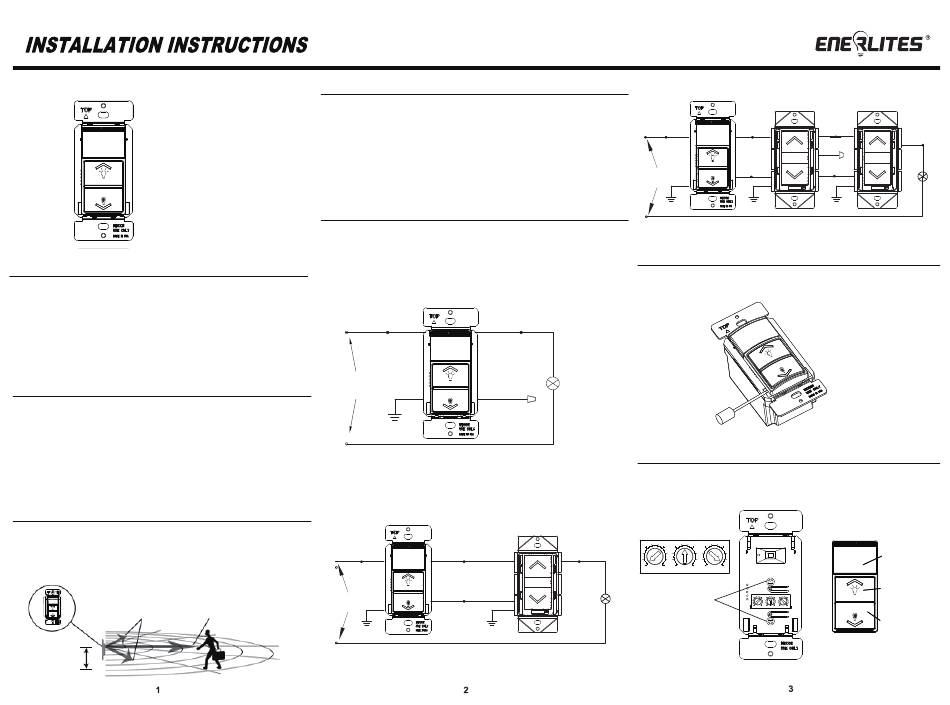

Enerlites DWODS-120 Installation Instructions

OCCUPANCY / VACANCY
SENSOR DIMMER SWITCH
SPECIFICATIONS
Voltage............................................................................120VAC, 60Hz
Tungsten/Incandescent.................................................................600W
Electronic self-ballasted(LED)............................................150W(1.25A)
Time Delay.....................................................15Sec, 10, 20, and 30Mins
Default Light Level..........................................................30 Lux--Daylight
Operating temperature......................................32°F~104°F(0°C~40°C)
DESCRIPTION
The DWODS-120 sensor dimmer switch uses advanced passive infrared sensor
to detect heat emitted motion. The sensor switch can turn on a load and keep it
on as long as it detects motion. The dimmer works just like our 57302 dimmer,
gradually turning lights on and off, allowing your eyes to adjust to the new light
level. Use the rocker to adjust the light level for any activity, or set the preset
level to ensure lights always turn on to your desired light level. The sensor will
automatically shut off the load at the end of the selected time delay. The
countdown of the selected time delay starts after the last motion detected.
COVERAGE
The DWODS-120 has a 180° detection range with a maximum distance
of 30' detection in front of the sensor and 12' on the sides providing 1000 sq. ft.
of coverage. For maximum results, the sensor must be properly installed
between the height of 4' to 5' and away from obstructions such as walls,
furniture and transparent barriers like Low-E glass.
Detection Range
Max. 12'
on the sides
Installation
Height: 4' - 5'
DWODS-120
WARNING
Turn the POWER OFF at the circuit breaker before installing the
sensor
Read and understand these instructions before installing. This device is
intended for installation in accordance with the National Electric Code and local
regulations. It is recommended that a qualified electrician performs this
installation. Make sure to turn off the circuit breaker or fuse(s).
Use copper wires only.
WIRING DIRECTIONS
1. Connect RED wire from sensor to the LOAD wire.
2. Connect BLACK wire from sensor to the HOT wire.
3. Connect GREEN wire from sensor to the GROUND wire.
4. Cap the Blue wire.
Single-Pole Wiring
Hot
120Vac 60Hz
Neutral
3-Way Wiring with 57302-3K Remote Dimmer
Hot Black
120 VAC
Max. 30'
60Hz Green
from front
Ground
Neutral
Black Red Load
Green Blue (Signal)
Ground
57302-3K*
Red
Red
Load
Blue (Signal) Blue (Signal)
Green
Ground
4-Way Wiring with Two 57302-3K Remote Dimmers
Hot Black Red
Load
120 VAC
Blue
60Hz
Green
Ground
Neutral
FACE COVER REMOVAL
Gently remove the face cover using a flat blade screwdriver. Find the slots at
the bottom left or right of the panel cover and pry the panel cover loose.
CFL 150W
LED 150W
INC/HAL 600W
TIME DELAY ADJUSTMENT
Located on the left, this switch adjusts the time delay.
Default position: 15 Seconds (Test mode)
Selectable: Test (15secs), 10, 20, and 30mins.
10 20 2
3 2 3
Min Min
Black to Load
30
4
1 1 4
TEST TIME Min RANGE LIGHT
LED Indicator
57302-3K * 57302-3K*
Red Black
Red Red
to Load
Black
Blue Blue
Blue
Green Green
Ground Ground
*Optional remote dimmer 57302-3K sold separately
Fresnel Lens
UP Button
DOWN Button
Face Cover
