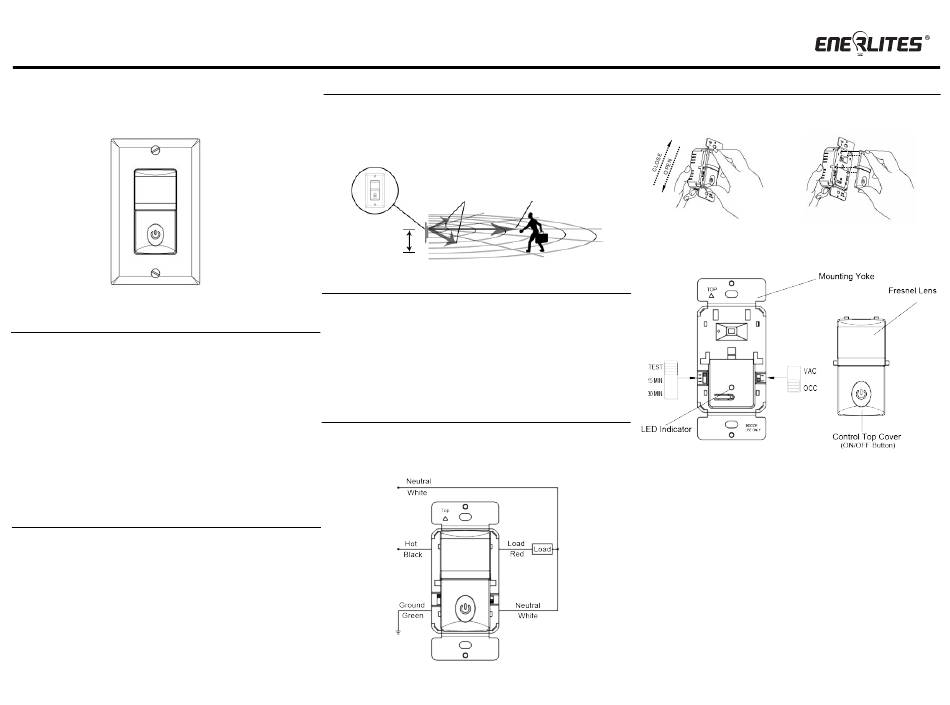

INSTALLATION INSTRUCTIONS
OCCUPANCY / VACANCY (2-IN-1)
SPECIFICATIONS
Voltage....................................................................................120,60Hz
Resistive.............................................................................................5A
Incandescent..............................................................................500W
Ballast...........................................................................800VA@120VAC
Motor.............................................................................................1/8Hp
Time Delay.........................................................15Sec, 15Mins, 30Mins
Default Light Level..........................................................30 Lux--Daylight
Operation Temperature.....................................................32° F--131° F
DESCRIPTION
The HMOS uses advanced passive infrared sensor to detect heat emitted
motion. The sensor switch can turn on a load and keep it on as long as it detects
motion. The sensor will automatically shut off the load at the end of the selected
time delay. The countdown of the selected time delay starts after the last motion
detected. The sensor is customizable with switches that can adjust Time Delay
and Occupancy/ Vacancy modes.
1
HMOS
COVERAGE
As illustrated below, The HMOS has a 180° detection range with a maximum
distance of 30' detection in front of the sensor and 12' on the sides providing
SENSOR SWITCH
700 sq. ft. of coverage. For maximum results, the sensor must be properly
installed between the height of 4' to 5' and away from obstructions such as
walls, furniture and transparent barriers like Low-E glass.
Installation
Height: 4' - 5'
WARNING
Turn the POWER OFF at the circuit breaker before installing the
sensor
Read and understand these instructions before installing. This device is
intended for installation in accordance with the National Electric Code and local
regulations. It is recommended that a qualified electrician performs this
installation. Make sure to turn off the circuit breaker or fuse(s) and make sure
power is off before wiring the device.
Use copper wires only.
WIRING DIRECTIONS
1. Connect RED wire from sensor to the LOAD wire.
2. Connect BLACK wire from sensor to the HOT wire.
3. Connect WHITE wire from sensor to the NEUTRAL wire.
NEUTRAL WIRE IS REQUIRED.
4. Connect GREEN wire from sensor to the GROUND wire.
Wiring Diagram
Detection Range
Max. 12'
Max. 30'
on each side
from front
2
COLOR CHANGE
The face cover of the sensor is changeable. To change out the cover:
1.
2.
Slide down top cover to release
Line up tabs and slide up to attach
Time switch
Located on the left, this switch adjusts the time delay. Default position: 15
Seconds (Test mode) Selectable: Test (15secs), 15mins, 30mins.
3
