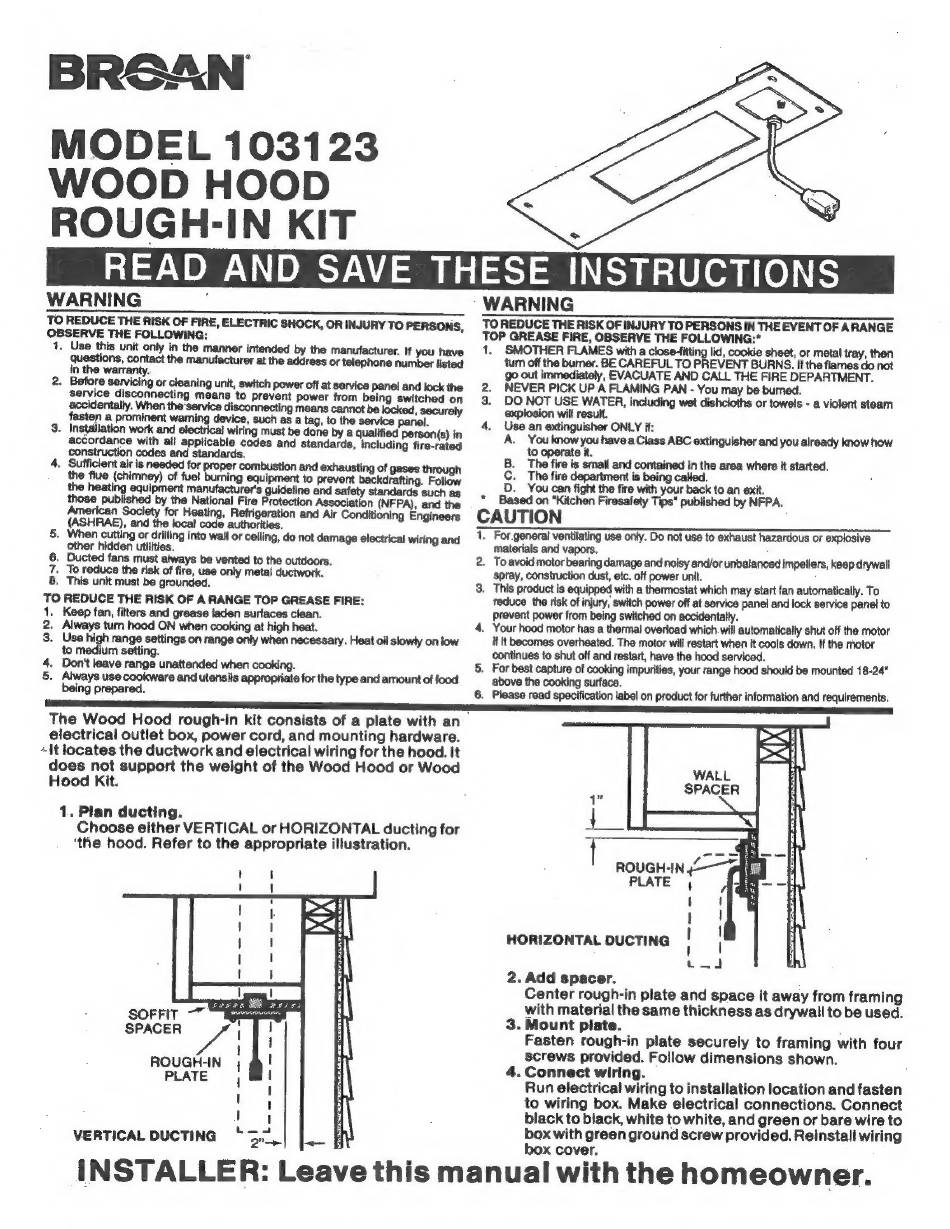

Broan 103123 Instructions

BROAN
MODEL 103123
WOOD HOOD
ROUGH-IN KIT
<
WARNING '
8. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
. Keep fan, fitters and grease laden surfaces clean.
Always turn hood ON when cooking at high heat.
Don't leave range unattended when cooking.
oe opm
The Wood Hood rough-in kit consists of a plate with an `
electrical outlet box, power cord, and mounting hardware.
«It locates the ductwork and electrical wiring for the hood. It
does not support the weight of the Wood Hood or Wood
Hood Kit.
1. Plan ducting.
Choose either VERTICAL or HORIZONTAL ducting for
'the hood. Refer to the appropriate illustration.
WARNING
4. Use an extinguisher ONLY if:
CAUTION
T
3. This product is equipped with a thermostat which may start fan automatically. To
reduce the risk of injury, switch power off at service panel and lock service panel to
Prevent power from being switched on accidentally.
5. For best capture of cooking impurities, your range hood should be mounted 18-24"
above the cooking surface.
HORIZONTAL DUCTING
2. Add spacer.
Center rough-in plate and space it away from framing
with material the same thickness as drywall to be used.
3. Mount plate. 7
Fasten rough-in plate securely to framing with four
screws provided. Follow dimensions shown.
4. Connect wiring.
Run electrical wiring to installation location and fasten
to wiring box. Make electrical connections. Connect
black to black, white to white, and green or bare wire to
box with green ground screw provided. Reinstall wiring
box cover.
