1) BLADES
2) BLADE GUIDE
3) FUEL CAP
4) FRONT HANDLE
5) STARTER HANDLE
6) CYLINDER COVER
7) SPARK PLUG
8) HANDLE
9) THROTTLE CONTROL TRIGGER
10) STOP SWITCH

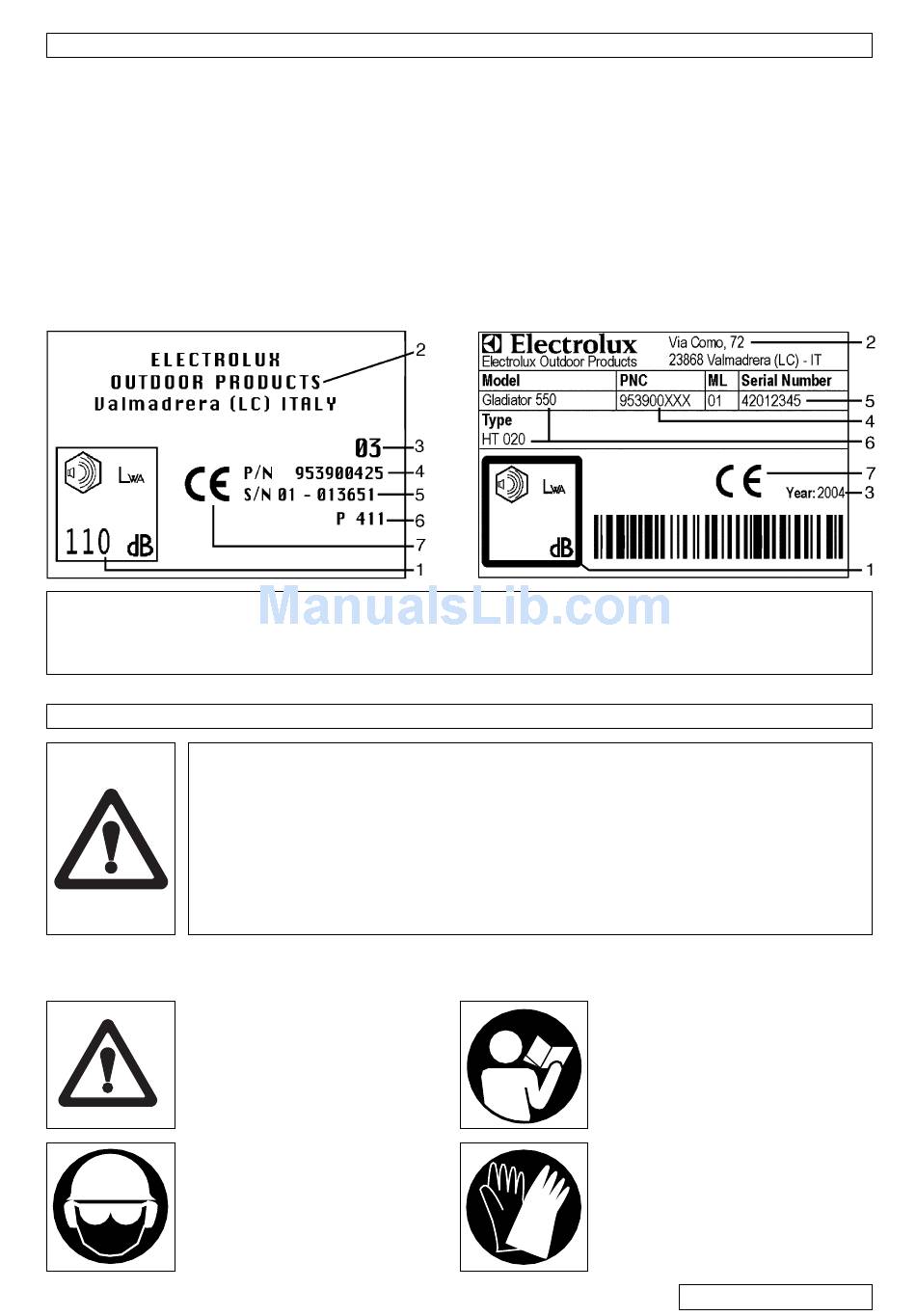

PRODUCT IDENTIFICATION LABEL

LEGEND:
1) Guaranteed noise level
according to directive
2000/14/EC
CAUTION!
• Use the hedge trimmer properly in order to avoid injuries.
• Follow the instructions and precautions for reasonably safe, efficient use
of the product.
• It is the responsibility of the user to follow the instructions and precau-
tions provided in the manual supplied with the product.
Note the illustrations at the beginning of the manual. Every section of the
text in the manual refers to the illustration bearing the same letter

Key to symbols

Warning
Safety apparel:
Approved protective goggles or
visor, approved hard hat and
hearing protection
A. General Description
2) Manufacturer's name and
address
3) Year of manufacture (last
two figures; e.g. 03=2003)

Safety precautions

11) GEAR BOX
12) GREASE GUN
13) SAFETY LEVER
14) AIR FILTER
15) CHOKE CONTROL
16) FUEL ENRICHMENT LEVER
17) HANDLE LOCK KNOB
18) FRONT HANDLE LOCK LEVER
19) HAND GUARD
20) TRANSPORT GUARD
4) Product code
5) Serial no.
6) Model/type
Read the instructions for the user
carefully and make sure you
understand how all the controls
work.
Safety apparel:
Approved gloves
7) CE seal of con-
formity
ENGLISH - 1
