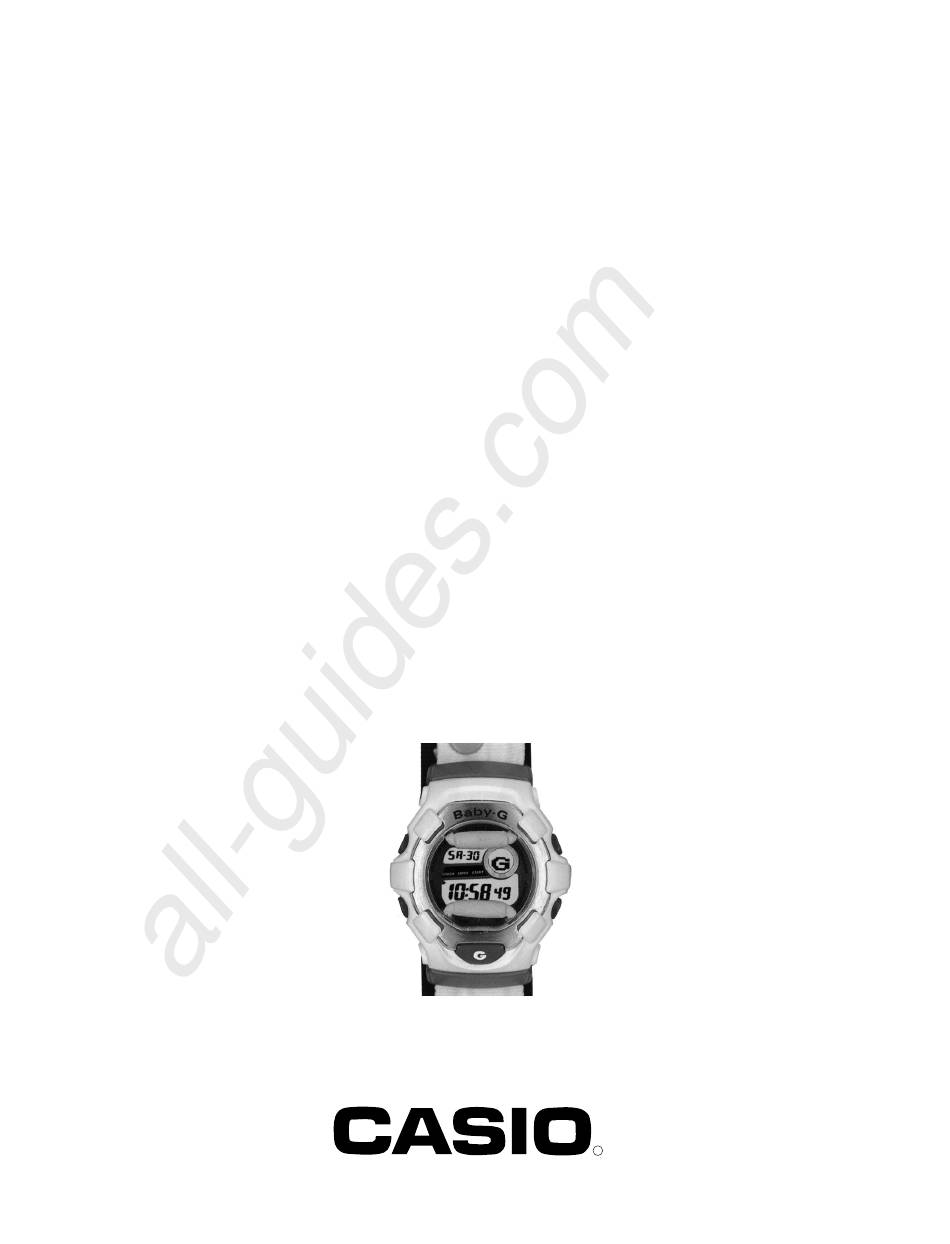

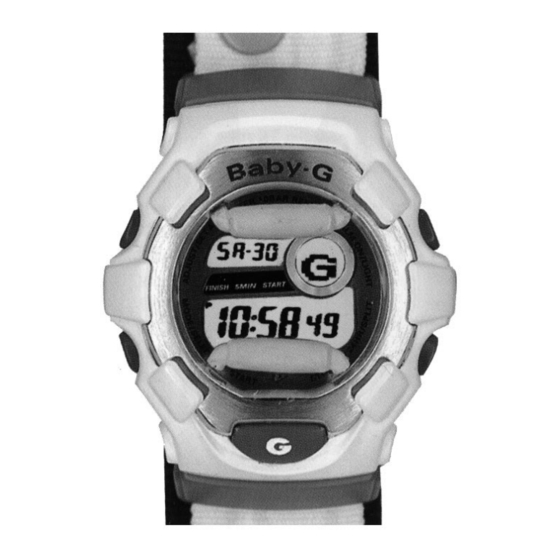

- Page 1 All manuals and user guides at all-guides.com ERVICE ANUAL & PARTS LIST REF. NO. S/M-724 DECEMBER 2000 MODULE NO. QW-2209 BGX-180V (WITHOUT PRICE)
-
Page 2: Table Of Contents
6-1. AC (ALL CLEAR) AND REMOVING OF MODULE • • 8 6-2. ACCURACY CHECKING • • • • • • • • • • • • • • • • • • • 8 1. SPECIFICATIONS : QW-2209 Item Detail... -
Page 3: Operation Chart
All manuals and user guides at all-guides.com 2. OPERATION CHART : QW-2209 GENERAL GUIDE • Press to change from mode to mode. • The animation area shows different animated characters and graphics, depending on the mode and the operation being performed. - Page 4 All manuals and user guides at all-guides.com To use the Auto-Start function 1. While the stopwatch display is showing all zeros ) in the Stopwatch Mode, press • At this time the auto-start indicator appears on the dis- play to indicate that auto-start is on. Press again to turn auto-start off (indicated when the auto-start indica- tor is not on the display).
-
Page 5: Drawings
All manuals and user guides at all-guides.com 3. DRAWINGS : QW-2209 3-1. BLOCK DIAGRAM COM. SEG. X3Y0 X2Y0 X1Y0 X0Y0 X3Y1 X2Y1 X1Y1 X0Y1 L 10 X3Y2 X2Y2 X1Y2 X0Y2 L 11 X3Y3 X2Y3 X1Y3 X0Y3 L 12 X3Y4 X2Y4... -
Page 6: Checking Terminals And Components
All manuals and user guides at all-guides.com 3-2. CHECKING TERMINALS AND COMPONENTS : QW-2209 Capacitor / Chip Capacitor / Chip Capacitor / Tantalum Capacitor / Chip Transistor 4 .Capacitor / Trimmer (7103 0458) 5 .Oscillator / Crystal Xtal (7110 1263) -
Page 7: Exploded View
All manuals and user guides at all-guides.com 4. EXPLODED VIEW : QW-2209 1a (1003 3957) 1b (1003 3958) 1c (1003 3951) 2a (7020 6090) 2b (7020 6092) 11 (7233 2736) 2c (1001 3459) 2d (1002 4508) 12 (7230 0616) 9 (7010 4674) -
Page 8: Parts List
All manuals and user guides at all-guides.com 5. PARTS LIST : QW-2209 Note: 1. Prices and specifications are subject to change without prior notice. 2. Spare parts are classified as follows according to their importance in after-sales service. A Rank ....... Very Important B Rank ....... -
Page 9: Precautions For Repair
All manuals and user guides at all-guides.com 6. PRECAUTIONS FOR REPAIR : QW-2209 6-1. AC (ALL CLEAR) AND REMOVING OF MODULE 1.Perform AC (ALL CLEAR) when inserting a new battery, or else the memories and or counters may give erratic displays. - Page 10 All manuals and user guides at all-guides.com CASIO TECHNO CO.,LTD. Overseas Service Division Nishi-Shinjuku Kimuraya Bldg. 1F 5-25, Nishi-Shinjuku 7-Chome Shinjuku-k u, Tokyo 160-0023, Japan EI1200601A Printed in Japan...
