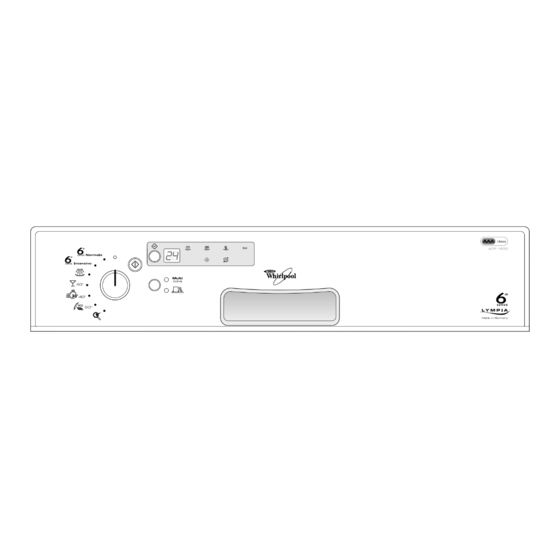

Whirlpool ADP 1830 Quick Reference Manual

ADP 1830
Programme selector knob
Mains On / Off
Start button
Switches "on" when the dishwasher is operating.
Flashes when a fault occurs. Switches off at the end
of the programme.
Indicators
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
Wash cycle
Pre-Rinse Washing
Programmes
Sensor Normal
Sensor Intensive
Pre-Rinse
Glass
Quickwash
Normal
Antibacterial
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to "User instructions";
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.: different
loads, water temperatures - above or below 15°C - as well as
water hardness and power supply voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".
Whirlpool is a registered trademark of Whirlpool USA
Before using the dishwasher, read the user instructions!
Quick Reference Guide
Programme
Drying
end
Programme chart
Loading instructions
Automatic programme recommended for
40-55°C
routine washes, with no dried-on or burnt
food (not for EN 50242).
Automatic programme recommended for
60-70°C
heavily soiled crockery with dried-on or burnt
food, for example pans and saucepans.
cold
Crockery to be washed later.
40°C
Light soiling, for example glasses and cups.
Lightly soiled crockery with no dried-on
40°C
food.
1)
50°C
Normally soiled crockery.
Normally or heavily soiled crockery, with
4) 5)
additional antibacterial action.
Options
"Half load - Multizone" button
Load the upper or lower rack only.
This function can be used with any programme.
Press once = upper rack (the indicator lamp comes on)
Press twice = lower rack (the indicator lamp comes on)
Press 3 times = Off (half load function deactivated).
When washing without the top rack, press the
"Half Load" button twice, or "Lower rack wash"
(relative LED lights up).
Time and failure display
Indicates in hours the time remaining until the start
of the wash cycle. Toward the end of the
programme, during the drying cycle, the display
will indicate the time remaining in minutes.
"F ...." Identification of faults for service technician
"Delayed start" button
The wash cycle can be programmed to start after 1 -
24 hours. With each successive touch of the button,
the delayed start indicator increases by 1 hour, and
after 24 returns to 00. Then press the Start button.
The dishwasher will start at the set time.
Detergent
A
X
X
-
X
X
X
X
4) The bacteria removal efficiency has been tested by the Institut
Pasteur de Lille (France), based on the NF EN 13697 standard
of November 2001.
5) Programme interruption (e.g. the door being opened) may
compromise the result of the antibacterial rinse.
(We reserve the right to make technical modifications)
GB
3)
2) 3)
Consumption
B
Litres kWh Minutes
X 10.0-13.0 0.80-1.05 60-120 50-110
X 13.0-20.0 1.10-2.00 100-150 90-140
- 4.0 0.03 14
- 10.0 0.80 55
- 10.0 0.65 30
X 13.0 1.05 135
X 13.0 1.50 115 105
5019 396 91540
WH/I/K/GB
