Performance Tool M649 Owner's Manual

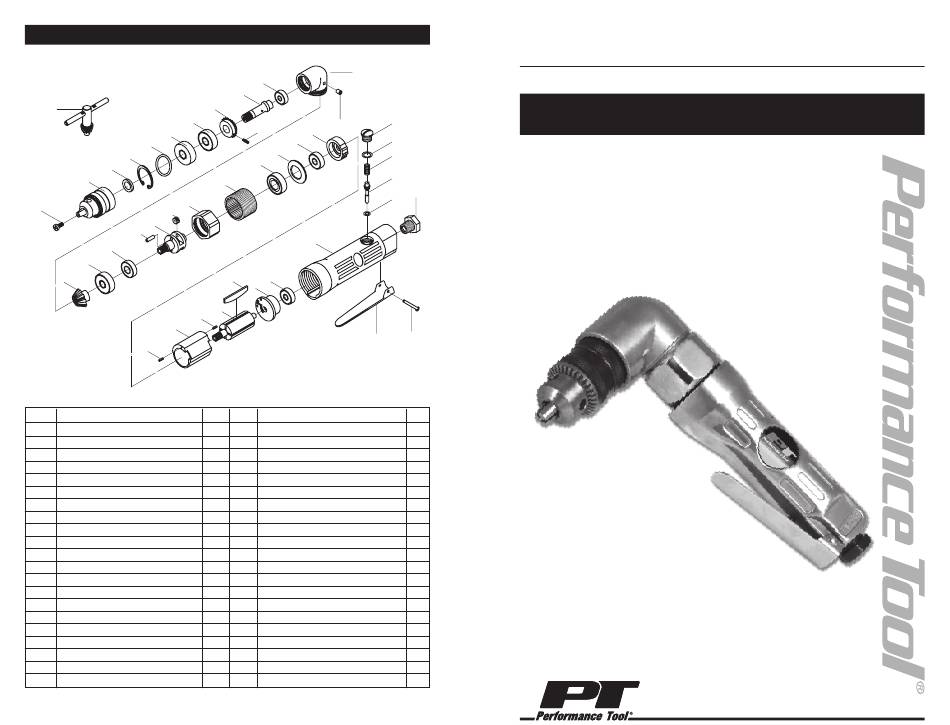

PARTS LIST
30
40
32
33
34
35
36
37
24
38
22
21
23
25
20
26
15
14
15
INDEX DESCRIPTION QTY INDEX
1 Housing
2 Air Inlet
3 Trigger
4 Trigger Pin
5 Valve Stem
6 O-Ring
7 Valve Spring
8 Valve
9 O-Ring
10 Rear End Plate
11 Bearing
12 Rotor
13 Rotor Blade
14 Cylinder
15 Dowel Pin
16 Front End Plate
17 Bearing
18 Washer
19 Bearing
20 Thread ring gear
21 Bearing
P.O. Box 88259 Tukwila, WA 98138 • 1-800-497-0552 • www.wilmarcorp.com • Made in China • © Copyright 2015
27
28
29
39
30
16
17
18
41
19
1
13 11
10
12
3
DESCRIPTION
1 22 Gear Plate
1 23 Gear
1 24 Pin
1 25 Clamp Nut
1 26 Bearing Ringer
1 27 Drive Gear
1 28 Angle Housing
1 29 Bearing
1 30 Spindle
1 31 Drive Gear
1 32 Screw
1 33 Bearing
4 34 Bearing Jacket
1 35 Washer
2 36 Retaining Ring
1 37 Washer
1 38 3/8in. Chuck
1 39 Chuck Screw
1 40 Oil Valve
1 41 Chuck Key
1
3/8" Dr. ANGLE HEAD AIR DRILL
Stock Number M649
8
9 SPECIFICATIONS:
7
Chuck Size (IN.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8
Air pressure (P.S.I.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
5
Average air consumption (C.F.M.) . . . . . . . . . . . . . . . . . . .4
2
6
Free speed (R.P.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . .1900
Air inlet (N.P.T.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4
Hose size (I.D.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8 in.
Length (IN.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.8
Weight (LBS.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4
Specifications are subject to change without notice.
4
QTY
1
2
2
1
1
1
1
1
1
1
1
1
WARNING!
1
1
READ, UNDERSTAND AND FOLLOW ALL
1
INSTRUCTIONS AND WARNINGS BEFORE
1
OPERATING THIS TOOL. FAILURE TO DO SO MAY
1
RESULT IN PERSONAL INJURY AND/OR PROPERTY
1
DAMAGE AND WILL VOID WARRANTY.
1
1
OWNER'S MANUAL
