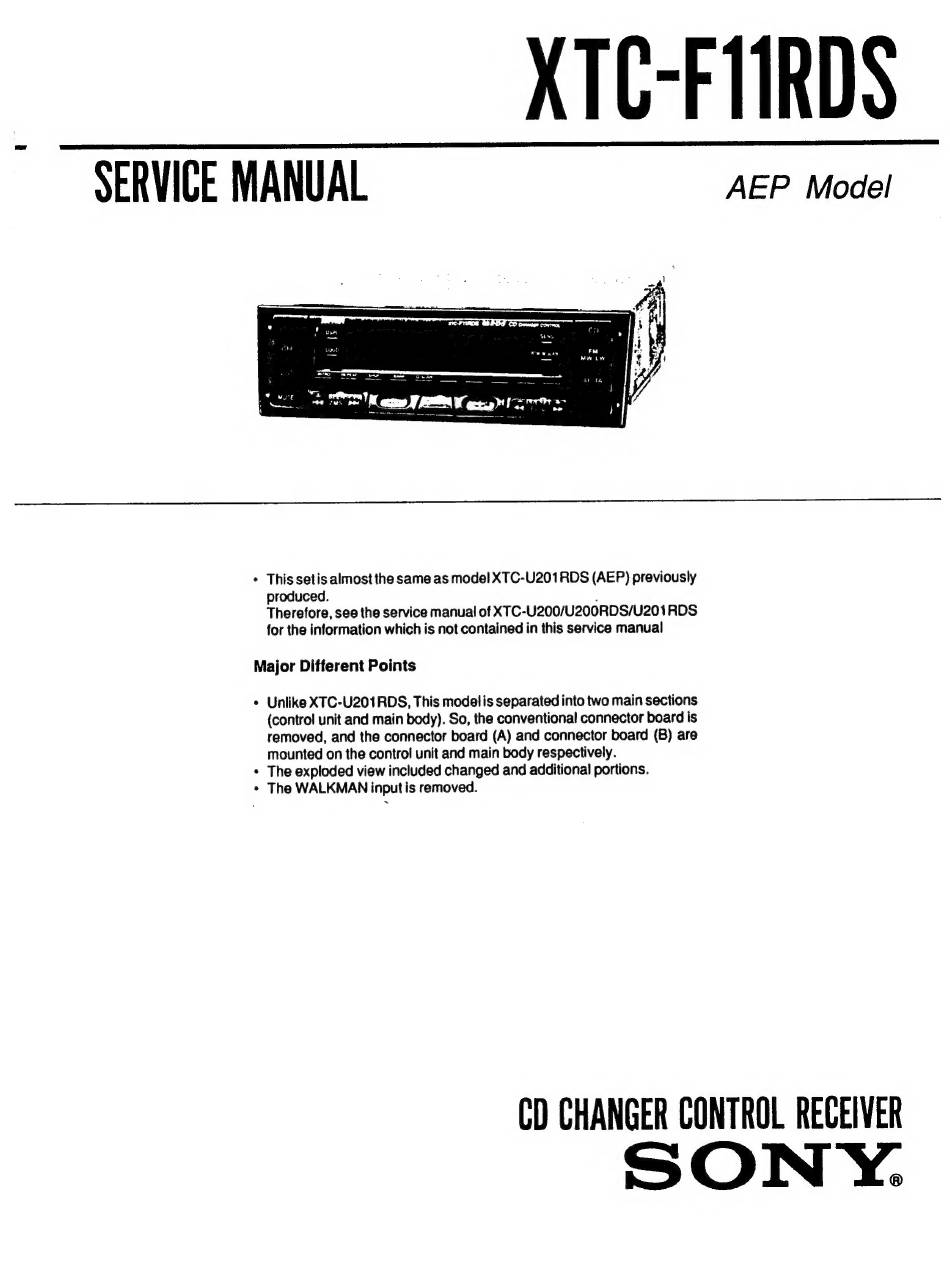

Sony XTC-F11RDS AEP Service Manual

XTC-FIIRDS
Le eee
q
* This setis almost the same as model XTC-U201RDS (AEP) previously
produced. .
Therefore, see the service manual of XTC-U200/U200RDS/U201 RDS
for the information which is not contained in this service manual
Major Different Points
¢ Unlike XTC-U201RDS, This model is separated into two main sections
(control unit and main body). So, the conventional connector board is
removed, and the connector board (A) and connector board (B) are
mounted on the control unit and main body respectively.
* The exploded view included changed and additional portions.
* The WALKMAN input is removed.
CD CHANGER CONTROL RECEIVER
SONTY.
