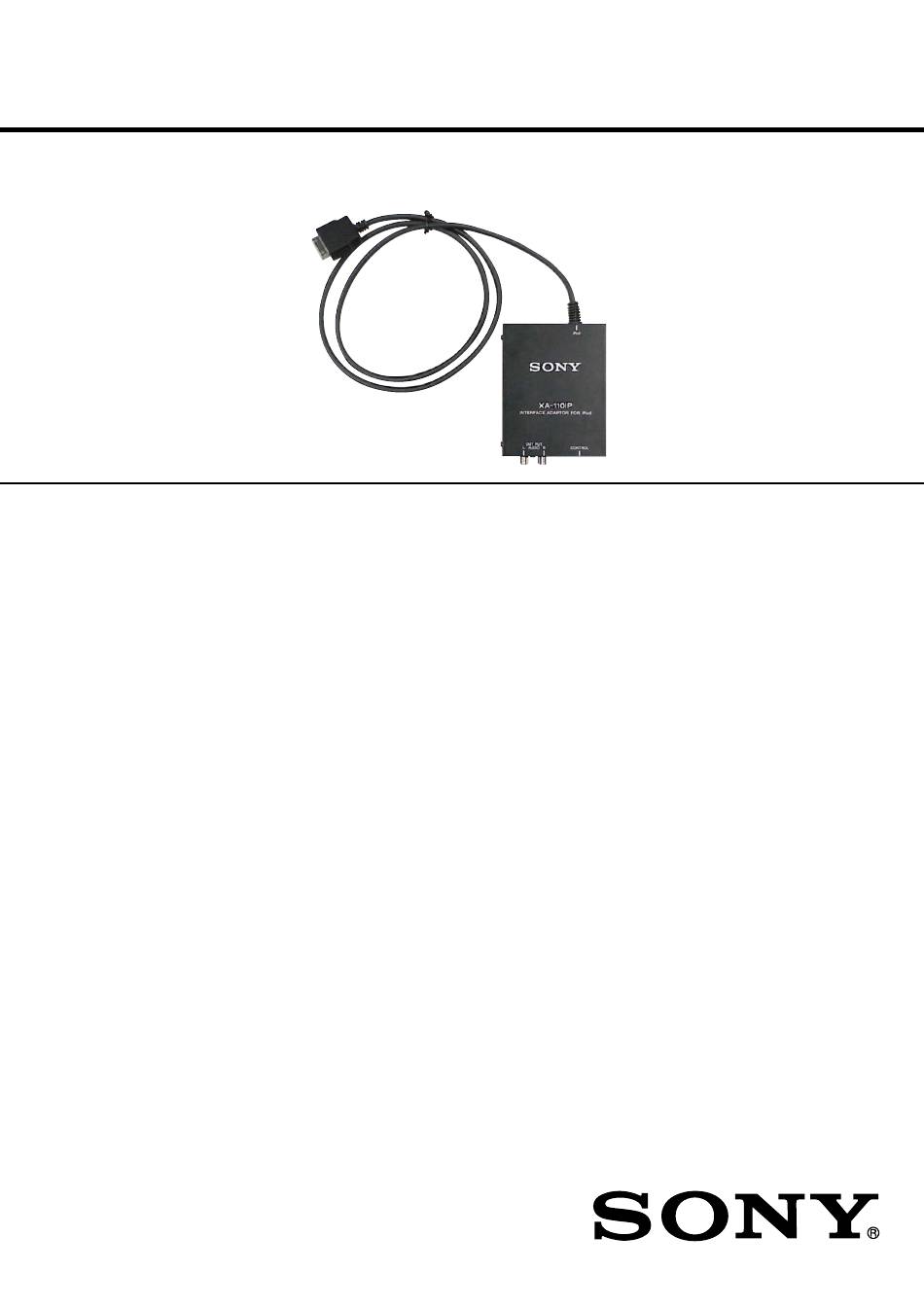

Sony XA-110IP Service Manual

SERVICE MANUAL
Ver. 1.0 2006.04
SPECIFICATIONS
Power requirements DC 12 V car battery (negative ground)
Approx. 95 × 75 × 30 mm
Dimensions
× 3 × 1
3
(3 /
4
Mass Approx. 215 g (8 oz)
Supplied accessories Parts for installation and connections
Design and specifi cations are subject to change without notice.
Warning
• The iPod has not been designed to withstand automotive temperature
extremes. Therefore, you should not leave the iPod in a vehicle for
extended periods. Leaving the iPod inside a vehicle on a moderately hot
or very cold day may damage the iPod.
• Sony is not responsible for incomplete recording/downloading or
damaged data due to problems of the player or computer.
Features
• Controls iPod from the car audio unit through Sony BUS.
• Display music information on the car audio unit.
• You can charge the battery by connecting the iPod to this unit.
• This unit can be used with SONY BUS compatible car audio units
released in October 2005 or later (except MEX-1GP, MEX-1GPX,
CDX-GT805DX, CDXGT800D, CDX-F605X and CDX-R505X).
iPod is a trademark of Apple Computer, Inc., registeredin the U.S. and
other countries.
Sony Corporation
9-887-228-01
eVehicle Division
2006D05-1
© 2006.04 Published by Sony Techno Create Corporation
3
/ in)
16
XA-110IP
Precautions
• Some SONY BUS compatible car audio units, released in October 2005
or earlier, may not work.
• This unit can be used with third-generation and later iPods, iPod photo,
iPod mini or iPod nano.
iPod Shuffle cannot be used, however.
• Touch wheel or scroll wheel type iPods without the dock connector
cannot be connected to this unit.
• This unit can be used with the following iPod versions. Correct function
of earlier versions cannot be guaranteed.
— Third generation iPod: Ver. 2.3
— Forth generation iPod: Ver. 3.0.2
— iPod photo: Ver. 1.1
— iPod mini: Ver. 1.3
— iPod nano: Ver. 1.0
• Choose the installation location carefully so that the unit does not
interfere with normal driving operations.

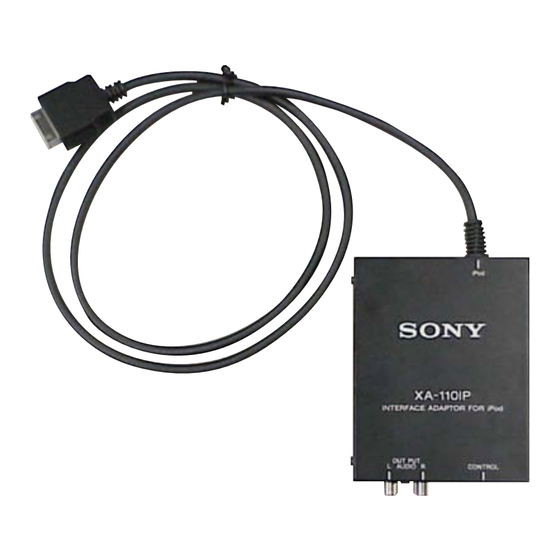

INTERFACE ADAPTOR FOR iPod
US Model
