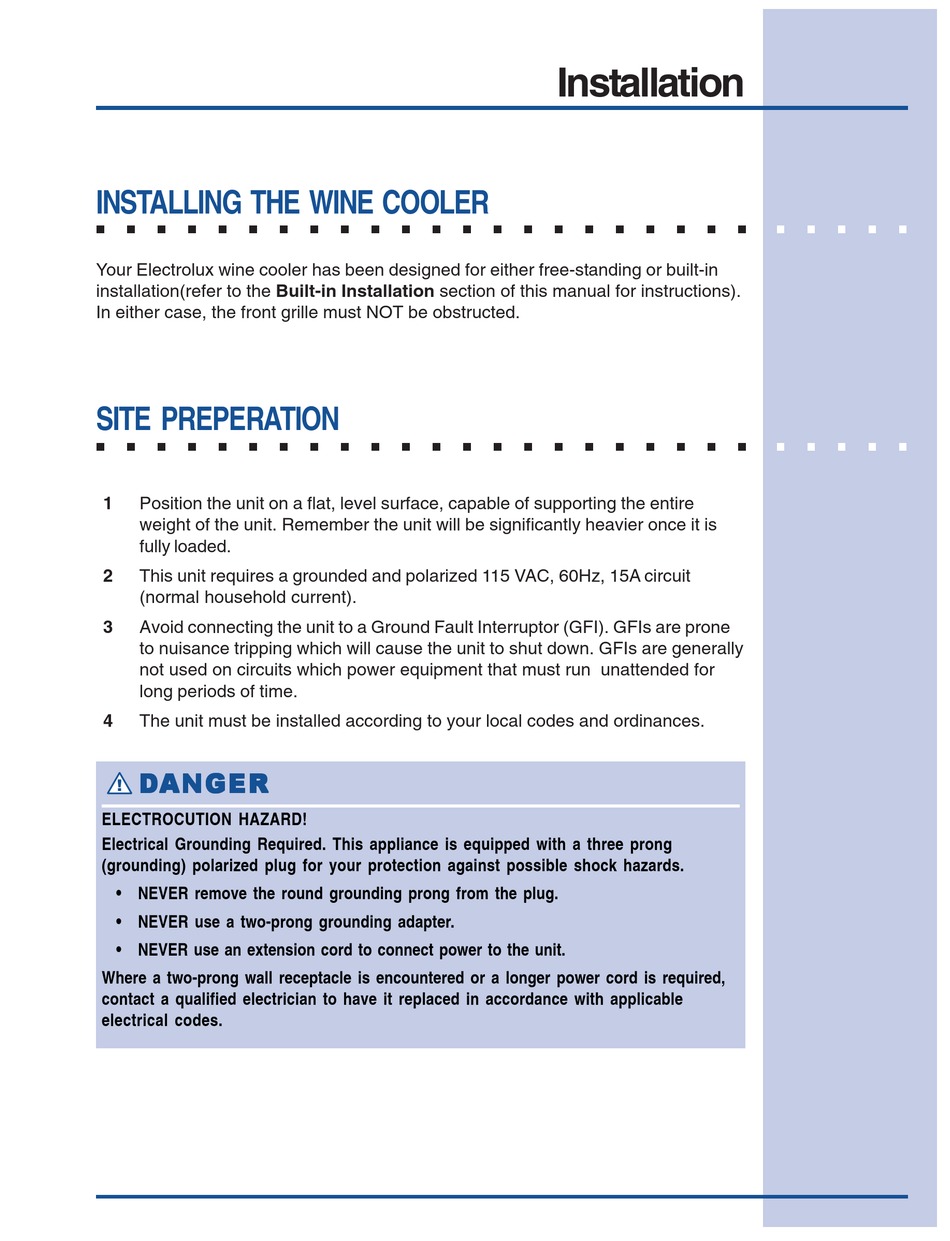

INSTALLING THE WINE COOLER

Your Electrolux wine cooler has been designed for either free-standing or built-in
installation(refer to the Built-in Installation section of this manual for instructions).
In either case, the front grille must NOT be obstructed.
SITE PREPERATION
1
Position the unit on a flat, level surface, capable of supporting the entire
weight of the unit. Remember the unit will be significantly heavier once it is
fully loaded.
2
This unit requires a grounded and polarized 115 VAC, 60Hz, 15A circuit
(normal household current).
3
Avoid connecting the unit to a Ground Fault Interruptor (GFI). GFIs are prone
to nuisance tripping which will cause the unit to shut down. GFIs are generally
not used on circuits which power equipment that must run unattended for
long periods of time.
4
The unit must be installed according to your local codes and ordinances.
D D D D D ANGER
ANGER
ANGER
ANGER
ANGER
!
ELECTROCUTION HAZARD!
Electrical Grounding Required. This appliance is equipped with a three prong
(grounding) polarized plug for your protection against possible shock hazards.
• NEVER remove the round grounding prong from the plug.
• NEVER use a two-prong grounding adapter.
• NEVER use an extension cord to connect power to the unit.
Where a two-prong wall receptacle is encountered or a longer power cord is required,
contact a qualified electrician to have it replaced in accordance with applicable
electrical codes.
Installation

Advertisement

loading

Related Manuals for Electrolux E24WC48EPS

Summary of Contents for Electrolux E24WC48EPS

  • Page 1: Installing The Wine Cooler

    Installation INSTALLING THE WINE COOLER Your Electrolux wine cooler has been designed for either free-standing or built-in installation(refer to the Built-in Installation section of this manual for instructions). In either case, the front grille must NOT be obstructed. SITE PREPERATION Position the unit on a flat, level surface, capable of supporting the entire weight of the unit.

  • Page 2: Site Preparation

    NOTE All units require zero clearance when installed flush with a CABINET cabinet or wall (see Figure 1). Electrolux stainless steel OR WALL models require a minimum 2-3/4 inch handle clearance when installed against a wall or cabinet that extends beyond the front edge of the unit (see Figure 2).

  • Page 3: Wood Trim

    Wood Trim WINE RACKS WITH WOOD TRIM Your Electrolux wine cooler is equipped with a natural wood trim on the wine racks for appearance and durability. The wood trim has been coated at the factory with a clear vinyl sealer, which will adequately protect the wood in normal usage.
  • Page 4 Wood Trim To stain for a different wood color: Remove five racks with wood trim from unit, see Rack Removal/ Installation. Remove screws securing wood trim to racks. Apply Minwax Water-Based Wood Stain® to wood with a synthetic foam brush. Stain must penetrate approximately 3 minutes. After this period, while stain is still wet, take a stain dampened rag and remove all excess stain.

  • Page 5: Leveling The Unit

    Leveling LEVELING THE UNIT Position the unit on a flat, level surface, capable of supporting the entire weight of the unit when full. This unit contains four adjustable leveling legs. Turn the legs clockwise to raise and counterclockwise to lower (see Figures 4 and 5).

  • Page 6: Door Reversal

    Door Reversal REVERSING THE DOOR All Electrolux wine cooler models are field reversible for left or right hand opening. The door opening is easily reversed by moving the hinge hardware to the opposite side (see Figure 6). To reverse the door: Remove top hinge screw pin (7/64"...
  • Page 7 Door Reversal HINGE SCREW Remove top hinge (3 screws), reinstall hinge screw pin, and remount on opposite side BOTTOM (see Figure 10). Remove the two door closer plastic inserts from the existing bottom hinge and install as shown on the new bottom hinge (see Figure 11).
