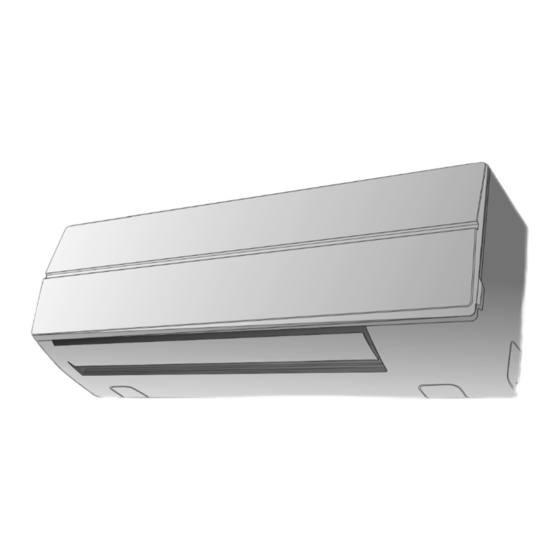

- Page 1 INSTALLATION MANUAL ENGLISH AIR CONDITIONER (SPLIT TYPE) FRANÇAIS Indoor unit RAS-30SKP Series Outdoor unit RAS-30S Series 1110651126 Toshiba 1110651126 (CV_F).indd 1 Toshiba 1110651126 (CV_F).indd 1 11/6/08 5:55:48 PM 11/6/08 5:55:48 PM...
-
Page 2: Table Of Contents
Remote Control A-B Selection ..........7 Sélection de Télécommande A-B ..........7 Test Operation ................8 Opération du Test ..............8 Auto Restart Setting ...............8 Réglage de la Remise en Marche Automatique .....8 Toshiba 1110651126 (TOC).indd 1 Toshiba 1110651126 (TOC).indd 1 11/6/08 5:57:02 PM 11/6/08 5:57:02 PM... -
Page 3: Precautions For Safety
Also, make sure the equipment is properly earthed. • Appliance shall be installed in accordance with national wiring regulations. If you detect any damage, do not install the unit. Contact your TOSHIBA dealer immediately. CAUTION • Exposure of unit to water or other moisture before installation could result in electric shock. -
Page 4: Installation Diagram Of Indoor And Outdoor Units
Liquid side : ∅6.35 mm 120 mm each Gas side : ∅15.88 mm Pipe insulating material (polyethylene foam, 8 mm thick) Drain outlet Air outlet Putty, PVC tapes each Toshiba 1110651126 (01_EN).indd 2 Toshiba 1110651126 (01_EN).indd 2 11/10/08 1:32:39 PM 11/10/08 1:32:39 PM... -
Page 5: Indoor Unit
NOTE • When drilling a wall that contains a metal lath, wire lath or metal plate, be sure to use a pipe hole brim ring sold separately. Toshiba 1110651126 (01_EN).indd 3 Toshiba 1110651126 (01_EN).indd 3 11/10/08 9:04:44 AM 11/10/08 9:04:44 AM... -
Page 6: Wiring Connection
Outward form of indoor unit Left R 30 mm (Use polisin (polyethylene) core or the like for bending pipe.) Bottom right Use the handle of screwdriver, etc. Right Toshiba 1110651126 (01_EN).indd 4 Toshiba 1110651126 (01_EN).indd 4 11/10/08 9:04:46 AM 11/10/08 9:04:46 AM... -
Page 7: Indoor Unit Fixing
• An allowable height level is up to 10 m. such as from audio equipment, welders, and medical equipment. • A place where the drain water does not cause any problems Strong wind Toshiba 1110651126 (01_EN).indd 5 Toshiba 1110651126 (01_EN).indd 5 12/9/08 10:46:39 AM 12/9/08 10:46:39 AM... -
Page 8: Refrigerant Piping Connection
Be sure to use a vacuum pump with counter-fl ow prevention function so that inside oil of the pump does not fl ow backward into pipes of the air conditioner when the pump stops. Toshiba 1110651126 (01_EN).indd 6 Toshiba 1110651126 (01_EN).indd 6 11/10/08 9:04:51 AM... -
Page 9: Others
• The remote control signal is not received when the settings of indoor unit and remote control are different. • There is no relation between A setting/B setting and A room/B room when connecting the piping and cables. Toshiba 1110651126 (01_EN).indd 7 Toshiba 1110651126 (01_EN).indd 7 11/18/08 1:27:43 PM 11/18/08 1:27:43 PM... -
Page 10: Test Operation
• Do not operate ON timer and OFF timer. 2. Press and hold the RESET button on the indoor unit for 3 seconds to cancel the operation. (3 beep sound but OPERATION lamp does not blink) Toshiba 1110651126 (01_EN).indd 8 Toshiba 1110651126 (01_EN).indd 8 11/10/08 9:04:55 AM...
