aci A/TT100-LT-O-4 Installation & Operation Instructions

Low temperature outside air transmitter sensor
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

LOW TEMPERATURE OUTSIDE
AIR TRANSMITTER SERIES SENSOR
Installation & Operation Instructions
PRECAUTIONS
• DO NOT RUN THE WIRING IN ANY CONDUIT
WITH LINE VOLTAGE (24/120/230 VAC).
MOUNTING INSTRUCTIONS
Separate the cover from the base. Attach the base
directly to the wall or to a standard 2" x 4" junction
box using the (2) #6-32 x 1" screws provided.
Take care when mounting. Check local code for
mounting height requirements. Typical mounting
heights are 48-60" (1.2-1.5 m) o the ground and at
least 1.5' (0.5 m) from the adjacent wall. The sensor
should be mounted in an area where air circulation is
well mixed and not blocked by obstructions.
*Reference FIGURE 2 (p. 2)
For optimal temperature measurement:
• Do not install on external walls.
• Avoid air registers, di users, vents, and windows.
• Avoid con ned areas such as shelves, closed
cabinets, closets, and behind curtains.
• Eliminate and seal all wall and conduit penetrations.
Air migration from wall cavities may alter
temperature readings.
• A thermally-insulated backing should be used when
tting to solid walls (concrete, steel, etc.). ACI part:
A/ROOM-FOAM-PAD
*Reference FIGURE 3 (next page)
• Do not install near heat sources, eg: lamps,
radiators, direct sunlight, copiers, chimney walls,
walls concealing hot-water pipes.
Refer to the Wiring Instructions (p. 2) to make
necessary connections. After wiring, attach the
cover to the base by snapping the top of the cover
on rst and then the bottom. Tighten the cover
down, using the (2) 1/16" Allen screws located in
the bottom of the housing. A 1/16" Hex driver is
needed to secure the cover to the base.
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com

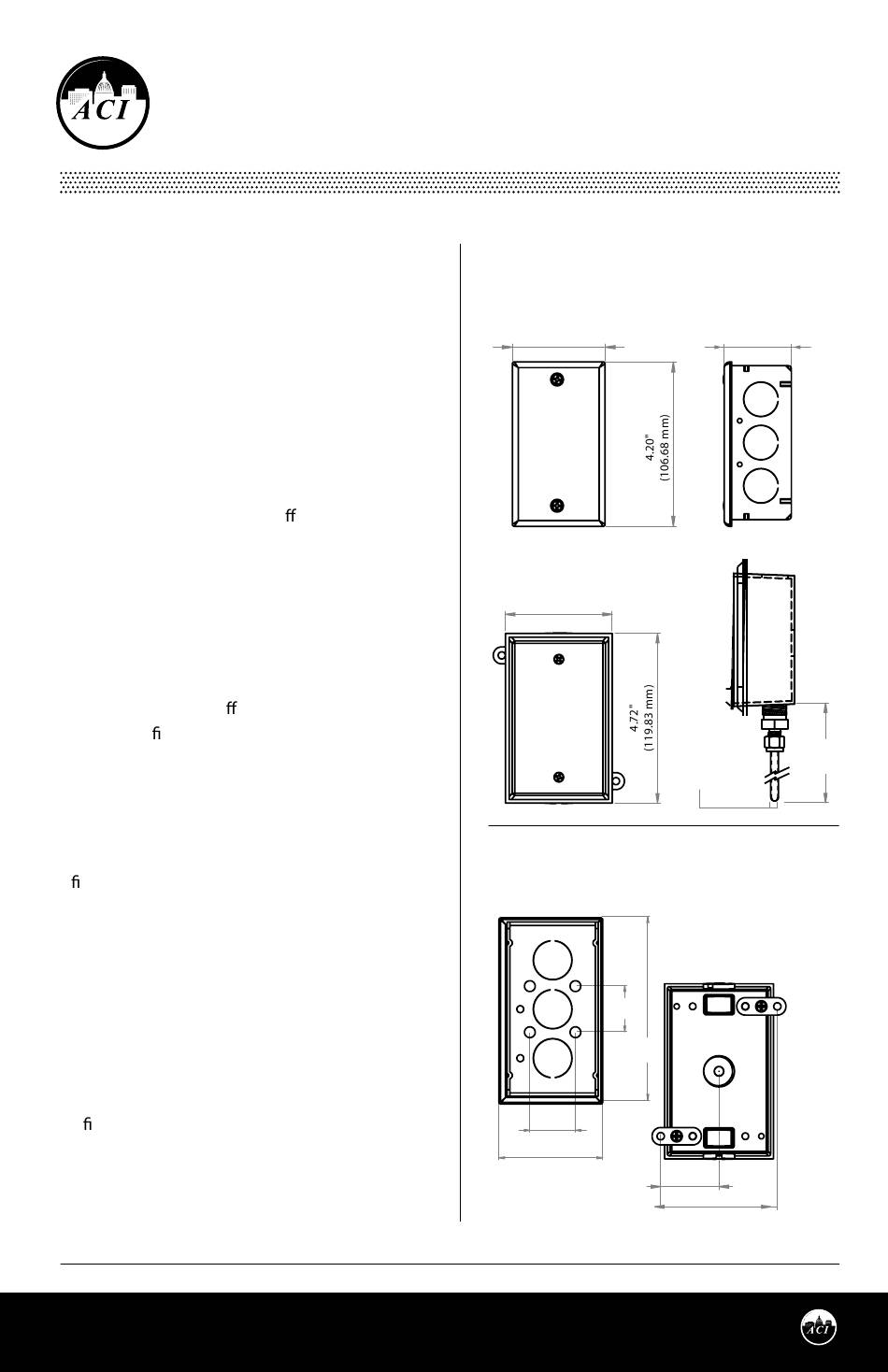

FIGURE 1: ENCLOSURE
DIMENSIONS
GALVANIZED (-GD, Transmitter)
2.41"
(61.21 mm)
BELL BOX (-BB, Sensor)
2.95"
(75.00 mm)
FIGURE 2: MOUNTING
DIMENSIONS
-GD Enclosure (Transmitter)
(27 mm)
(108.71 mm)
1.06"
(27 mm)
2.41"
(61.21 mm)
Page 1
Phone: 1-888-967-5224
Website: workaci.com
1.78"
(45.18 mm)
0.25"
(6.35 mm)
-BB Enclosure (Sensor)
1.06"
4.28"
1.59"
(40.39 mm)
3.18"
(80.77 mm)
Version: 2.0
I0000851
3.00"
(76.20 mm)
