FlashBack-4 Quick Setup Guide
FlashBack-4 is capable of recording one channel of HD video or up to four
channels of SD video. The HD input is either a dedicated HD micro-Cam from
Ovation Systems, or an HDSDI camera via an adaptor. The SD inputs can be
recorded individually, or all four inputs can be combined into one HD quad.

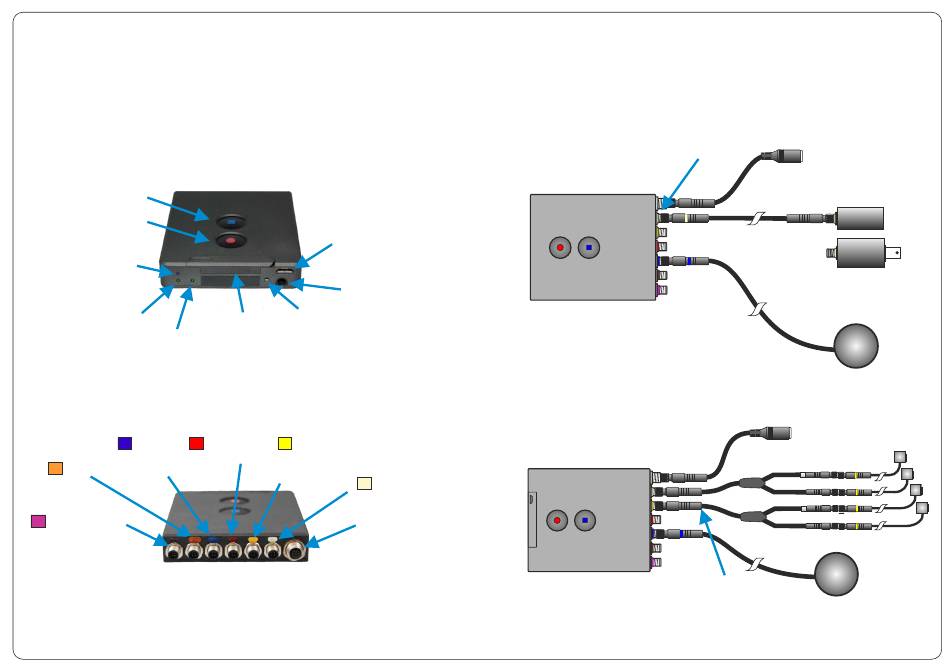

Front Panel Interface:
Record Stop
Record Start
Network Status LED
Video Status LED
DVR Status LED
up to 256GB max
Rear Panel Interface:
RS232
+ GPS power
Ethernet
(fixed to GPS)
i-Conex USB
Expansion Port
NB: Functions shown in
Full information is available from Ovation's Secure User Area. Please email support@ovation.co.uk with the serial number of one of your units to gain access.
USB SD Card
Reader
Audio & Video
Monitor Output
Format/Reset
SD card of
Button
2 x Audio In SD 1 & 3
+ mic bias Video In
+ camera power
i-Conex HD
or SD 2 & 4 In
+ camera power
DC Power
6 to 30 V DC
(+ 2 external
trigger inputs)
grey are not yet operational
FlashBack-4 uses Ovation i-Conex cabling system. A set of interface cables are
included that are colour-coded for various functions e.g. yellow for SD video,
blue for RS232 etc. Connect the cables as required; two examples are shown
below.
Basic HD Installation:
cream
Basic 4 x SD Installation:
Audio
NB: Use this input
if only connecting
one SD camera
DC Power Skt
6 to 30V DC
(centre +)
OSL
micro-Cam
Up to 2 metres
or
i-Conex to HDSDI
adaptor
(720p/60 or 1080p/30)
GPS puck with
RS232 output
4 x i-Conex
DC Power Skt
micro-Cam
6 to 30V DC
(centre +)
Cam 4
Cam 2
Cam 3
Cam 1
GPS puck with
RS232 output
