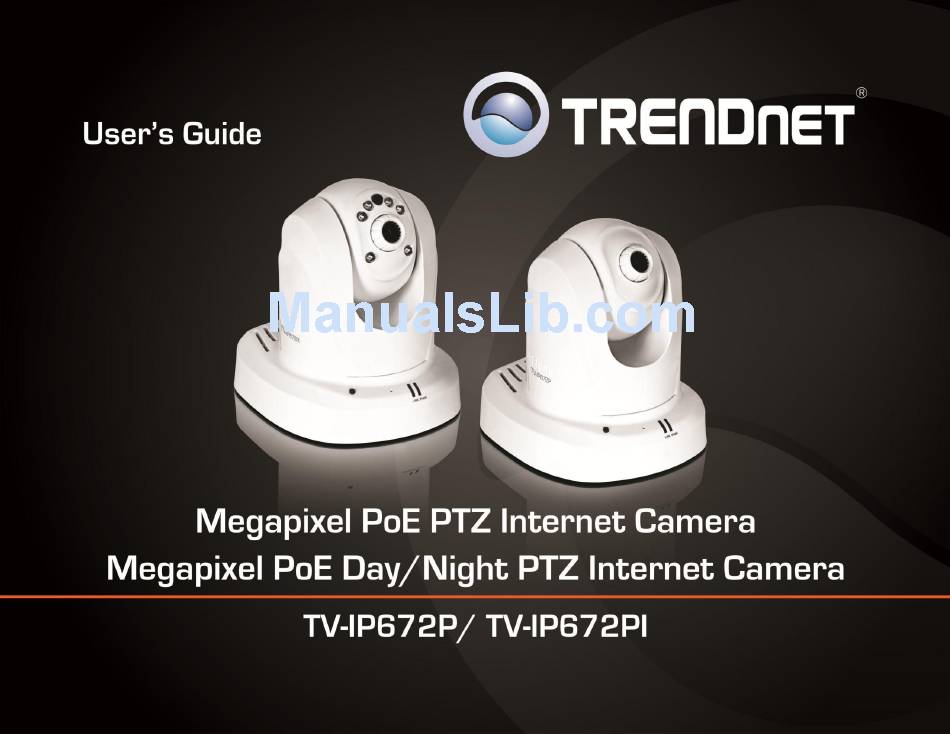

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Dynamic DNS ......................15 Video and Audio ......................15 Video and Audio ...................... 16 Day/Night Mode ...................... 17 Audio Setup ......................17 Image Setup ......................17 Action ........................... 18 Recording ........................ 18 Video Clip ........................ 19 © Copyright 2011 TRENDnet. All Rights Reserved.

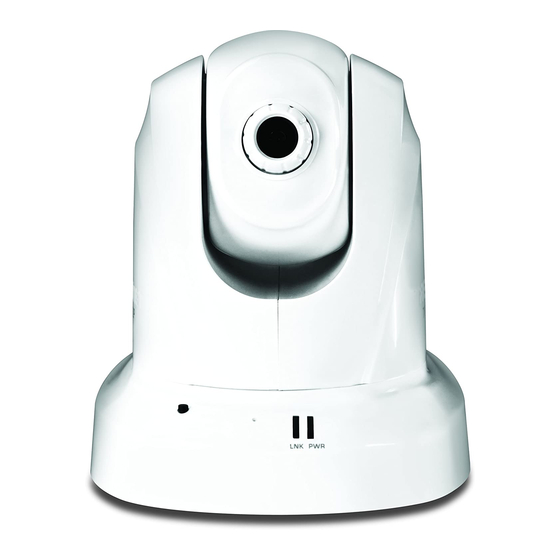

  • Page 3: Product Overview

    HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan/tilt Auto-Patrol, H.264/MPEG-4/MJPEG...

  • Page 4: Product Hardware Features

    Line Out – Connect speaker to enable audio out   Micro SD Lot – Insert a Micro-SD card to store camera video files. Link – This LED indicator is blinking orange when there is connection/data to your camera. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 5: Installation

    Attach the included power supply to the DC 12V 1.25A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicating that the camera has power. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 6: Starting The Setup Wizard

    When the installation of the Setup Wizard is complete, run the Setup Wizard: 1. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The TRENDnet Setup Wizard appears. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 7 Fixed IP: Select this option if your camera is directly connected to a DSL modem and your ISP has supplied you with a fixed IP for your Internet connection. Select the radio button for your connection type and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 8 9. After the Setup Wizard configures the camera, the wizard starts to setup You are now ready to use your camera. process. Click the IP address link or the link button to access the camera’s advanced configuration page. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 9: Configuration

    Web configuration utility is designed to allow you to easily access and configure your TV-IP672P or TV-IP672PI camera. Open a web browser such as Internet Explorer® and enter the IP address of your camera. To log in, use the User name admin and the password you created in the Setup Wizard.
  • Page 10 This profile, in grey, is inactive. Active Profile This profile, in yellow, is active. Full Screen Mode The viewable screen is expanded to full screen Snapshot Click this button to take a snapshot of your current viewing angle. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 11: Setup Wizard

    In DHCP Connection all fields are non-existent cause your router selects an IP address for you. Under Static IP address field to enter the IP address details yourself according to what your network provider gave you. Select the appropriate option and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 12 Next to continue. again and then enter the Timeout settings in hours. Click Next to continue. If you do not want to use the DDNS settings uncheck the Enable checkbox and click Next. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 13 Auto Daylight Saving or Set date and time manually. Click Next to to exit without saving the settings. continue. The camera will gather and reboot the camera to its new settings © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 14: System

    Authentication: Here you have three options to authenticate. RTSP Authentication, HTTP Authentication, and Snapshot. Click the checkbox to enable each authentication process or leave them blank. Click Save to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 15 Under Time Configuration, select a Time Zone from the drop-down list. Click the checkbox next to Enable Daylight Saving to enable this function and choose either Auto Daylight Saving or Set DST Manually. Click Apply to continue. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 16: Network

    Click the UPnP Port Forwarding checkbox if you want to enable to set the ports. Select the External HTTP port and select the RTSP port. If you are using a MAC check the Bonjour checkbox to enable this function. Click Apply to set the changes. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 17: Dynamic Dns

    Host Name, with the profile icons in Live View. Setting up each profile individually gives the user User Name, Password, Confirm Password, and Timeout. Click Apply to set these better choice. changes and continue. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 18: Video And Audio

    RTSP URL – play1.sdp Video Profile Four for Mobile Devices Only - Options:  Encode Type – H.264 & MPEG4  Resolution – 640X400/320X192/160X96  FPS – 30/15/10/5/3/2/1  Encode Method – CBR/Quality © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 19: Day/Night Mode

    Exposure and White Balancing. The settings can be viewed “live” through the LIVE VIDEO display in the forefront image. If you wish to discard the changes you made click the Reset to Default button. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 20: Action

    Motion, click the Onlyduring checkbox. Then a calendar of the days of the week appears. Here you can click one of the day’s checkboxes and you can create a start and end time. The Recording Type changes to pre-record or pre-event settings. This means © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 21: Video Clip

    Folder (if needed) and enter the disk space needed. If you click the Account radio button then enter a Username and Password. This will authenticate the user every time they log on to the samba server. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 22 Filename Prefix – the filename you are using to access the data or save the data to result will not be successful. Interval – The default interval range is 60-86400. the time the server interacts with your camera Passive Mode – Server/client initiation access to bypass proxies. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 23: Snapshot

    5. Click the Default Home button if you wish to use this configuration as your default home viewing area. 6. Preset Position – From the Preset Position drop-down menu, you can select the preset you created and delete it. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 24 4. For each Patrol Position you can adjust the Pan/Patrol Speed (1-3 with 1 being the slowest), and Dwelling Time (in seconds). This indicates the time needed to span an area covered by the camera. 5. Click Apply to continue and finish the process. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 25: Sd Management

    This is useful when the camera is out of focus and comes back into focus at a later stage. Once you have set all setting options click Apply. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 26: Tools

    When you want to reset the camera to system default, click the Restore Factory Defaults button to reset the system. If the system is not working properly for any reason, you can reboot the system by clicking the Reboot Device button. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 27: Advanced

    The description is laid out in the picture below. For more monitoring features, please refer to SecurView Pro software user’s guide for details. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 28: How To Setup/Access The Camera Remotely

    HTTP Port on the camera is 80. The example shows above is using port number 9000. 4. Open another web browser and go to your Router’s Web Configuration page. (In the example, TRENDnet’s TEW-651BR Wireless N router is used) © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 29 Configure DDNS on your router 3. Enable DDNS, fill out the following information and then click Apply. 1. Go to Camera’s DDNS  Ports Number section, assign a HTTP port for your camera and click Apply. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 30 Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar. 5. Open another web browser and enter your DDNS domain and camera’s port number. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 31: Technical Specifications

    IEEE 802.3af Power over Ethernet (PoE) 3GPP (video only) Power, Link/Act Management Reset Button Reset to factory default System Web based administration Privacy Button Privacy mode on/off Access Up to 20 user accounts © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 32 Action: send real-time snapshot or video recording to FTP or email Network IEEE 802.3u 10/100Mbps Auto-MDIX Fast Ethernet Port Settings HTTP port: 80 (default) IEEE 802.3af Power over Ethernet (PoE) RTSP port: 554 (default) © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 33 RTP (Real Time Protocol) Required storage: 32MB (minimum per profile) RTCP (Real Time Control Protocol) Recording type: event based (motion detection and digital input trigger), RTSP (Real Time Streaming Protocol) continuous, and scheduled 3GPP (video only) © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 34 Trigger event: motion detection or digital input signal Action: send real-time snapshot or video recording to FTP or email Port Settings HTTP port: 80 (default) RTSP port: 554 (default) Time Synchronize with NTP server or set time / date manually © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 35: Troubleshooting

    © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 36 EN 301 489-17 V2.1.1 (2009-05) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 37 TRENDnet declara que este TV-IP672P / TV-IP672PI está conforme provisions of Directive 1999/5/EC. [Portuguese] com os requisitos essenciais e outras disposições da Directiva Español Por medio de la presente TRENDnet declara que el TV-IP672P / 1999/5/CE. [Spanish] TV-IP672PI cumple con los requisitos esenciales y cualesquiera Slovensko...
  • Page 38 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.
