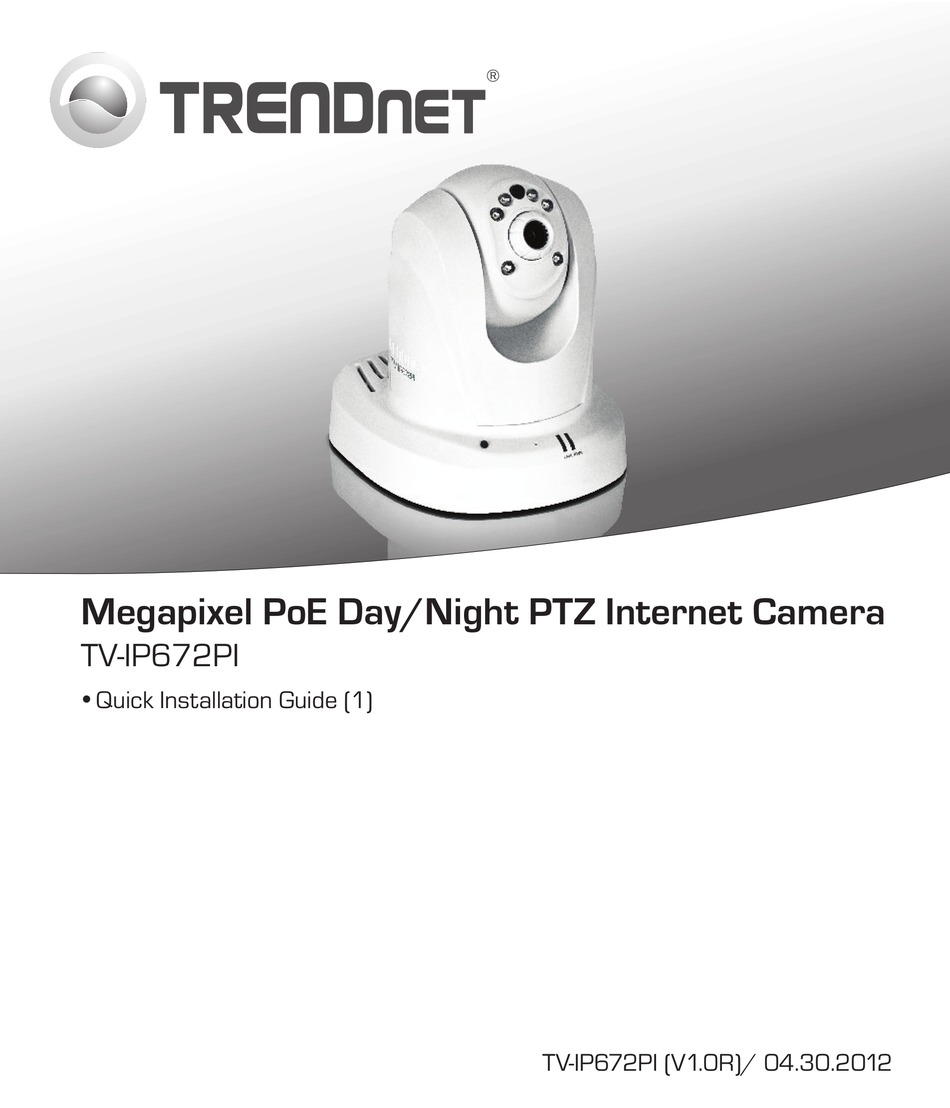

Megapixel PoE Day/Night PTZ Internet Camera
TV-IP672PI
 Quick Installation Guide (1)
TV-IP672PI (V1.0R)/ 04.30.2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the TV-IP672PI and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TV-IP672PI

Summary of Contents for TRENDnet TV-IP672PI

  • Page 1 Megapixel PoE Day/Night PTZ Internet Camera TV-IP672PI  Quick Installation Guide (1) TV-IP672PI (V1.0R)/ 04.30.2012...

  • Page 2: Package Contents

    1. Before You Start Package Contents  TV-IP672PI  CD-ROM (Utility and User's Guide)  Multi-Language Quick Installation Guide  Network cable (1.5 m / ft.)  Mounting kit  Power adapter (12V DC, 1.25A) Minimum Requirements  A computer with an Ethernet port and web browser ...

  • Page 3: Hardware Installation And Configuration

    2. Hardware Installation and Configuration 1. Do not install or mount the IP camera until 5. Once the management interface has opened after you complete the installation steps in your web browser, save the link of the IP below. Temporarily place the IP camera next address to your desktop for ease of access.
  • Page 4 Using the TV-IP672PI with a PoE switch (TPE-T80) Internet TPE-T80 TV-IP672PI 1. Connect the provided network cable from the Power over Ethernet switch (e.g. TPE-T80) to the network port on the IP Camera. 2. Connect the switch to your network.
  • Page 5 Using the TV-IP672PI with an Injector (TPE-113GI) TPE-113GI Non-PoE Non-PoE TV-IP672PI 1. Connect the power adapter to the TPE-113GI and then to a power outlet 2. Connect a network cable from the TV-IP672PI to the TPE-113GI's PWR+DATA OUT port 3. Connect a network cable from a switch or router (e.g. TEW-639GR) to the TPE-113GI's DATA IN port.
  • Page 9 Garantia Limitada Suporte Técnico Registre Seu Produto TRENDnet garante seus produtos contra defeitos em material e mão de obra, sob Se você encontrar dificuldades na instalação Para garantir o alto nível do service e condições normais de uso e serviço, pelo seguinte tempo a partir da data da...
