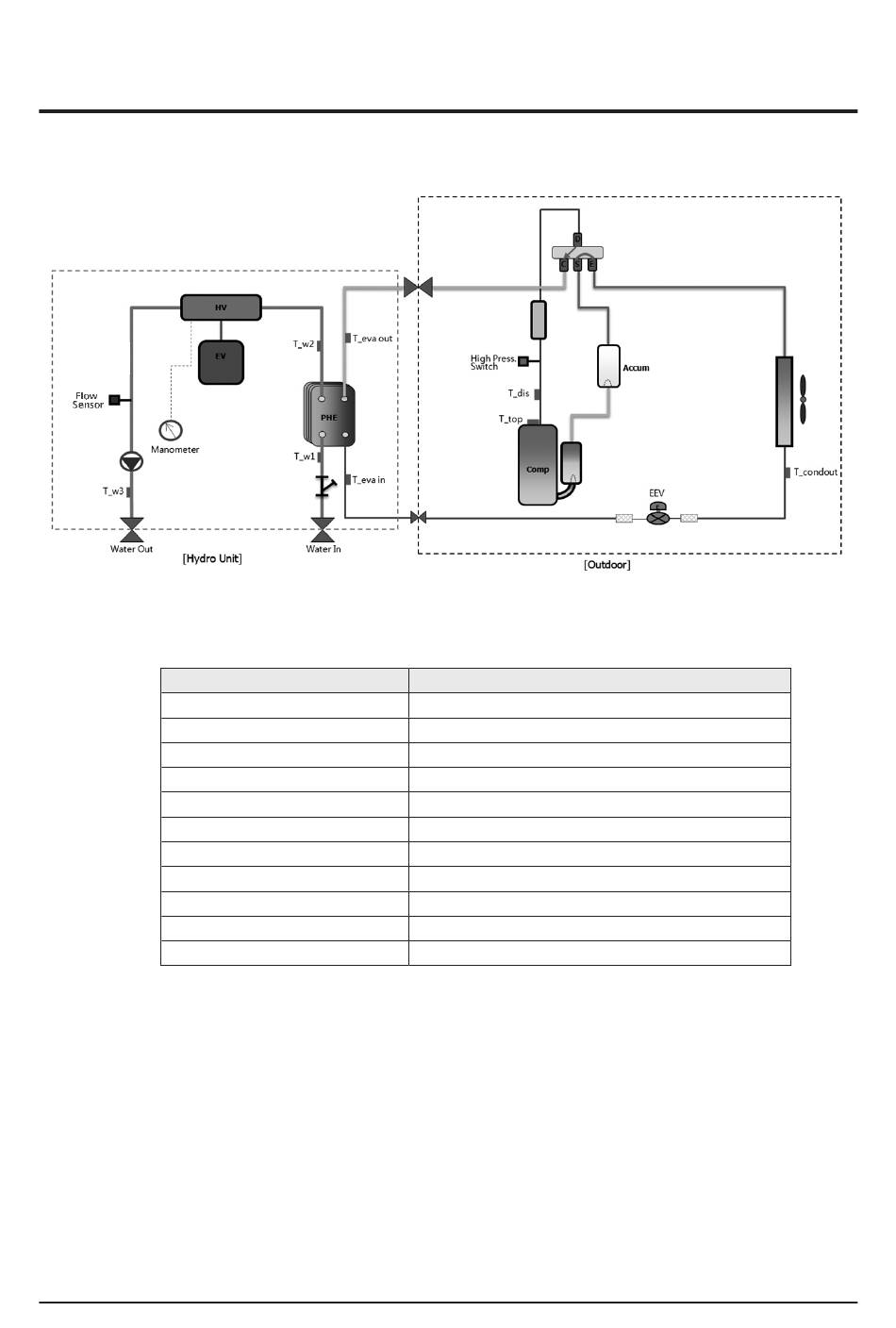

7-4 Hydro Unit(SPLIT)

162
Part
T_w1
T_w2
T_w3
T_top
T_dis
T_eva in
T_eva out
T_condout
PHE
HV
EV
Description
Water Inlet temp sensor
Water PHX Outlet temp sensor
Water Outlet temp sensor
Compressor Top temp sensor
Discharge temp sensor
Eva In temp sensor
Eva Out temp sensor
Condout temp sensor
Plate heat exchanger
Heater vessel
Expansion vessel
