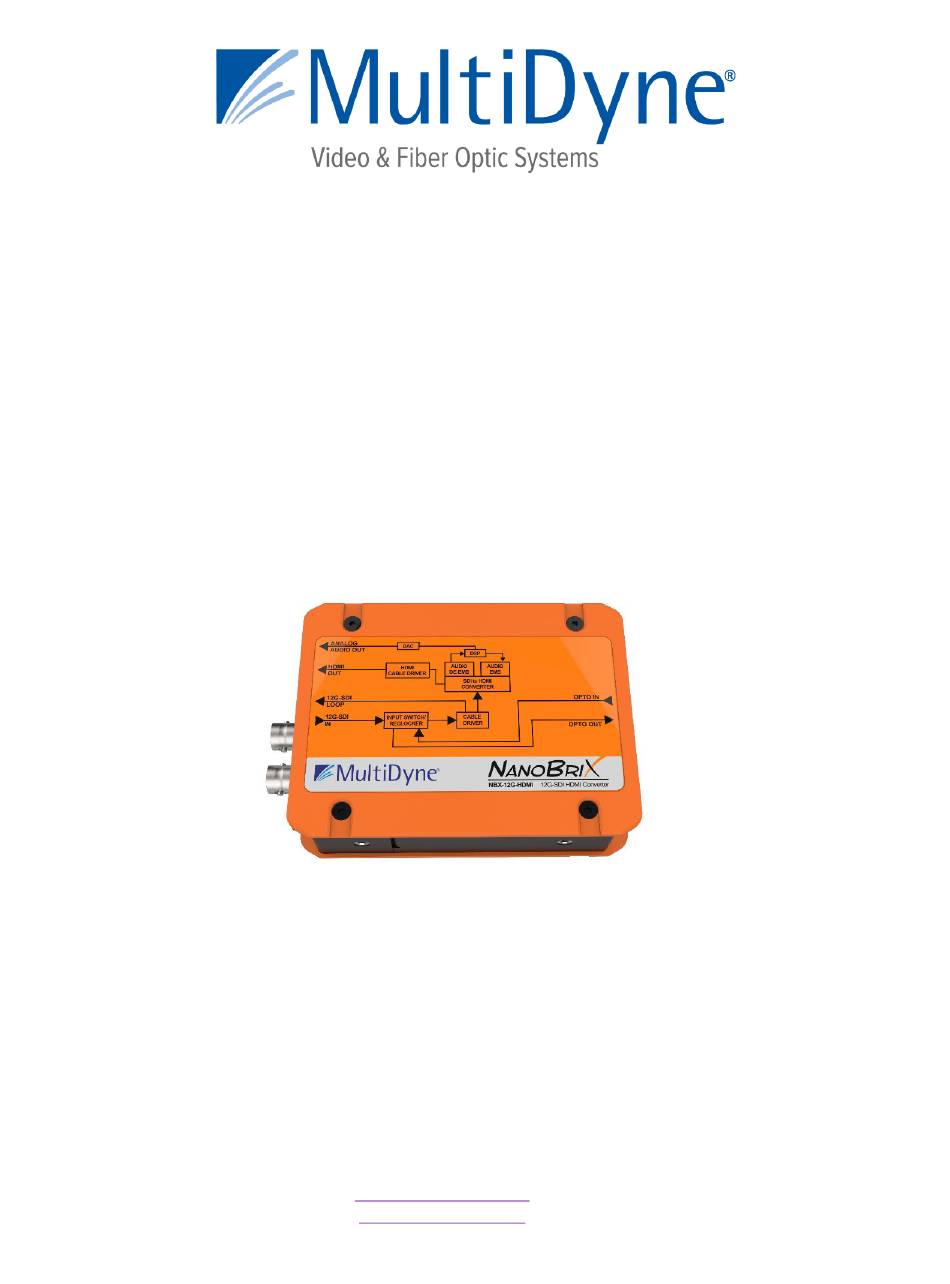

- Page 1 NB2-12G-HDMI 12G/6G/3G/HD/SD-SDI to HDMI 2.0 Converter USER MANUAL 252 INDIAN HEAD RD, KINGS PARK, NY 11754 USA (877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362 sales@multidyne.com www.multidyne.com...
-
Page 2: Table Of Contents
DOCUMENT REVISIONS Table of Contents Document Revisions ..........................2 Declaration of Conformity ........................3 Safety Info ............................. 3 Laser Safety Information ........................4 Overview ............................5 Overview of the Product Family and Variants ................. 5 Purpose and Applications ....................... 6 Key Features .......................... -
Page 3: Declaration Of Conformity
• Protect the power cord from being walked on or pinching particularly at plugs, convenience receptacles, and point where they exit from apparatus. • Only use attachments/accessories specified by MultiDyne®. P a g e... -
Page 4: Laser Safety Information
LASER SAFETY INFORMATION • Use only with the cart, rack, stand, • tripod, bracket, or table specified by MultiDyne®, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 5: Overview
Overview Overview of the Product Family and Variants The NB2-12G-HDMI by MultiDyne represents a cutting-edge solution for professionals in the broadcast and video production industries. Designed to meet the diverse needs of signal conversion, the NB2- 12G-HDMI offers reliable and high-quality performance. MultiDyne's NANOBRIX series, which includes the NB2-12G-HDMI, is renowned for its compact and rugged design, making it ideal for various applications, including live broadcasts, stadiums, shared control rooms, and campus facilities. -
Page 6: Purpose And Applications
OVERVIEW Purpose and Applications The primary purpose of the NB2-12G-HDMI is to facilitate the conversion of 12G-SDI signals to HDMI 2.0, enabling the integration of professional-grade 12G-SDI signals into consumer and professional HDMI displays. This functionality is crucial for scenarios where high-definition video needs to be displayed on standard HDMI monitors or projectors. - Page 7 FEATURE DESCRIPTIONS Robust Design and Durability Compact and Rugged Enclosure: Designed with a compact and rugged steel enclosure, the • NB2-12G-HDMI series is built to withstand the demands of professional broadcast environments. Reclocked SDI Output: Features a reclocked SDI loop output that maintains signal integrity, •...
-
Page 8: Feature Descriptions
FEATURE DESCRIPTIONS Feature Descriptions Power Side The power side of the NB2-12G-HDMI series includes several key components that facilitate its primary functions. Here’s a detailed description of each component and its functionality. Locking DC Connector for AC Adapter (DC Input) This is the main power input for the device using a locking DC connector to ensure a secure and reliable connection. -
Page 9: Fiber Side
FEATURE DESCRIPTIONS Analog Audio Output (3.5mm Jack Connector) This analog audio output provides stereo audio connection, which can be routed to powered speakers or headphones. The output is selectable via DIP switches for either stereo pair or Lt/Rt multichannel downmix, allowing flexibility in audio monitoring and output configurations. It allows the audio embedded in the SDI signal to be output separately through an analog connection, offering versatility for various audio devices. -
Page 10: Firmware Update
FEATURE DESCRIPTIONS Stop bits: 1 • Parity: None • • Flow Control: None 3. Open Terminal Application Launch a terminal application with serial COM port communication capabilities. • • Open the configured COM port. • If the menu is not displayed correctly, ensure options like "new line mode" or "Implicit CR in every LF"... -
Page 11: Dip Switch Settings
FEATURE DESCRIPTIONS 2.2.3 DIP Switch Settings On the fiber side, there are 8 DIP switches used to configure different parameters. Each DIP switch has 2 positions i.e. Top (position ‘0’) and bottom (position ‘1’). Descriptions of each parameter is provided below. - Page 12 FEATURE DESCRIPTIONS 1: Stereo/LtRt downmix (based on Downmix mode setting) is embedded into the HDMI stream. Downmix Mode (0 - Stereo, 1 - Downmix) Select between stereo and LtRt (Left total/Right total) downmix for the analog audio output. Settings • 0: Stereo channels to audio jack.
-
Page 13: Status Indicators
APPLICATIONS 2.2.4 Status Indicators 1. Power Indicator Color: Green Status Always On: Indicates that the device is powered on and operational. • 2. Optical Input Indicator Color: Blue Status Blinking: Optical SDI input is being used. • Constant: Valid optical SDI signal is present but not being used. •... -
Page 14: Applications
APPLICATIONS Applications The NB2-12G-HDMI series is versatile and suitable for various professional broadcast and video production environments. Here are some application examples: 1. Live Broadcast Description: The NB2-12G-HDMI series is ideal for live broadcast environments where high-quality video conversion and signal integrity are crucial. It can be used to convert 12G-SDI signals to HDMI for monitoring purposes, ensuring that broadcast operators have real-time access to high-definition video feeds. -
Page 15: Accessories & Replacement Parts
TROUBLESHOOTING Description: Post-production studios require precise video signal conversion to ensure the highest quality of video editing and grading. The NB2-12G-HDMI series can be used to convert SDI signals to HDMI for accurate monitoring on professional HDMI displays. Example: In a film editing studio, the NB2-12G-HDMI can convert 12G-SDI output from the editing suite to HDMI, allowing editors to view the content on high-resolution HDMI monitors. -
Page 16: Troubleshooting
Use only MultiDyne-recommended cleaning products designed for fiber optic cable connections. MultiDyne recommends Sticklers Fiber Optic Connector Cleaner and Benchtop Clean Wipes. For in- depth cleaning, MultiDyne recommends Bulkhead Ferrule Cleaner tool. -
Page 17: Specifications
SPECIFICATIONS Specifications Coaxial Serial Data Input/Output Connector 75-ohm BNC Bit Rate 270 Mbps – 12 Gbps Cable Auto Equalization 60m - Belden 1694A @ 12 Gbps 80m - Belden 1694A @ 3 Gbps 120m - Belden 1694A @ 1.5 Gbps 200m - Belden 1694A @ 270 Mbps Standards SMPTE 424M, 292M, 259M-C, 2082-1... -
Page 18: Contact Support
This document and the information contained herein are the property of MultiDyne. and are provided solely for the purpose of operating and maintaining MultiDyne products. No part of this document may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of MultiDyne, except for the use of brief quotations in a review.
