MultiDyne MD9200-ENC Quick Start Sheet

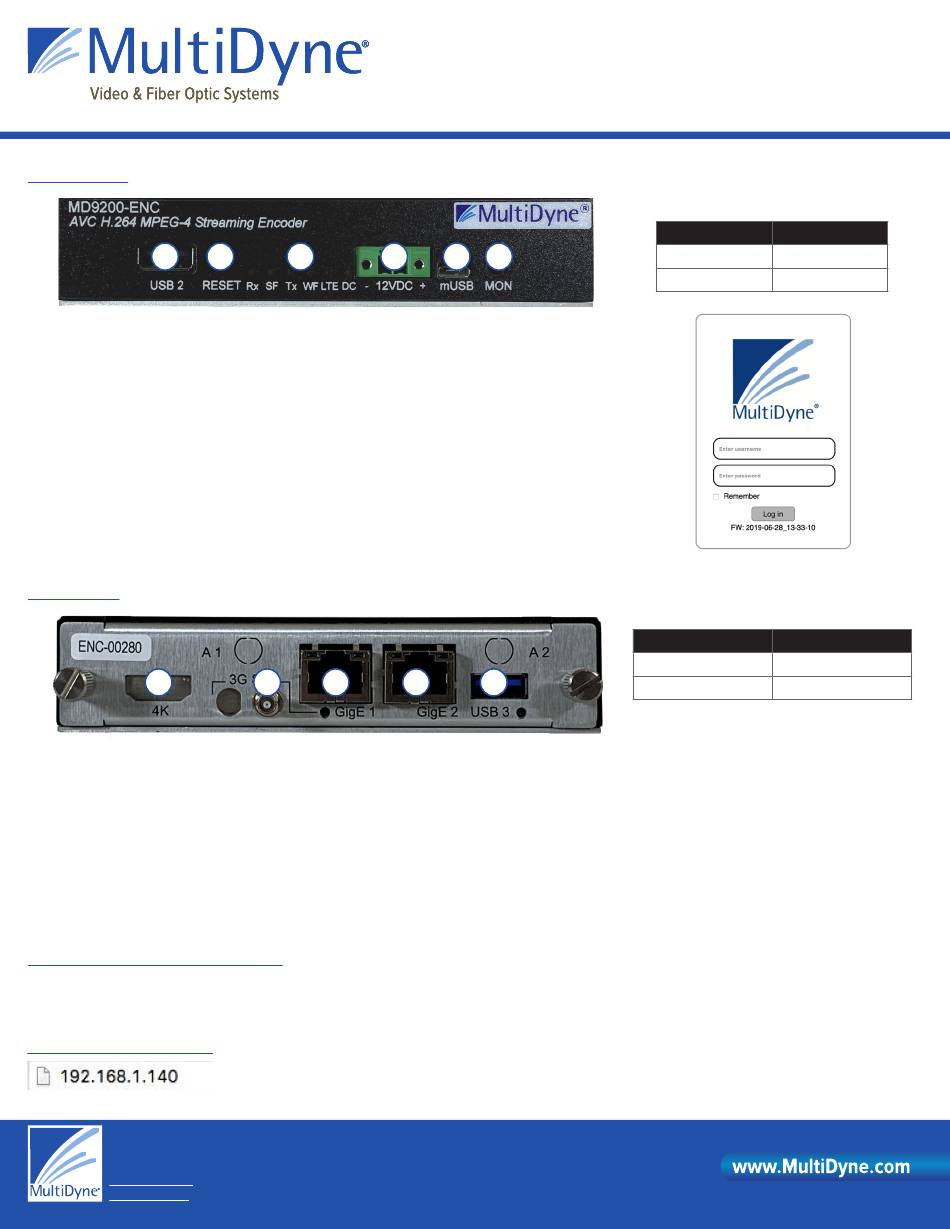

FRONT PANEL

1
1. USB 2.0 for media, firmware update and factory restore
2. Reset button. Press and release to reset. Press and hold 10 seconds to factory restore.
3. Status LEDs. Tx: encoding. SF: screen format. Rx: unused. WF: WiFi. LTE: cellular. DC: input voltage
active, flash indicates system is operational.
4. 12 Volt DC input.
5. microUSB for terminal. Not for users.
6. Monitor: audio and video jack.

BACK PANEL

1
1. HDMI output. Unused.
2. 3G SDI input.
3. Gigabit Ethernet port 1. Default avahi named address. [serial number].local/ Default is DHCP.
4. Gigabit Ethernet port 2. Default is 192.168.2.7.
5. USB 3.0 for media, firmware update and factory restore.

CONNECTING TO THE MD9200-ENC

The MD9200-ENC uses a modern HTML5-embedded Web server for user configuration. Users can connect to the MultiDyne device via Gigabit Ethernet (GigE)
port 1 or GigE port 2. GigE port 1 is factory defaulted to DHCP and GigE port 2 is factory defaulted to 192.168.2.7.
LOGIN WITH IP ADDRESS:
10 Newton Place
Hauppauge, NY 11788
1-877-685-8439 / +1-516-671-7278
sales@multidyne.com
www.multidyne.com
2 3 4
.
2 3
© 2018 MultiDyne © 08/2017 MultiDyne
Stand-Alone OTT Streaming Media Encoder
5 6
4 5
Specifications subject to change without notice Specifications subject to change without notice
MD9200-ENC
Quick Start Sheet
Web UI Value
Username 9200
Password ENC
Gigabit Ethernet Port Configuration
GigE 1
GigE 2 192.168.2.7
