- Page 1 USB Server User Manual...
- Page 2 USB Server User Manual Copyright Notice Copyright Incorporated 2009. All rights reserved. Disclaimer Incorporated shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
-
Page 3: Table Of Contents
USB Server User Manual TABLE OF CONTENT Introduction ............................. 4 Features ............................4 Unpacking ........................... 4 Software Installation ........................5 Utility ............................6 Menu bar ..........................6 Using the utility for USB Servers ....................7 ... -
Page 4: Introduction

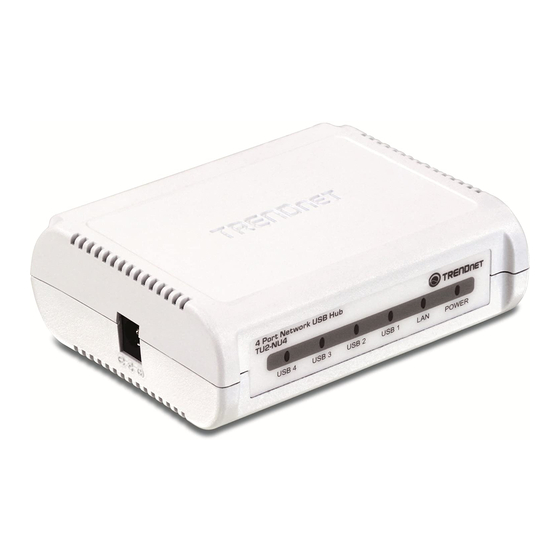

USB Server User Manual Introduction The 4-Port Network USB Hub (model TU2-NU4) provides access to most USB devices over a Local Area Network. Connect USB hard drives, flash drives, printers, digital cameras, iPods™ and other USB peripherals to this compact hub for fast network-wide file sharing. -
Page 5: Software Installation
USB Server User Manual Software Installation 1) Insert the Utility CD-ROM into your computer’s CD_ROM Drive and click Install Utility. 2) Follow the InstallShield Wizard Instructions 3) Click Finish to restart the computer. -
Page 6: Utility
USB Server User Manual Utility To start the USB Server program, please double click the shortcut icon of the USB Server on the Desktop. This brings up the main dialog. The main dialog box of USB Server is shown below. Menu bar System: Provides option to exit and close utility Tools... -
Page 7: Using The Utility For Usb Servers
USB Server User Manual Basic: Check option to have utility automatically run during PC start up Display: Check this option to display selected server information Auto Disconnect: Enable this option on the type of devices (USB storage or USB printers) after idle period. Idle period is set to 3 minutes. Help About: Display utility information. -
Page 8: General Configuration
USB Server User Manual Go to Homepage: Click this option to open the TU2-NU4’s user interface. Configure Server: Click this option to configure the TU2-NU4 through the utility General Configuration Server Name: Assign the name of the selected USB server and click OK. -
Page 9: Maintenance
USB Server User Manual Maintenance Server Password New Password: Enter a new password for the TU2-NU4 Confirm Password: Re-enter the new password for the TU2-NU4 Submit: Click Submit when new password information has been entered System Firmware: Update File: Click this option to update the firmware on the TU-NU4... - Page 10 USB Server User Manual Connect: Select the USB device listed on the utility and click to establish connection. Disconnect: Select the connected USB device and click to properly disconnect the USB device. Request to Disconnect: Click when another user is connected to the USB device.
-
Page 11: Configuration With Web-Based Ui
USB Server User Manual Configuration with Web-based UI Your default web browser will pop up and take you into the web-based configuration UI of the server. This is the main page of the configuration UI. You can see the important information about the USB Server and the device(s) connected to it. -
Page 12: Network Information/Setting
USB Server User Manual Network Information/Setting This page displays the current network setting of the server and provides links to the pages where you can perform special actions. You can change the network setting according to your need. However, please note that if you would like to give this server a static IP, please disable the DHCP option. -
Page 13: Factory Default
USB Server User Manual With the “Reset Server” button you can reboot the server. However, if there is a password, you must enter it for this function to work. Password is by default blank. So, unless a password is explicitly set, you do not have to enter anything for the reset function to work. -
Page 14: Change Password
USB Server User Manual Please first click on the “Browse” button to browse to the firmware you would like to upload and then click on the “Save” button to update the firmware. You do not need to provide a password for this operation if there is not password set. -
Page 15: Specifications
USB Server User Manual Specifications Hardware Standards IEEE 802.3 (10Base‐T), IEEE 802.3u (100Base‐TX), USB 1.1/2.0 LAN Port 1 x 10/100Mbps Auto‐MDIX Ethernet port USB Ports 4 x USB 2.0 LED Indicators Power, LAN, USB Port 1‐4 TCP/IP Protocol DHCP Supported Supported OS Windows 2000/XP (32/64bit)/2003 Server/ Vista (32/64bit) Buttons Reset button – restores factory default settings Power Supply Power adapter 5V DC, 3A Power Consumption 1.1w (max) Dimensions 100 x 78 x 31mm (3.93 x 3.07 x 1.22in.) (LxWxH) Weight 128g (4.5oz) Operating: 0~55°C (32‐131 °F) Temperature Storage: ‐10~70°C (14‐158 °F) Operating: 10%~90% (non‐condensing) Humidity Storage: 5%~90% (non‐condensing) Certifications CE, FCC ... -
Page 16: Limited Warranty
If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit’s warranty continues from the original date of purchase. - Page 17 USB Server User Manual TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees.
- Page 18 MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
- Page 19 USB Server User Manual...
