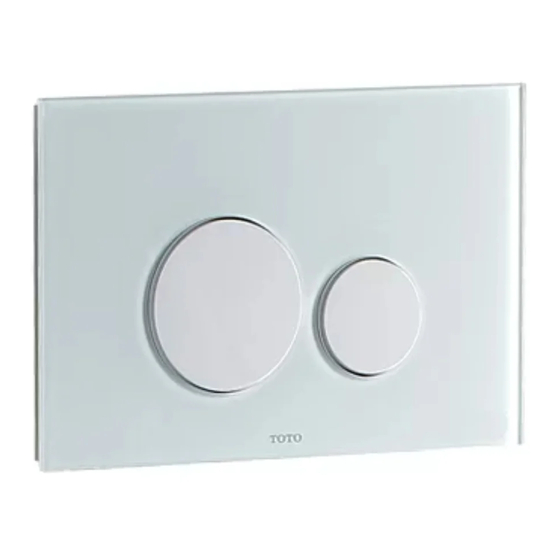

Toto MB176G WH User Instructions

手动隐藏式水箱工作面板使用说明书
USE INSTRUCTIONS FOR MANUALACTUATOR PLATE
执行标准：GB 26730-2011
适用产品 Applied to product
产品型号：MB176G#WH 产品型号：MB170P#WH
Product Models：MB176G#WH Product Models：MB170P#WH
产品型号：MB170P#SS
Product Models：MB170P#SS
产品型号：MB171M#SS 产品型号：MB175M#SS
Product Models：MB171M#SS Product Models：MB175M#SS
STANDARDS: GB 26730-2011
产品型号：MB174P#WH
Product Models：MB174P#WH
产品型号：MB174P#SS
Product Models：MB174P#SS
Cautions
注意事项
提示: 表示如果无视此标志而错误理解、操作时可能发生误解、危害人体及损
!
坏物品的事件。
! Remind:
If there is no sign of this ,it will lead to faulty understanding、misunderstanding occurred
during operation、incidents of harming the human body or damaging goods.
简易故障判断及处理方法
Self diagnosis and troubleshooting
温馨提示：
!
以下表格的问题点的处理方法中有注明（针对用户）的，用户可以参照自行
解决。如果解决不了，严禁未经指定的非专业人士进行自行拆解和维修，需及
时联系相应的专业人士解决，避免问题扩大化或产生不必要的麻烦和损失。
!
Warm reminder：
Users can handle with problems by self in accordance with the table if the solution has marked out for
users.non-professionals are baned on disassembling and repairing.please contact with the
corresponding professionals to solve in case of magnify the problem or cause loss.
常见故障 原因
Common faults Reason
传动杆未旋转到位，头部两翼与
面板支架卡住。
The transmission rod is not rotated to the
面板按不下去
position, or the head wings was stuck with
If the plate can't press the plate bracket.
down.
传动杆太长，与编织管等零件
卡住.
冲水后一直有水流
Transmission rod is too long cause the
到马桶里，再次按
parts stuck with braided tube.
压面板不冲水
When after flush but
still have water to the
toilet,when press the
plate again it don't flush.
处理方法
Processing methods
拆下面板，按说明书将传动杆
旋转到位，听到咔哒一声为到
位(针对专业人员）。
Remove the plate, according to the
instruction manual and rotated the
transmission rods,When heard a click
sound explain it has been installed to
the position(for professional person).
拆下面板，按说明书将传动杆
裁切适当长度，再安装，听到
咔哒一声为到位(针对专业
人员）。
Remove the plate,according to the
instruction manual and cut the drive
rod to approprite length, installation
again.When heard a click sound
explain it has been installed to the
position(for professional person).
563*** 18-1.0
