TECHNICAL DATA
MODEL
SKU
SOLAR PANEL
WATTS
DIMENSION
OPERATION TEMPERATURE
LENS
DETECTION ANGLE
DETECTION DISTANCE
BATTERY TYPE
SENSOR TYPE
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read
these instructions carefully before starting the installing and keep this manual handy for future
reference. If you have any another query, please contact our dealer or local vendor from whom
you have purchased the product. They are trained and ready to serve you at the best.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
INSTRUCTION MANUAL

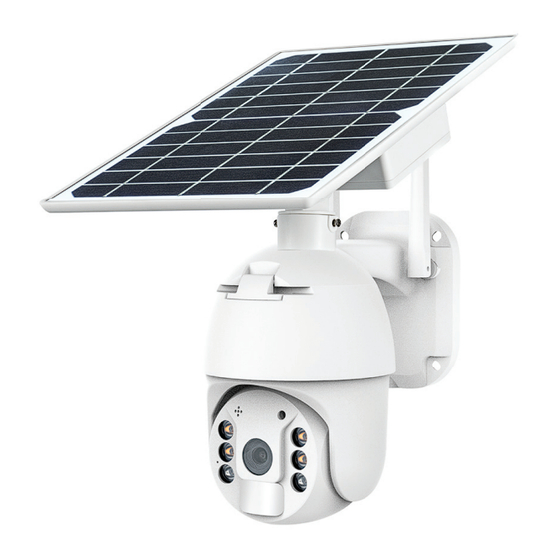

PTZ SOLAR CAMERA
VT-11024-WiFi
11617 (White), 11618 (Black)
11617 (White), 11618 (Black)
8W
4
170x210x165mm
-30°C to +60°C
3.6mm
95°
0-12 Meters
18650 2600mAh Battery
PIR
WEEE Number: 80133970
Advertisement
Table of Contents
Related Manuals for V-TAC VT-11024-WiFi
Summary of Contents for V-TAC VT-11024-WiFi
- Page 1 SENSOR TYPE INTRODUCTION Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
-
Page 2: Safety Warning
• This product is suitable for products manufactured by the company harm or death. V-TAC, when connected with products of other companies, V-TAC is not responsible for any adverse consequences for your health. MAINTENANCE & WARNING FOR SOLAR PANELS •... -
Page 3: Packaging List
PACKAGING LIST 1. Solar Panel (1pc) 2. PTZ Camera (1pc) 3. Screw kit (1pc) • Hexagon Spanner (1pc) • Screw Driver (1pc) • Screws (8pcs) • Tapping Screw (4pcs) • USB Charging Screw (1pc) 4. User Manual (1pc) 5. Positon paper (1pc) PRODUCT DIAGRAM Solar panel Battery compartments... -
Page 4: App Installation
PROCESS 1. Solar panel: connect panel to camera, fix a suitable angle with screws 2. SD card installation: open thesilicon flap and insert the SD card, then make sure to close the slicon flap to avoid rain leakage 3. insert TF card, then tightening the screws.. Power cable connect the cables between the panel and camera, then tightening the waterproof cap. -
Page 5: Auto-Pairing
AUTO-PAIRING 1. Enable Bluetooth and Home Wifi for the device to access your wifi connection for pairing. It will automatically find the nearest device. 2. Click “Scan” icon in the top right corner. MANUAL PAIRING 1. Select theSmart Camera (Wi-Fi) option from the devices list. - Page 6 Step 7: Once you have successfully completed step 6, will show the QR code. Show this QR Code to the camera face with the distance of 15-20cm away. Camera will automatically detect the QR code and start to pair. Step 8: A er successfully pairing the ptz camera with the app, you can start controlling multiple features of the ptz camera through your mobile –...
-
Page 7: Technical Specification
TECHNICAL SPECIFICATION RESOLUTION 2MP (1920*1080) DETECTION MODE PIR HUMAN DETECTION DETECTION DISTANCE 0~12M DETECTION ANGLE 95° ALARM MODE REALTIME CALLING OR PUSH MESSAGE PTZ ANGLE HORIZONTAL 355 ° VERTICAL 100° SPEED HORIZONTAL 55 °/S VERTICAL 40°/S FULL COLOR NIGHT VISION 0.001 LUX IR LED POWER 1W*2... -
Page 8: Important Notes
SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, V-TAC declares that this radio equipment type vt-11024-G PTZ Solar Camera is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address. https://www.vtacexports.com/media/ p-upload/certificates/DOC/EU/VT-11024-DOC-SOLAR%20CAMERA-N-EU.pdf...
